| SKU:
FP3578/MG

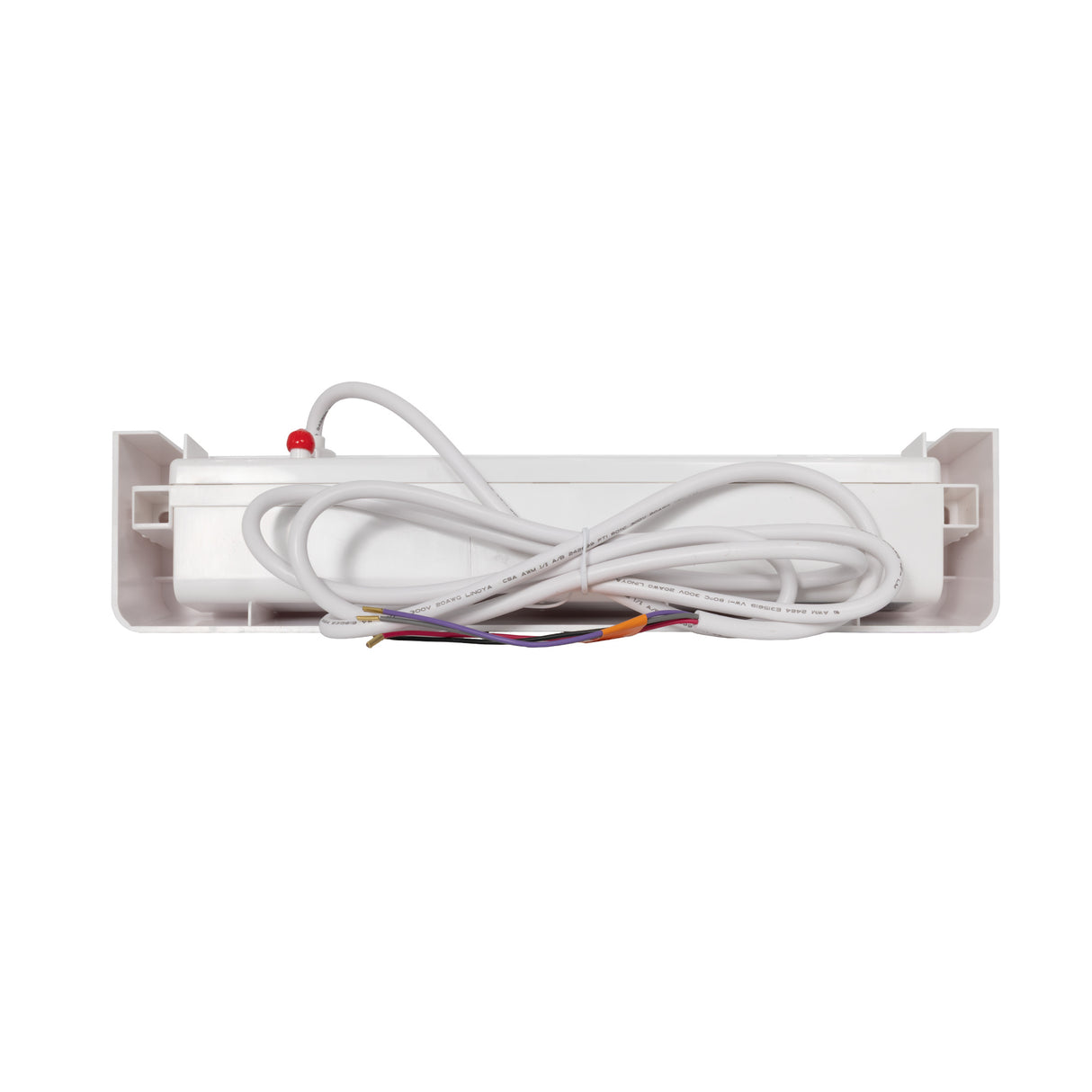

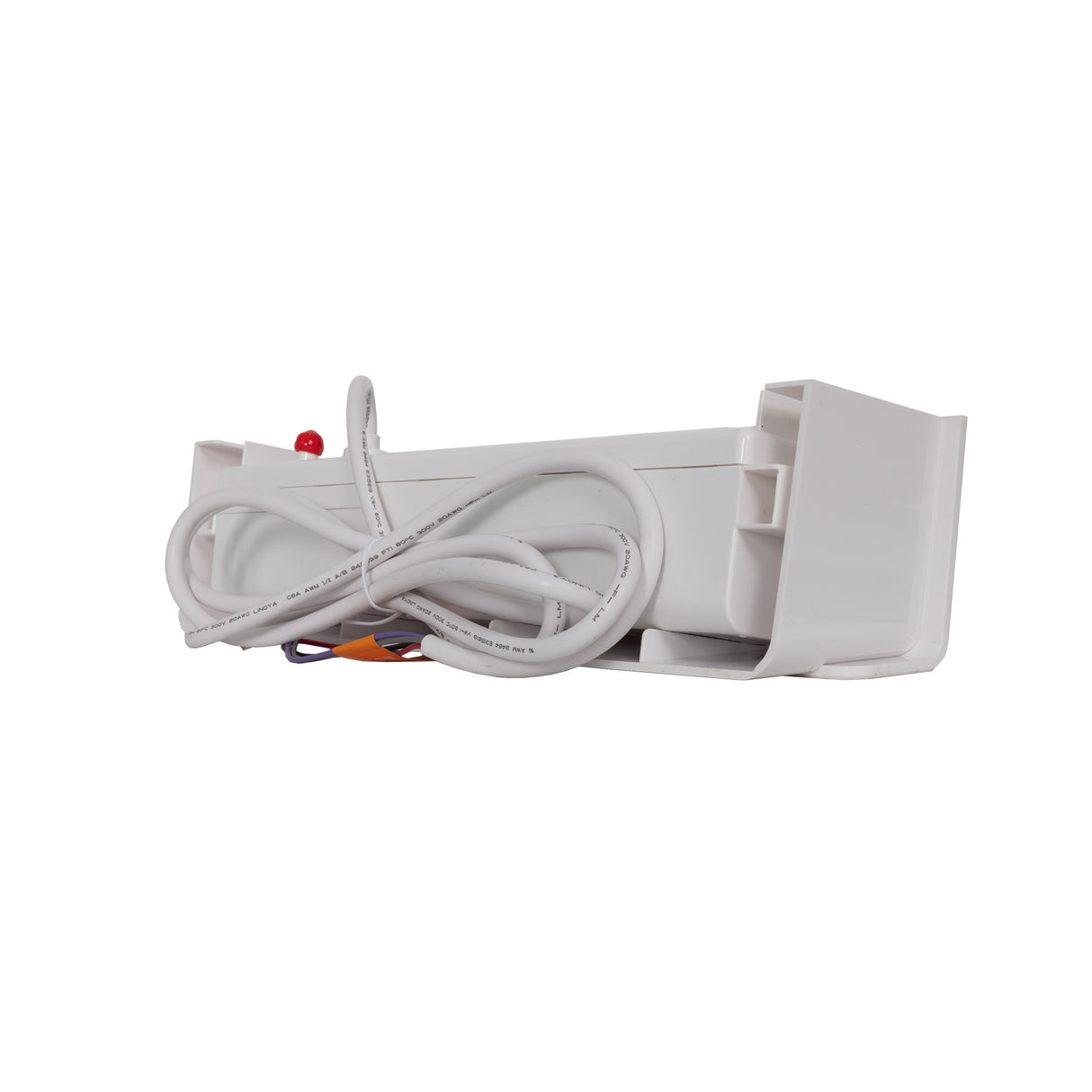

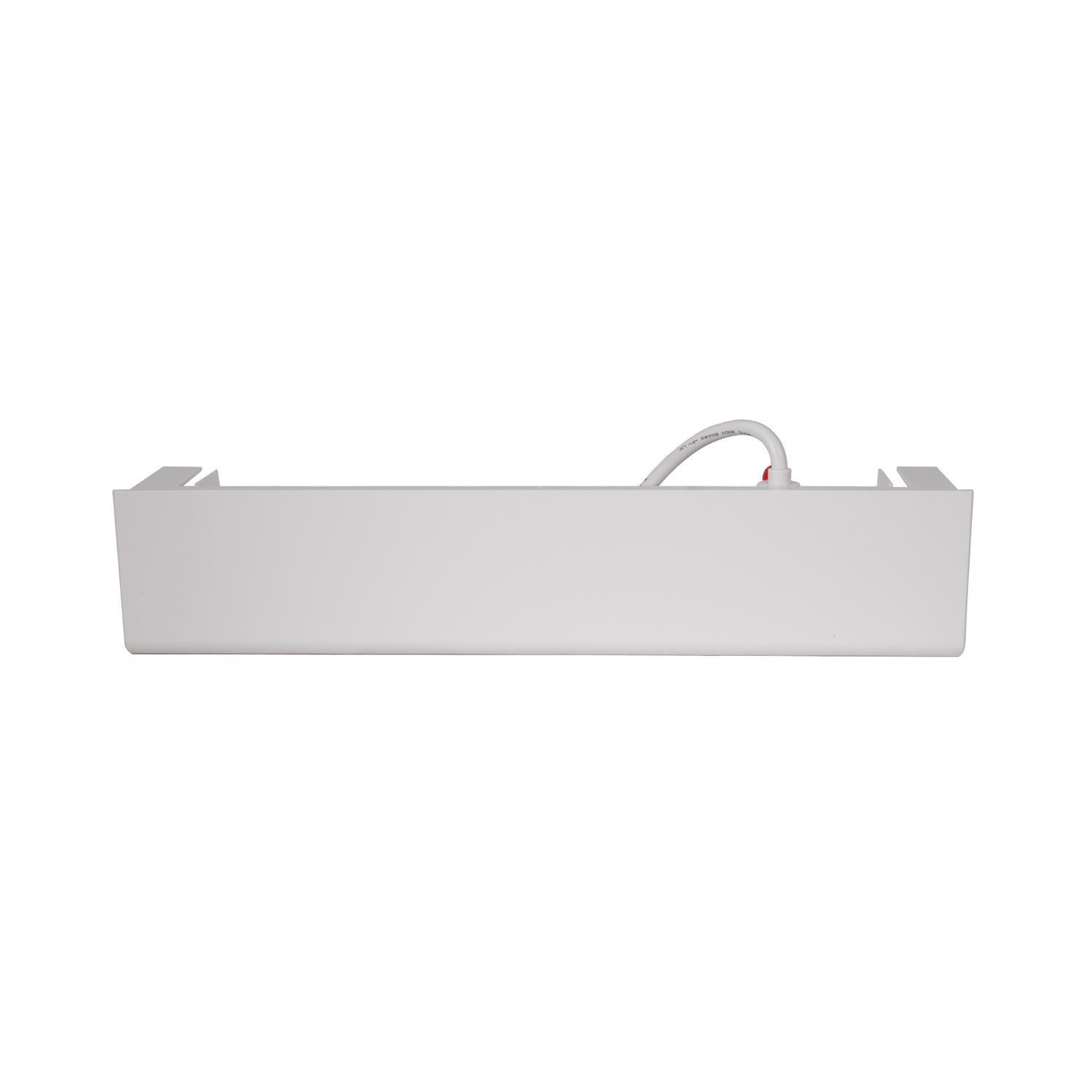

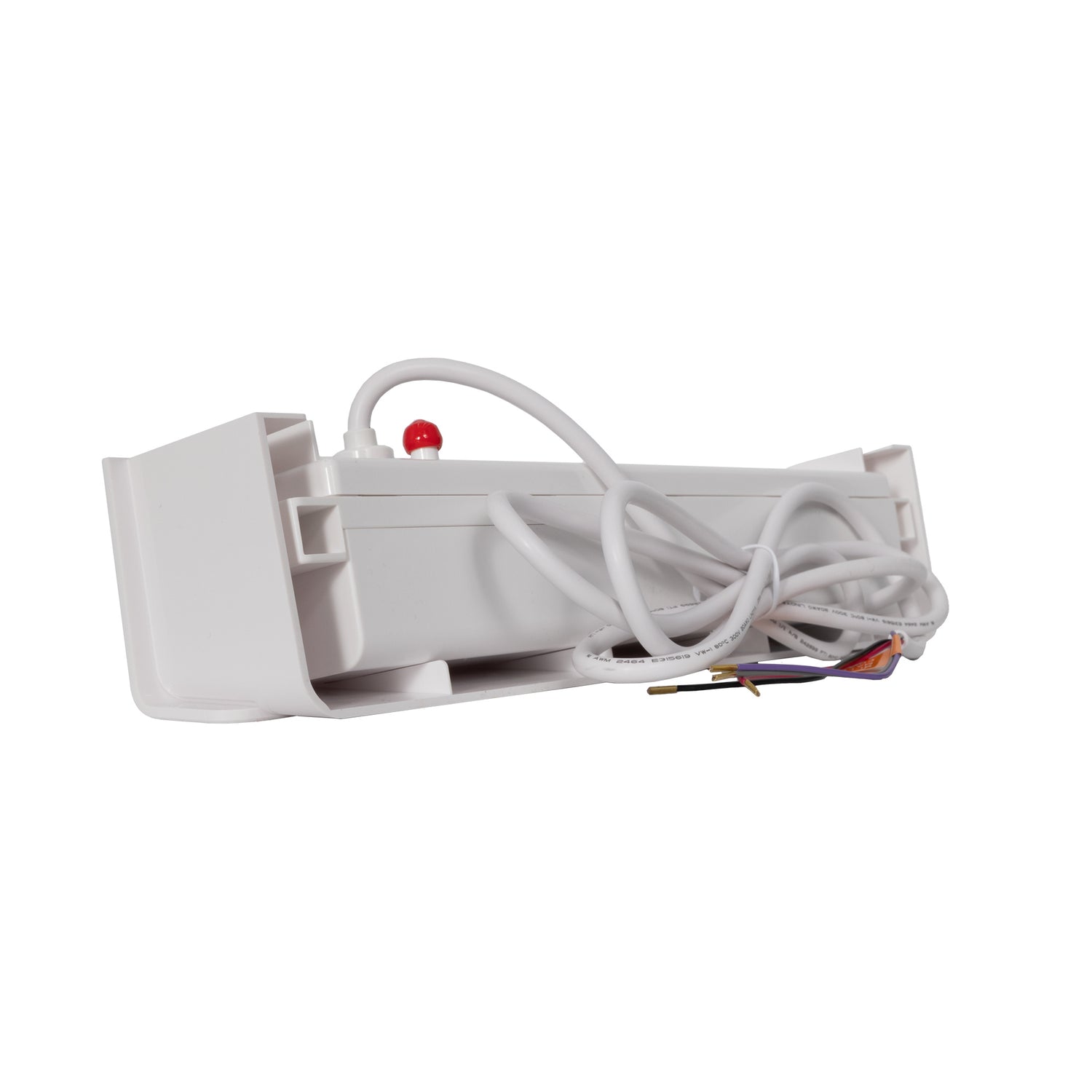

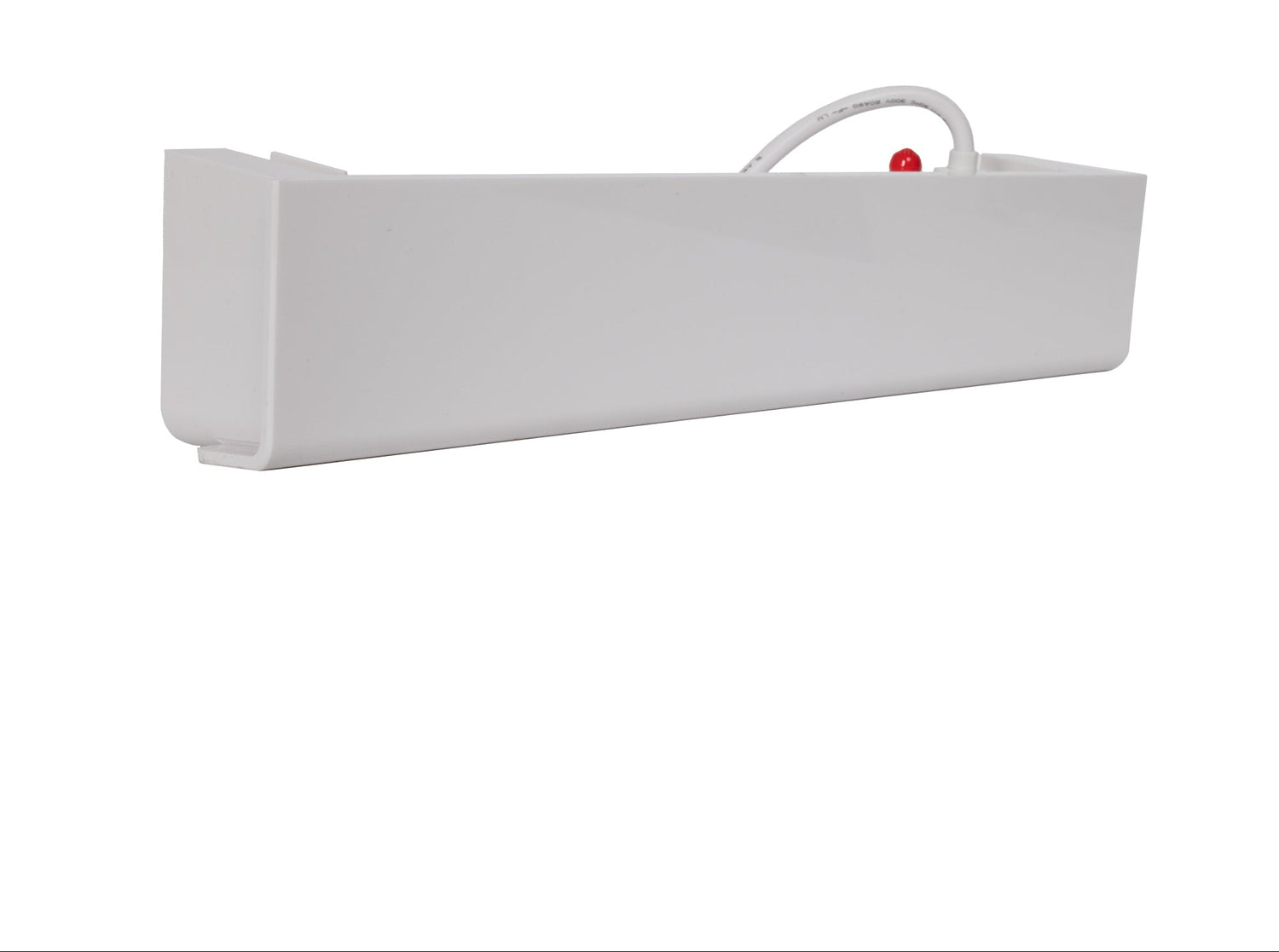

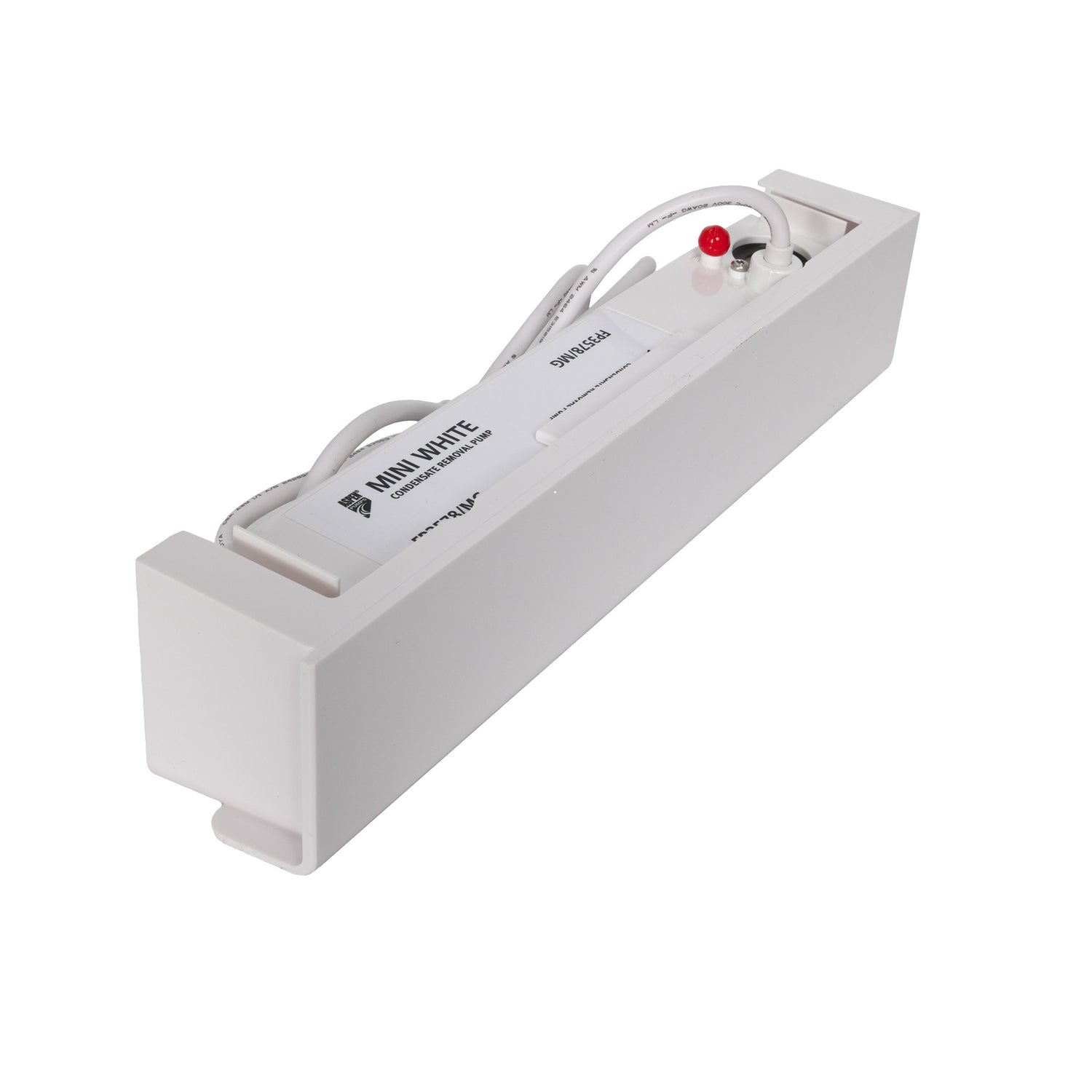

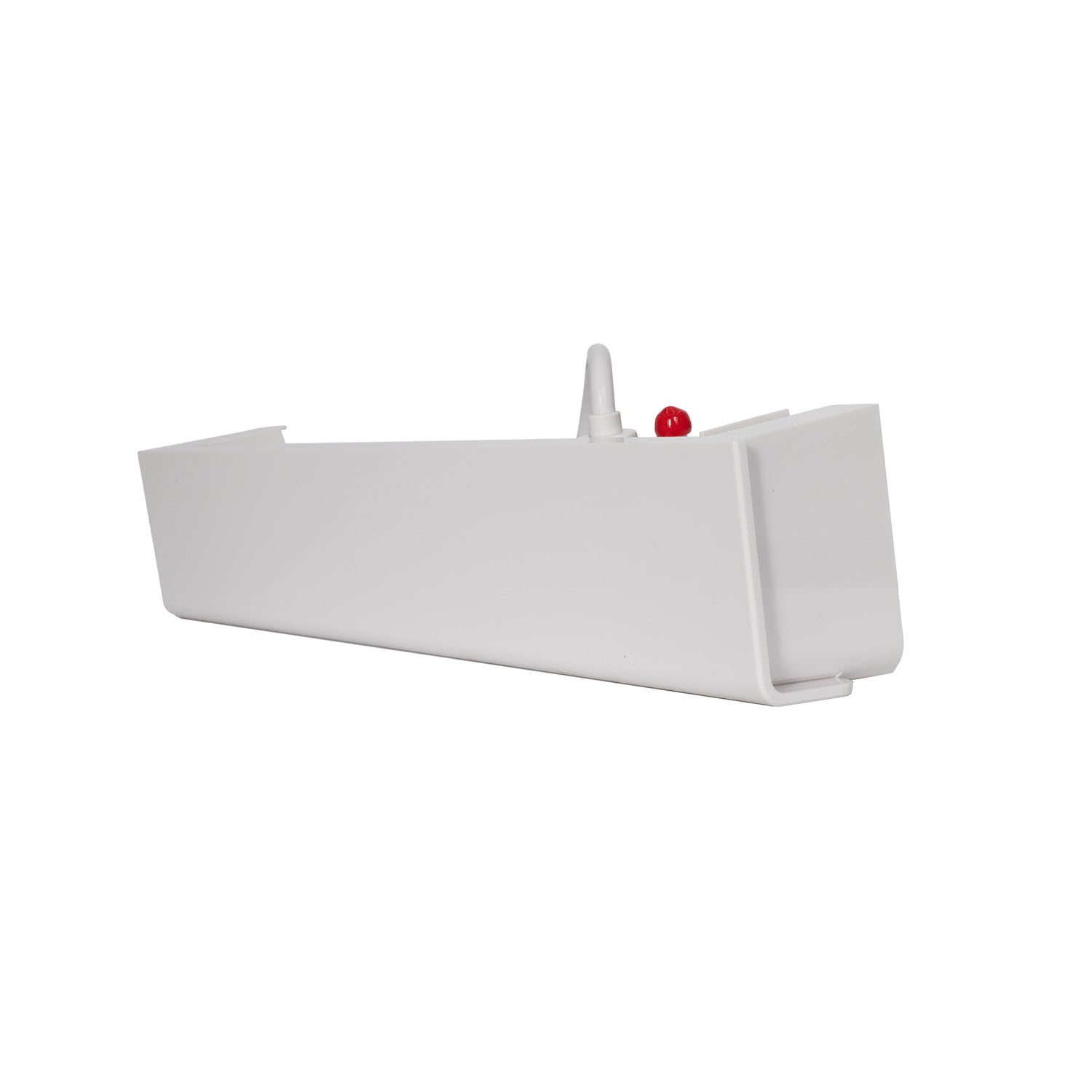

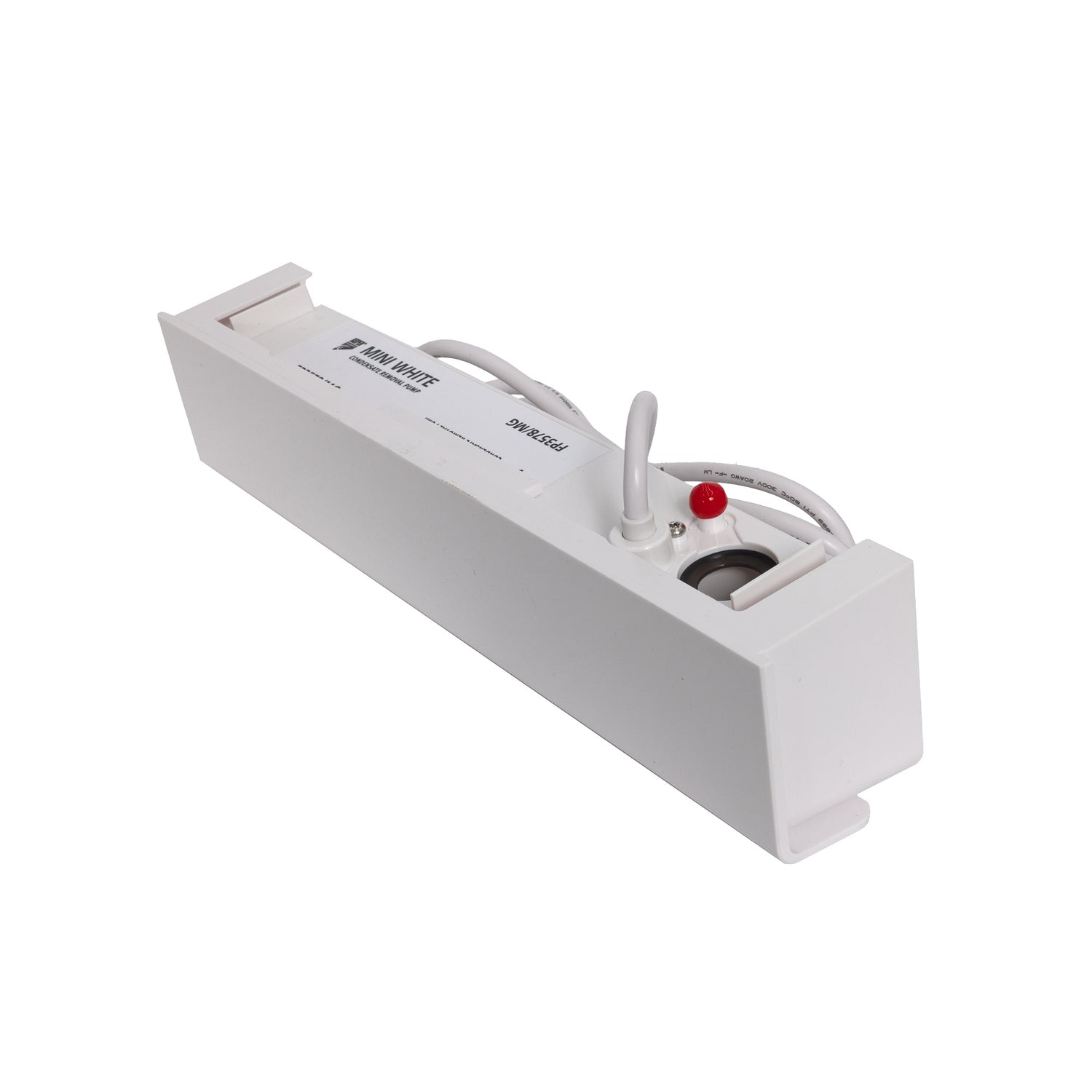

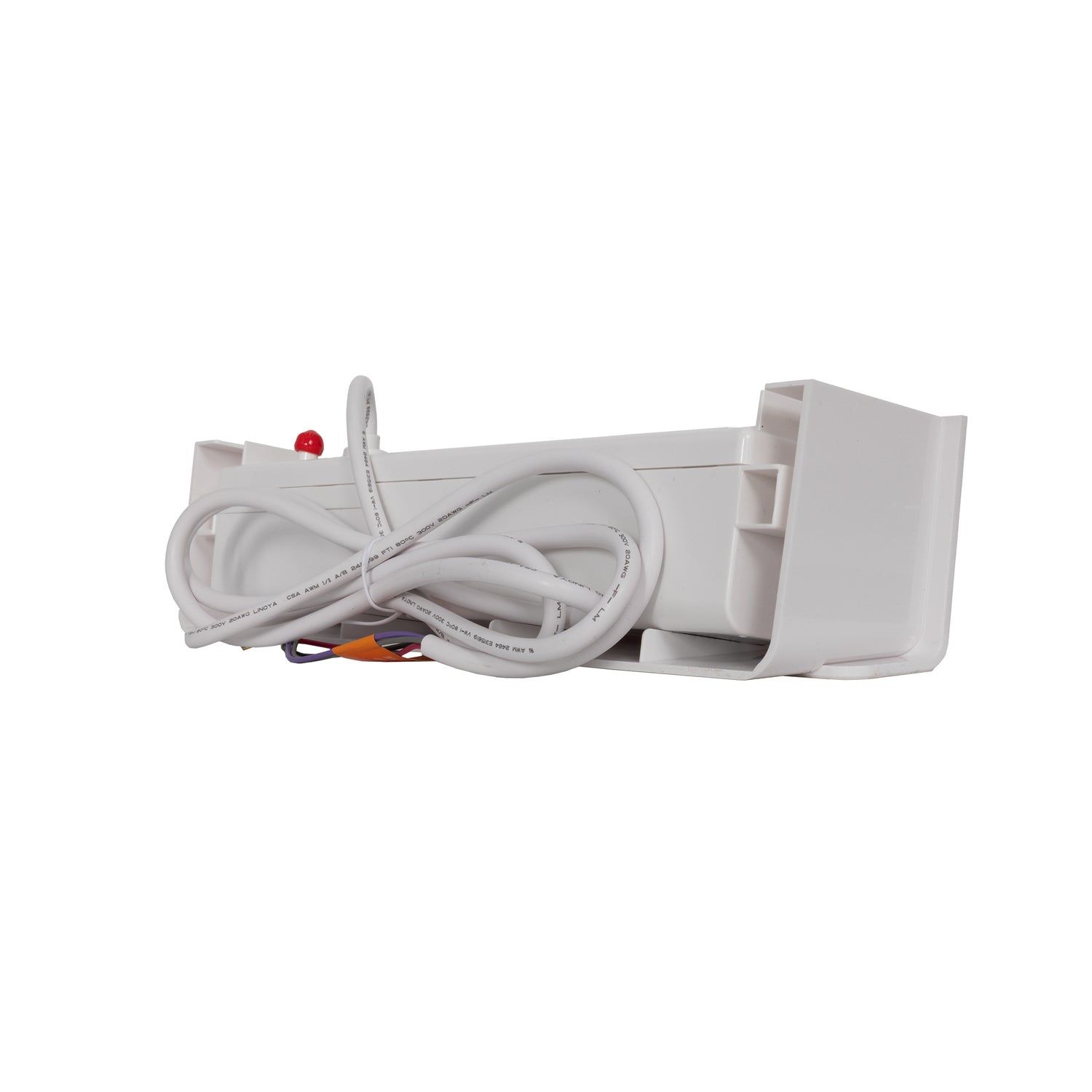

ASPEN PUMPS FP3578/MG Mini White Condensate Removal Pump
Couldn't load pickup availability
The Aspen Pumps FP3578/MG Mini White Condensate Removal Pump is a compact, stylish, and reliable condensate pump designed for high wall split air conditioning systems. Built for clean installations and neat finishes, the Mini Blanc mounts directly beneath the indoor wall unit, making it an excellent choice for retrofit projects where appearance and accessibility matter.
Designed for both residential and commercial applications, this condensate removal pump provides dependable performance while maintaining a clean, low-profile look. Its elegant white casing blends neatly beneath compatible wall-mounted units, helping installers achieve a professional finish without unnecessary visual clutter.
The Mini Blanc is engineered for fast installation and easy maintenance access, with a removable reservoir that simplifies servicing when needed. Quiet operation makes it well suited for occupied spaces such as offices, homes, retail environments, and light commercial settings.
With capacity for systems up to 26kW / 90,000 BTU/h / 7.5 tons, the Aspen Mini Blanc delivers strong performance in a compact package. Backed by Aspen reliability and a 2-year warranty, it is a practical condensate removal solution where clean design, easy maintenance, and dependable operation are key.
- Mini White Condensate Removal Pump – Compact pump designed for high wall split air conditioning systems
- Neat Retrofit Installation – Mounts directly beneath wall units for a clean, professional finish
- Elegant White Casing – Stylish design blends neatly with modern indoor units and interiors
- Ideal for Residential & Commercial Use – Suitable for homes, offices, retail spaces, and light commercial applications
- Fast Installation – Designed to help installers complete clean, efficient pump installations
- Easy Maintenance Access – Provides convenient access for routine servicing
- Removable Reservoir – Simplifies cleaning and maintenance when required
- Quiet Operation – Suitable for occupied spaces where low noise is important
- High Wall Split System Compatible – Built specifically for use with wall-mounted split air conditioning units
- 26kW / 90,000 BTU/h / 7.5 Ton Capacity – Supports a wide range of compatible air conditioning systems
- Clean Line Installation – Helps maintain a tidy appearance beneath the indoor unit
- Reliable Condensate Removal – Designed to move condensate efficiently from air conditioning systems
- Aspen Pump Reliability – Built by a trusted condensate pump manufacturer
- 2-Year Warranty – Backed by Aspen warranty coverage for added confidence
Specifications
| Specifications and Details | |
|---|---|
| Maximum Flow | 5 Gallons/hr @ 0 m Head |
| Maximum Recommended Head | 33 ft |
| Maximum Suction Lift | N/A |
| Noise Level | As Low as 21 dBA @ 3 ft |
| Duty Rating | Continuous |
| Appliance Class | Class II |
| Maximum Unit Output | 26 kW / 90,000 BTU/h / 7.5 Tons |
| Maximum Ambient Temperature | 104°F |
| Inlet Diameter | 5/8"–7/8" (Ø16–23 mm) |
| Outlet Diameter | 1/4" (Ø6 mm) |
| IP Protection Rating | IP24 |

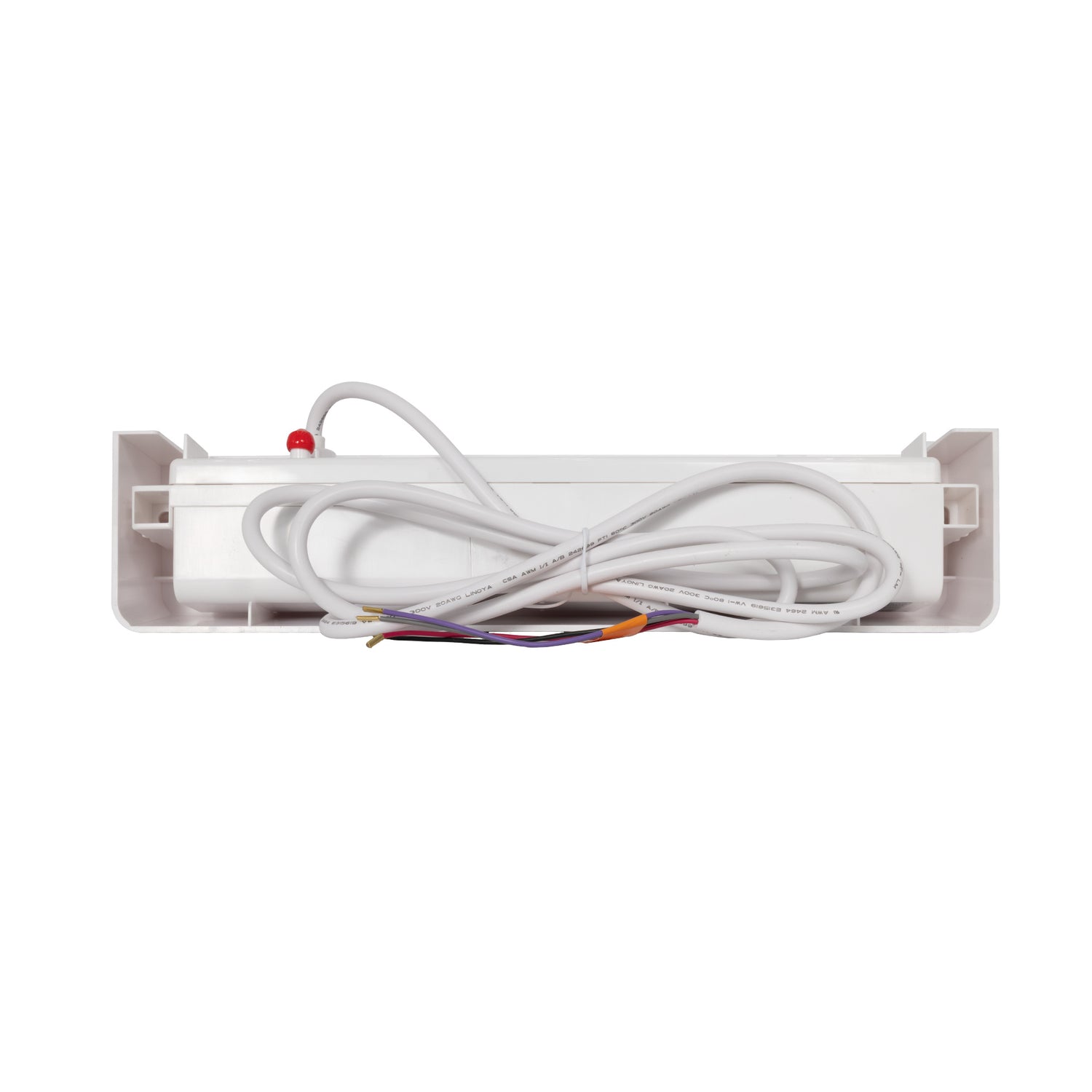

| Safety Switch | High-Level Safety Wires, N.C. Contacts, 250 VAC, 3 A Max |
| Self Priming | Yes |
| Certification Marks | cRUus, GB Approved |
| Electrical Rating | Univolt 100–250 V, 50/60 Hz, 0.16 A / 5 W |

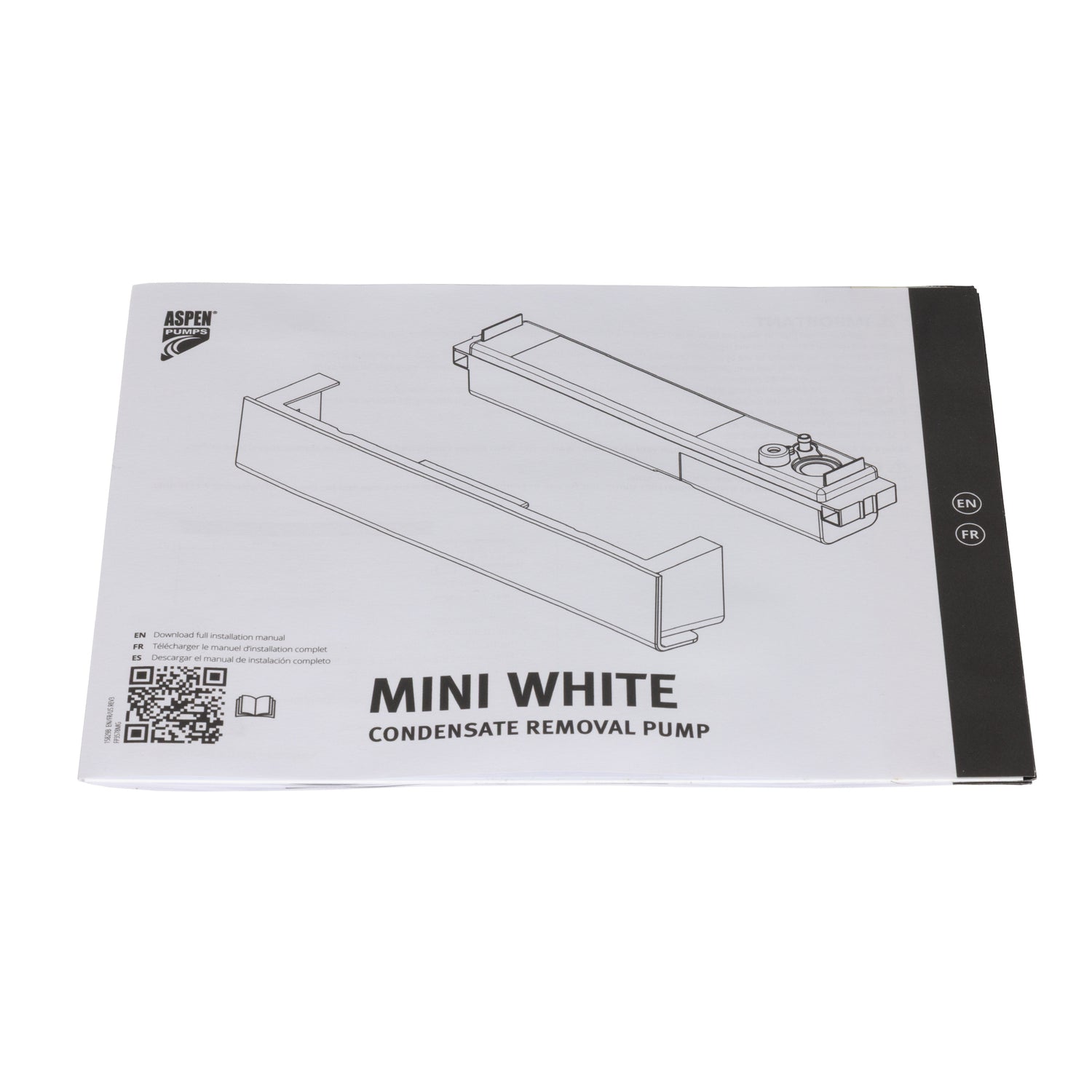

| Contents | Mini White Pump & Installation Manual |
| Country of Origin | China |
