Perfect For Timber Framing And Log Home Building
INCLUDES: 5/8†Cutting Chain (A-16570), Chain Bar Assy (133571-3), Wrench 13-17 (781204-0), Oil Supply (182229-1)
|
Capacities: | |
| Max Hole Width (Longitudinal) | 5-1/8" (130 mm) |
| Max Hole Width (Transverse) | 1-1/4" (31.5 mm) |
| Max Hole Depth | 6-1/8" (155 mm) |
| No Load Speed | 3,200 RPM |
| AMPS (120V) | 10.5 A |
| Vibration Level | 2.5 m/s2 |
| Noise Level | 90 dB(A) |
| Dimensions | 20-1/8" x 11-3/4" x 20-1/4" (512 mm x 298 mm x 513 mm) |
| Net Weight | 38.1 lbs (17.3 kg) |
Cuts lap joints up to 5-1/8"
Notches or cuts holes in thick wood stock quickly, cleanly and accurately
Quick horizontal chain lever for widening holes
Base mounts onto a max. 12" beam
Large adjustable vise for attaching firmly onto logs
Specifications
| Power Source | Electric |
|---|---|
| Product Type | Chain Mortiser |

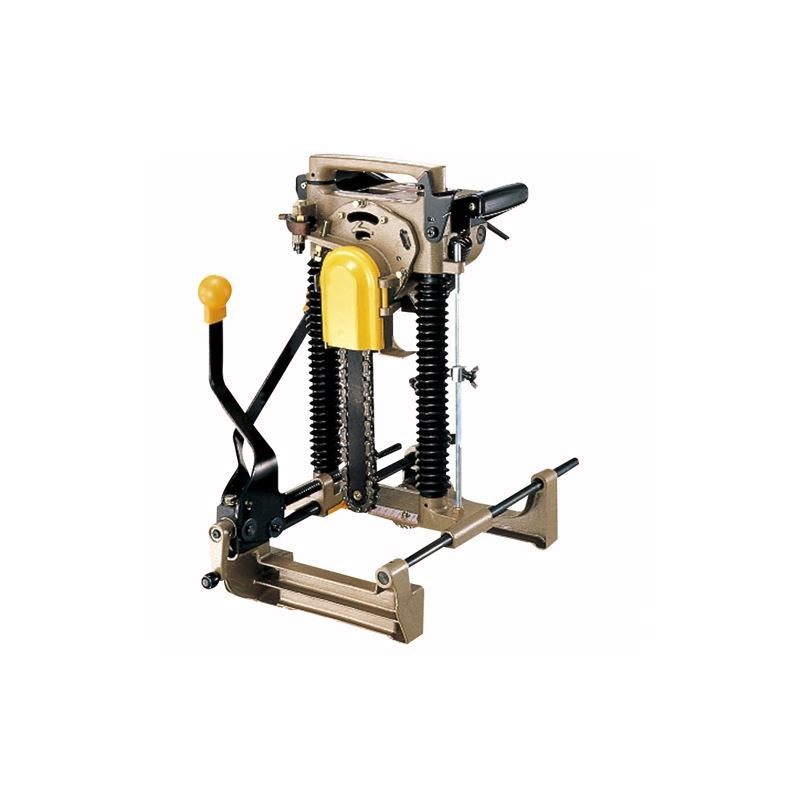

Makita 7104L Chain Mortiser
Perfect For Timber Framing And Log Home Building
INCLUDES: 5/8†Cutting Chain (A-16570), Chain Bar Assy (133571-3), Wrench 13-17 (781204-0), Oil Supply (182229-1)
|
Capacities: | |
| Max Hole Width (Longitudinal) | 5-1/8" (130 mm) |
| Max Hole Width (Transverse) | 1-1/4" (31.5 mm) |
| Max Hole Depth | 6-1/8" (155 mm) |
| No Load Speed | 3,200 RPM |
| AMPS (120V) | 10.5 A |
| Vibration Level | 2.5 m/s2 |
| Noise Level | 90 dB(A) |
| Dimensions | 20-1/8" x 11-3/4" x 20-1/4" (512 mm x 298 mm x 513 mm) |
| Net Weight | 38.1 lbs (17.3 kg) |
