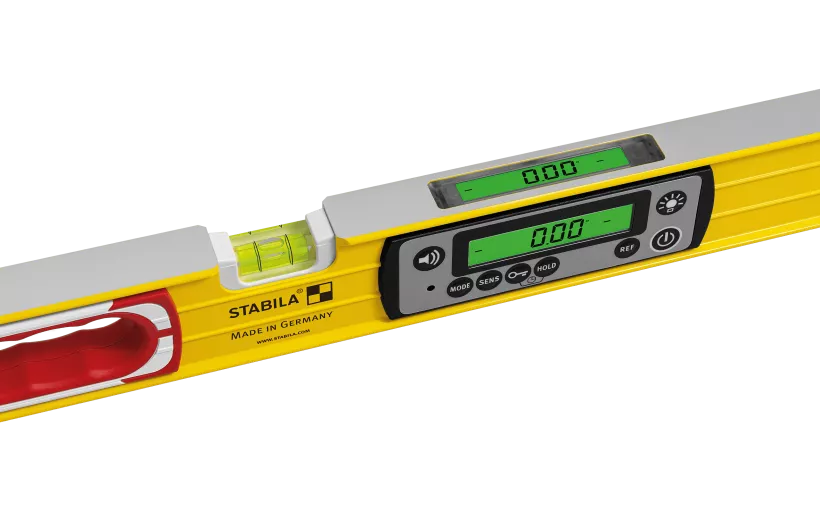

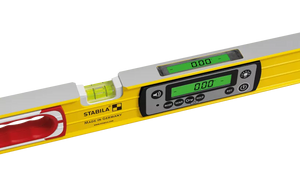

STABILA 39577 TECH 196 DL Digital Spirit Level 72in
STABILA 39577 TECH 196 DL Digital Spirit Level 72in is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Rugged. Waterproof. Calibration-free. Made for extreme challenges.
Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.
ULTRA-PROTECT – optimum protection against dust and water in accordance with IP 67.
Two digital displays with optimal read-out in any application situation.
Acoustic guidance with two different audible signals.
CAL-FREE – calibration-free electronics, even after falling or being exposed to temperature fluctuations.
Instant measurement.
Electronic spirit level with two digital displays for instant measurement of inclines, slopes and angles.
ULTRA-PROTECT: Optimum protection against dust and water in accordance with IP 67 – the spirit level can be temporarily submerged.
Optimal read-out: Two digital displays, illuminated at the press of a button.
Acoustic guidance: For quick alignment of elements without looking at the spirit level – with two different audible signals.
CAL-FREE: In daily use, it is not necessary to calibrate the electronics – even after falling or being exposed to temperature fluctuations.
The digital display rotates to the reverse position.
REF-MODE: Take, save and transfer an angle measurement to other elements.
KEY-LOCK: Keyboard lock to prevent accidental input.
Display modes: °, %, mm/m, in/ft – decimal and as a fraction.
ROOF-PITCH mode (in/ft) to quickly determine the roof pitch.
Long operating time: Up to 400 hours.
Includes bag for safe transport.
Specifications
| Specifications and Details | |
|---|---|
| Measurement accuracy in normal position | ± 1/32 in @ 72 in |
| Measurement accuracy in reverse position | ± 1/32 in @ 72 in |
| Accuracy with electronic inclination measurement at 0° and 90° | ± 0.05° |
| Accuracy with electronic inclination measurement at 1° to 89° | ± 0.10° |
| Measuring modes | °, %, mm/m, inch/ft |
| Number of measuring surfaces | 2 |
| End caps | Removable / Wall Grips / Shock Absorbing |
| Profile | Rectangular profile with ribs |
| Protection rating | IP 67 |
