| SKU:
86 06 250 SBA

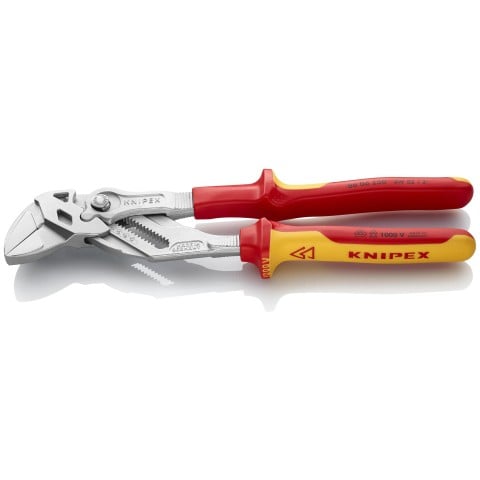

KNIPEX 86 06 250 SBA 10" Pliers Wrench-1000V Insulated
KNIPEX 86 06 250 SBA 10" Pliers Wrench-1000V Insulated is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

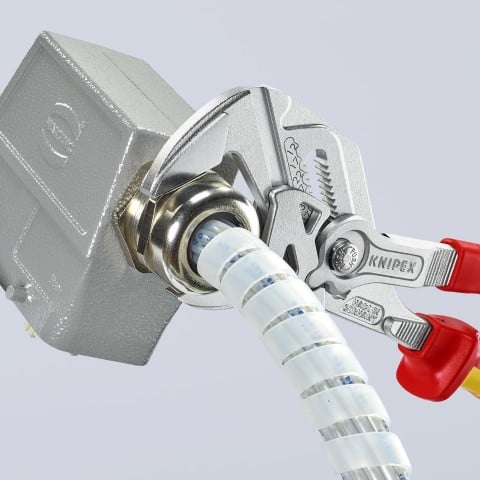

The KNIPEX 86 06 250 SBA 10" Pliers Wrench combines the functionality of a complete inch and metric open-end wrench set up to 2" (52 mm) in a single, versatile tool. Featuring 1000V insulation for electrical safety, it incorporates parallel jaws with zero backlash surface pressure to protect sensitive components and plated fittings from damage. The laser-etched dual-scale (metric and inch) enables precise opening adjustment before engaging the workpiece, with 19 quick-touch adjustment positions for seamless operation. Smooth jaws work directly on chrome without marring, while the reliable hinge bolt catch prevents unintentional slipping. Ideal for gripping, holding, pressing, and bending applications, this adjustable tightening tool streamlines your workflow and reduces the need for multiple expensive wrenches in electrical and general maintenance work.
- Replaces a full set of inch and metric open end wrenches up to 2" (52 mm)
- Smooth jaws for damage free installation of plated fittings - working directly on chrome
- Adjustable tightening tool
- Excellent for gripping, holding, pressing and bending applications
- Zero backlash jaw surface pressure prevents damage to edges of sensitive components
- 19 adjustment positions at the touch of a button directly on the workpiece
- Laser-etched scale allows the wrench opening to be set before gripping onto workpiece. Laser marked adjustment scale to set the opening width before use - metric and inch markings
- Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size
- Reliable catching of the hinge bolt – no unintentional shifting
- 1000V multi-component grips, VDE-tested
- Lever transmission greater than 10-1 for strong gripping power
- The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle
- Chrome vanadium electric steel; forged, oil-hardened
Specifications
| Specifications | |
|---|---|
| Part Number | 86 06 250 US |
| UPC | 843221023102 |
| Country of Origin | Germany |
| Length | 10" |
| Width | 2 7/8" |
| Height | 1 1/8" |
| Weight | 1.157 lbs. |
| 1000 Volt Insulated | Yes |
| Material Type | Chrome vanadium electric steel, forged, oil-hardened |
| Handle Type | 1000V Insulated, multi-component, VDE |
| Gripping Surface | Smooth |
| Surface Finish | Chrome Plated |
| Joint Type | Box-joint |
| Number of Adjustment Positions | 19 |
| Tip Thickness | 5/16" |
| Max Jaw Opening - Hex | 2" |
| Max Jaw Opening - Working Capacity | 2" |
| Color | Red/Yellow |
| Reach | does not contain SVHC |
| RoHS | not applicable |
KNIPEX 86 06 250 SBA 10" Pliers Wrench-1000V Insulated
The KNIPEX 86 06 250 SBA 10" Pliers Wrench combines the functionality of a complete inch and metric open-end wrench set up to 2" (52 mm) in a single, versatile tool. Featuring 1000V insulation for electrical safety, it incorporates parallel jaws with zero backlash surface pressure to protect sensitive components and plated fittings from damage. The laser-etched dual-scale (metric and inch) enables precise opening adjustment before engaging the workpiece, with 19 quick-touch adjustment positions for seamless operation. Smooth jaws work directly on chrome without marring, while the reliable hinge bolt catch prevents unintentional slipping. Ideal for gripping, holding, pressing, and bending applications, this adjustable tightening tool streamlines your workflow and reduces the need for multiple expensive wrenches in electrical and general maintenance work.
