| SKU:
KING-KC-10HCX
KING KC-10HCX 10" Cabinet Table Saw
Couldn't load pickup availability

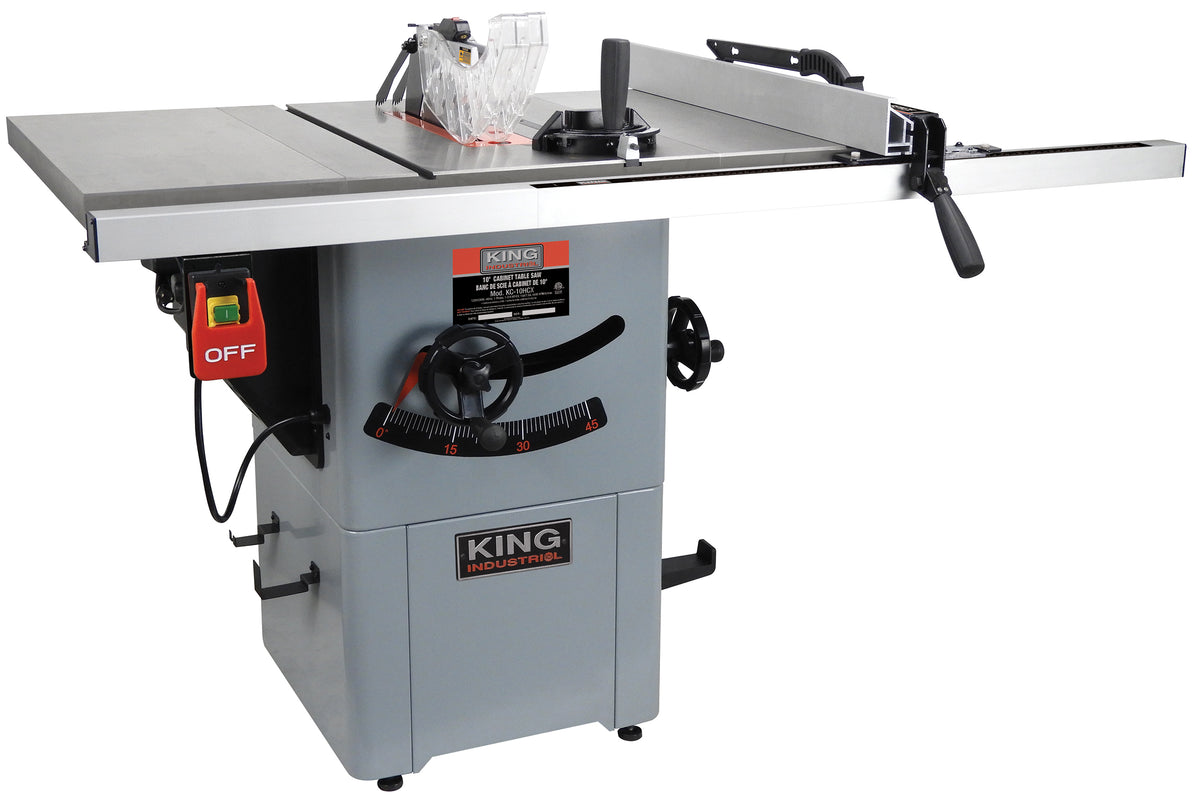

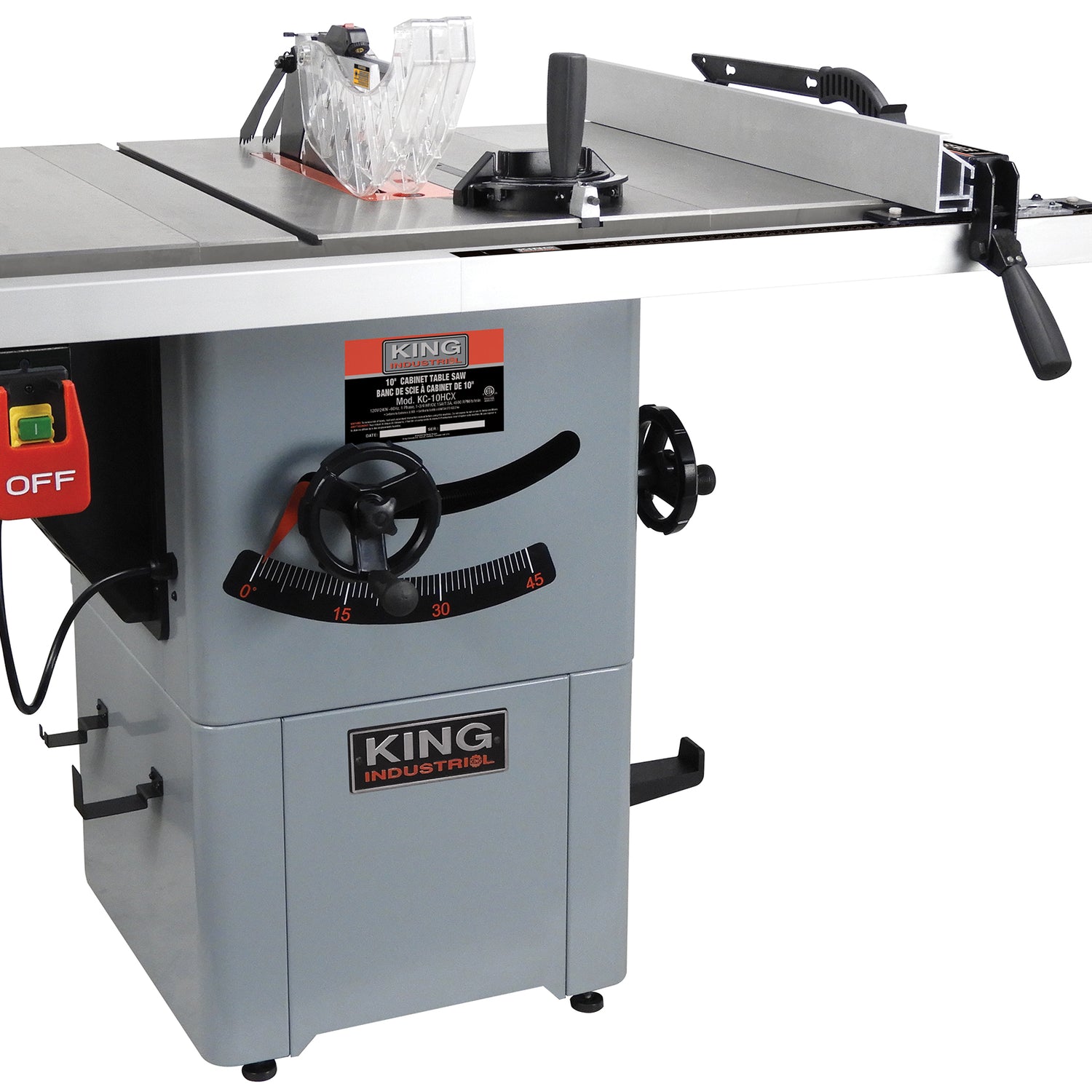

KING KC-10HCX 10" Cabinet Table Saw
The KING KC-10HCX is a 10" cabinet table saw driven by a 1.75 HP belt-driven dual-voltage motor. The motor is prewired for 120V operation and supports 120V/240V use, giving the saw electrical options for many shop setups.
Work surface precision comes from a ground cast-iron table with cast-iron extension tables that measure a total of 44” x 27”. The saw includes a Duo-fence with horizontal and vertical position anodized aluminum fence, T-slots for a miter gauge and a beveled front edge. It offers a 30” rip capacity.
Safety and dust control are integrated: a riving knife blade guard system with anti-kickback fingers and a line interruption safety switch with reset help manage cutting hazards, and an integrated dust collection system routes debris through a 4” dust chute.
The KC-10HCX ships with a 10" x 40 tooth carbide-tipped saw blade and essential accessories including a cast-aluminum miter gauge, push stick, standard table insert, blade wrench, open end wrench and adjustment hex keys. Assembled and package dimensions are provided for planning shop space and delivery.
Key specifications
- Motor: 1.75 HP, 15 Amp. @ 120V, 7.5 Amp. @ 240V
- Voltage: 120V/240V
- Rip capacity: 30”
- Blade diameter: 10"
- Assembled dimensions (LxWxH)/weight: 61” x 39” x 42” / 236 lbs
- 1.75 HP belt-driven motor – Dual-voltage motor (120V/240V) prewired for 120V to match common shop circuits.
- 10" blade with 40 teeth – Includes a 10" x 40 tooth carbide-tipped saw blade for general-purpose cutting out of the box.
- 30" rip capacity – Supports ripping wider stock without additional jigs or setup.
- Precision cast-iron table – Ground cast-iron table and cast-iron extensions provide a stable, flat work surface measuring a total of 44” x 27”.
- Duo-fence with anodized aluminum fence – Horizontal and vertical fence positions increase layout and cutting options for different cuts.

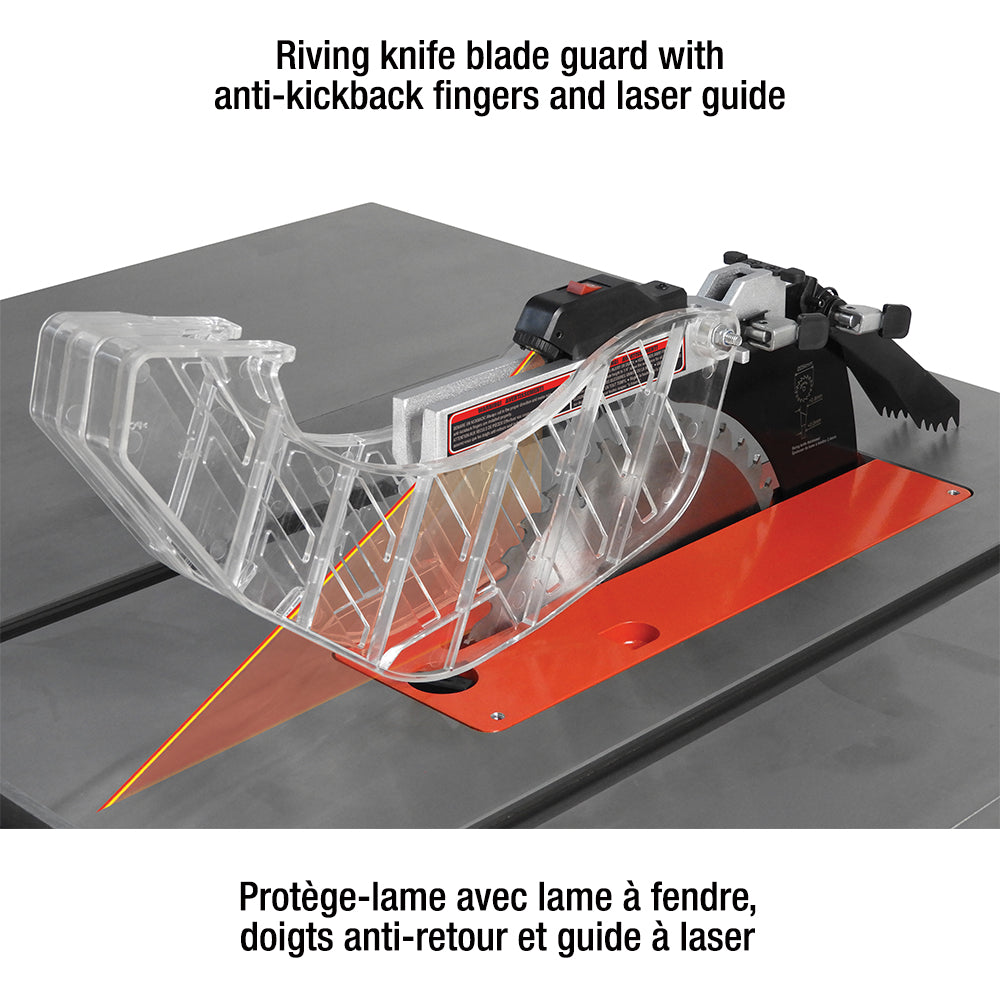

- Riving knife and anti-kickback fingers – Riving knife blade guard system with anti-kickback fingers helps reduce the risk of kickback during cuts.
- Integrated dust collection – 4” dust chute collects sawdust to help keep the work area cleaner and facilitate hookup to a dust extractor.

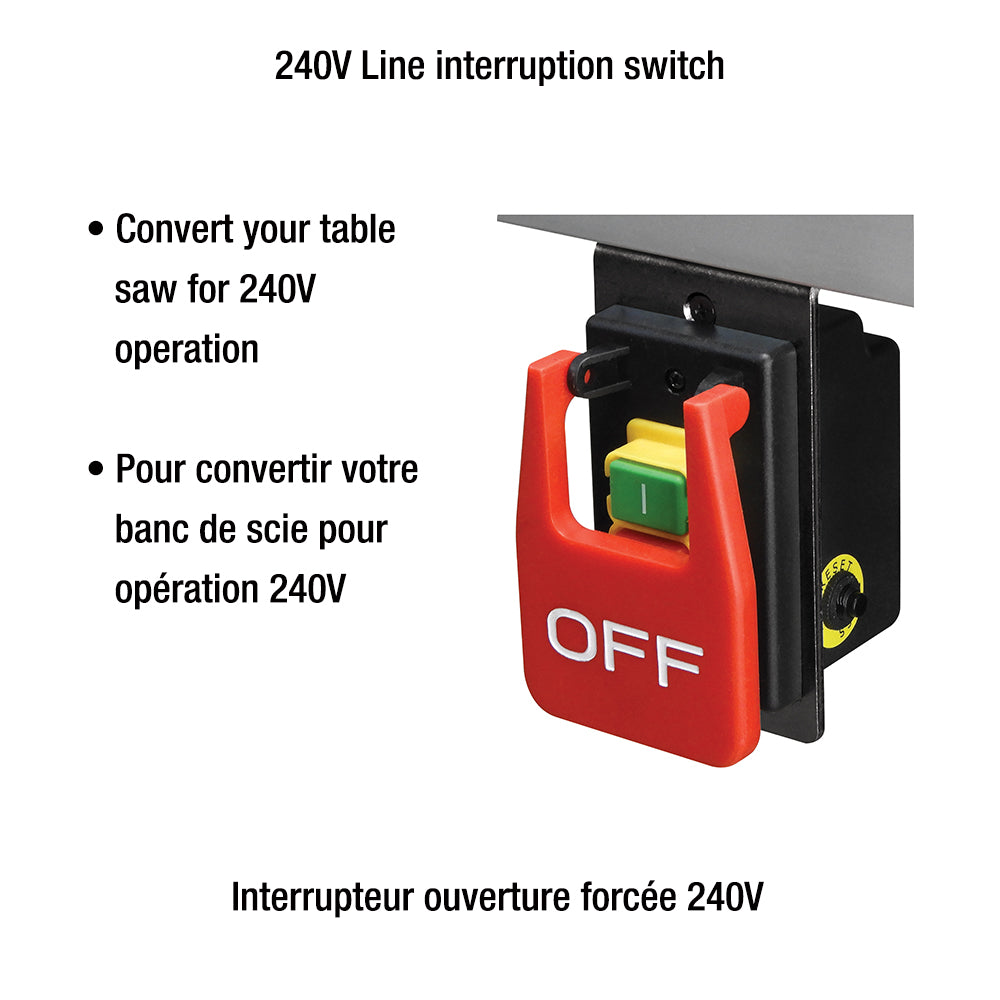

- Safety switch – Line interruption safety switch with reset provides a clear off/reset control for the machine.
- T-slots and miter gauge – Table T-slots accept a miter gauge for crosscutting and angled cuts; a cast-aluminum miter gauge is included.
- Included accessories – Comes with push stick, standard table insert, blade wrench, open end wrench and adjustment hex keys for initial setup and safe operation.
Specifications
| Specifications and Details | |
|---|---|
| Prewired | 120V |
| Rip capacity | 30” |
| Line interruption safety switch | With reset |
| Table size with extensions | 44” x 27” |
| Riving knife blade guard system | With anti-kickback fingers |
| Table features | T slots for miter gauge and beveled front edge |
| Integrated dust collection | 4” dust chute |
| Includes | 10” x 40 tooth carbide tipped saw blade, cast-aluminum miter gauge, Duo-fence with horizontal and vertical position anodized aluminum fence, push stick, standard table insert, blade wrench, open end wrench and adjustment hex. keys |
| Blade diameter | 10" |
| Blade tilts | Left |
| Depth of cut at 45? | 2-3/16” |
| Depth of cut at 90? | 3-1/8” |
| Diameter of arbor | 5/8” |
| Arbor speed | 4,500 RPM |
| Motor | 1.75 HP, 15 Amp. @ 120V, 7.5 Amp. @ 240V |
| Voltage | 120V/240V |
| Phase | 1 phase |
| Frequency | 60 Hz |
| Assembled dimensions (LxWxH)/weight | 61” x 39” x 42” / 236 lbs |
| Package dimensions (LxWxH)/weight | 45-1/4” x 30-1/2” x 22-3/4” / 244 lbs |
