| SKU:
KING-KC-12RAS
KING KC-12RAS 12'' Radial Arm Saw
Couldn't load pickup availability
KING KC-12RAS 12'' Radial Arm Saw

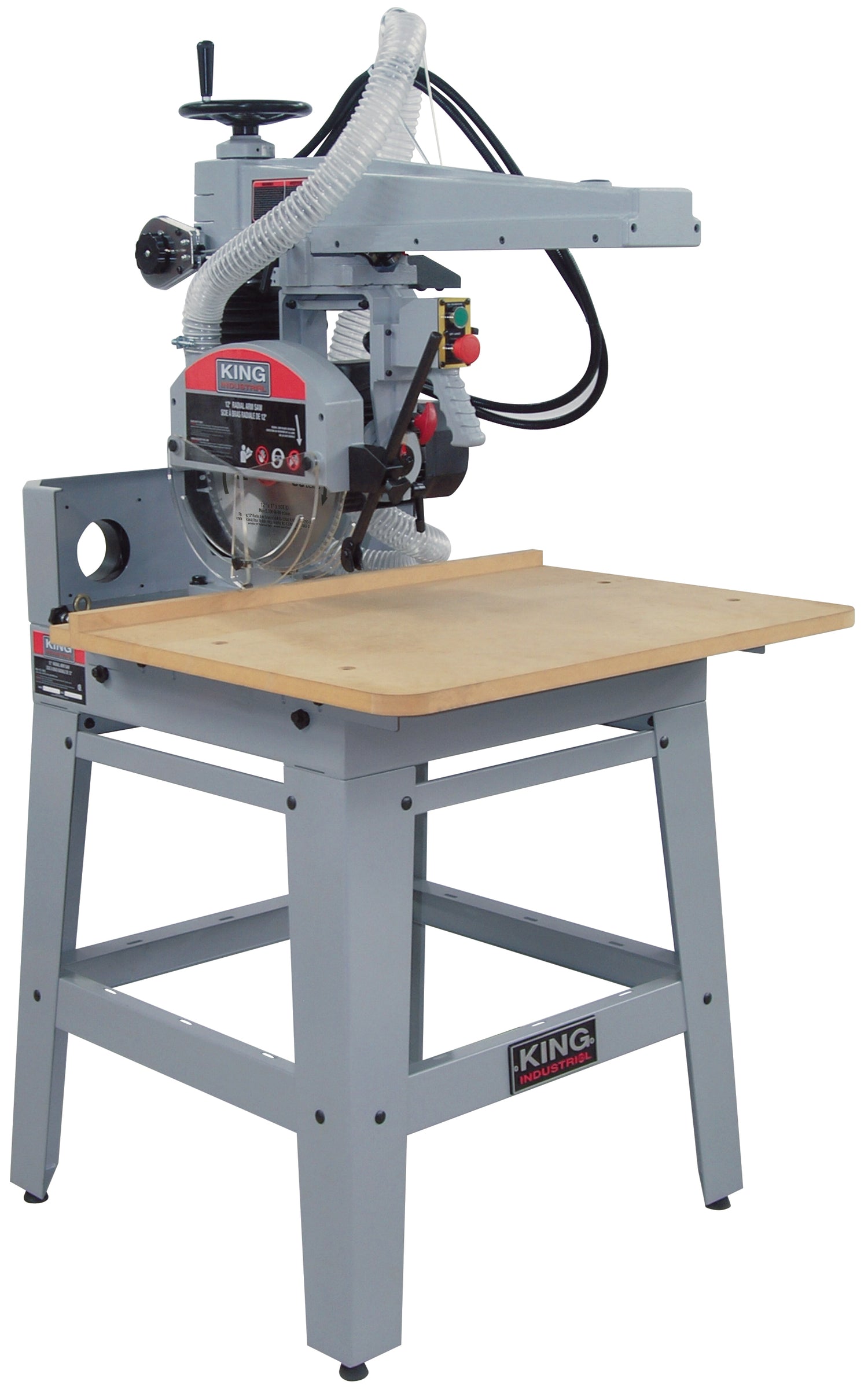

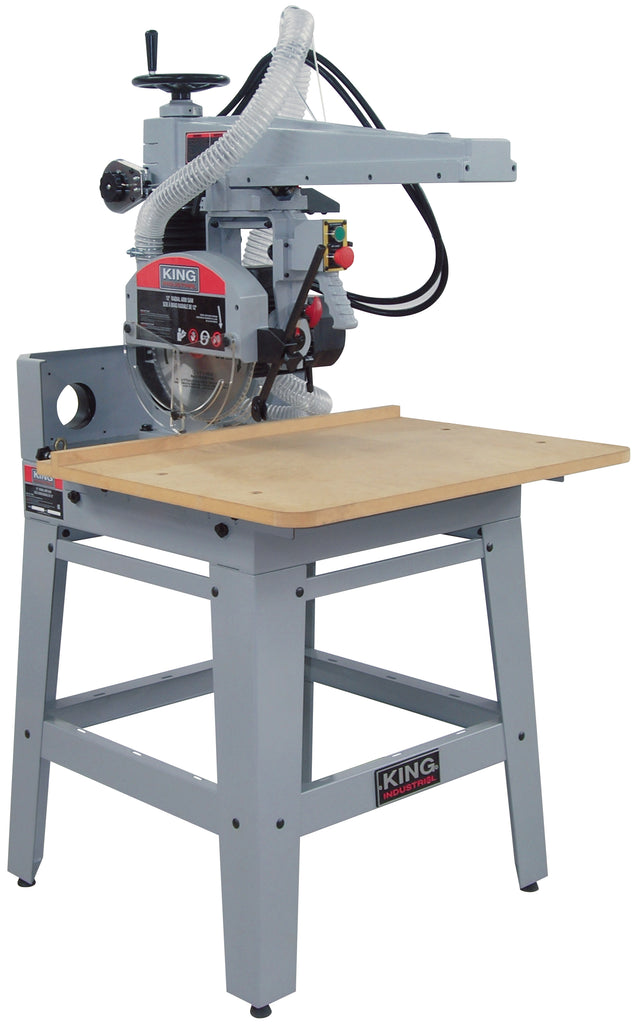

The KING KC-12RAS 12" Radial Arm Saw is an industrial-rated radial arm saw powered by a 2 HP, 220V single phase motor. It is designed for cutting operations that require repeatable positioning and hands-on control in a workshop setting.
This radial arm saw can crosscut, bevel cut, miter cut and swivel to a rip position to cut down panels precisely and accurately. Precision indexing with positive stops at 22.5˚, 45˚ and 90˚ provides defined positions for common bevel cuts.
Built-in safety and dust-management features include an automatic built-in mechanical blade brake system, a magnetic safety switch with keyed lock, and two 4" dust chutes for dust-collector hookup. The saw ships with a 12" negative rake blade, adjustment wrenches and hex keys, and an oversized MDF table top for support of larger workpieces.
An adjustable return spring retracts the motor and carriage for controlled return of the cutting head. The saw’s documented capacities and dimensions are provided below to assist with selection and shop planning.
Key specifications
- Motor: 2 HP, 8.5 Amp
- Voltage: 220V, 1 phase, 60 Hz
- Blade Diameter: 12" -
- Maximum Crosscut Capacity: 16"
- Maximum rip capacity: 26-3/8"
- 2 HP, 220V single phase motor – Delivers the rated electrical power and current specification for cutting operations (2 HP, 8.5 Amp.).

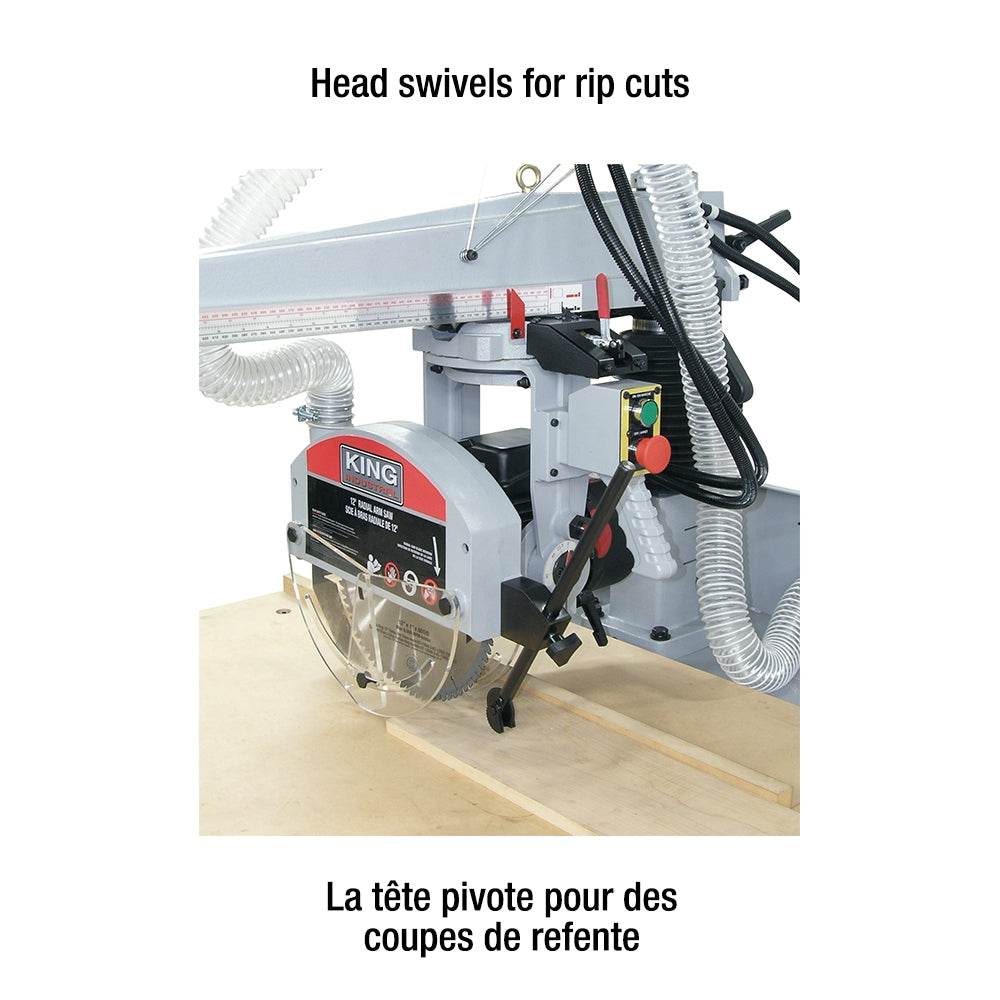

- Multiple cutting modes – Crosscut, bevel, miter and swivel to a rip position for panel sizing and common workshop cuts.

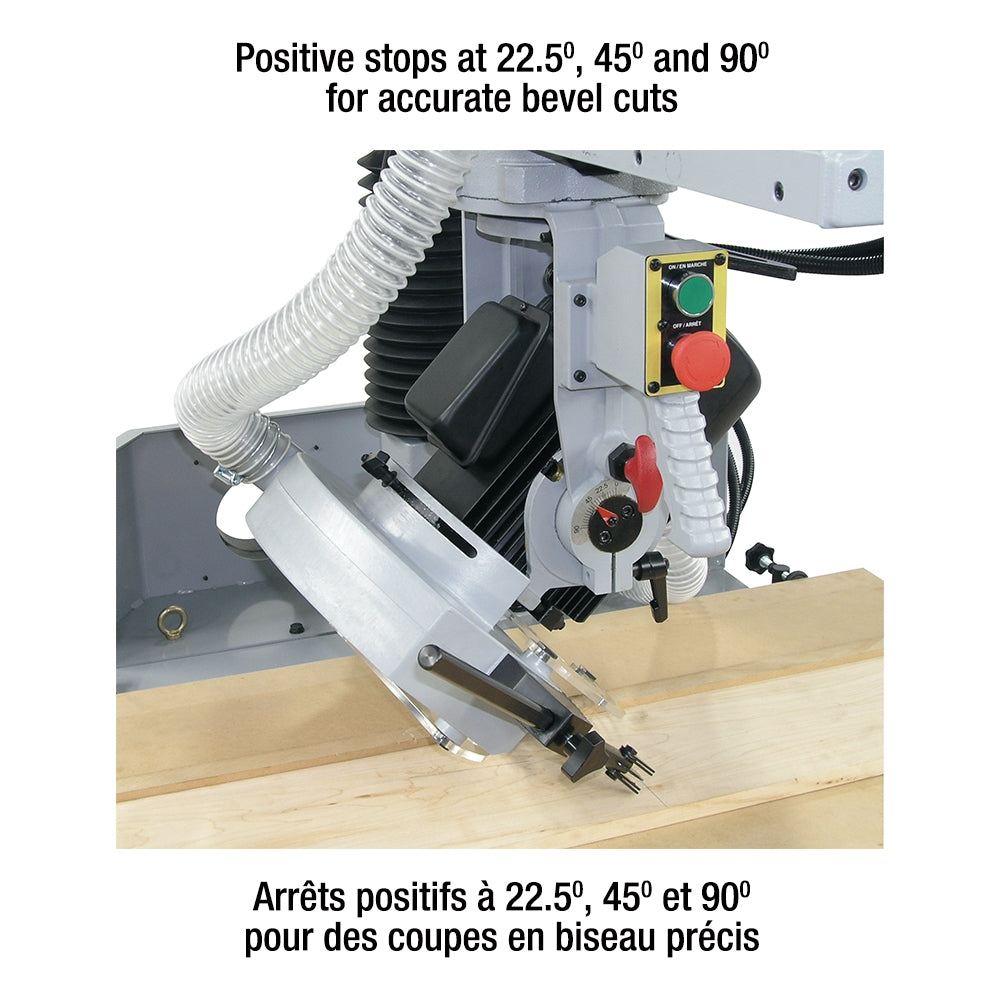

- Precision indexing with positive stops – Positive stops at 22.5˚, 45˚ and 90˚ for repeatable and accurate bevel positioning.
- Automatic mechanical blade brake – Built-in brake reduces blade coast-down time after shutoff for safer operation.
- Magnetic safety switch with keyed lock – Prevents unauthorized operation by using a keyed lock on the switch.
- Two 4" dust chutes – Provides dual ports for dust-collector hookup to help manage sawdust.
- Includes blade and setup tools – Ships with a 12" negative rake blade, adjustment wrenches and hex keys for initial setup.
- Oversized MDF table top – Larger table surface supports bigger panels and workpieces during cutting.

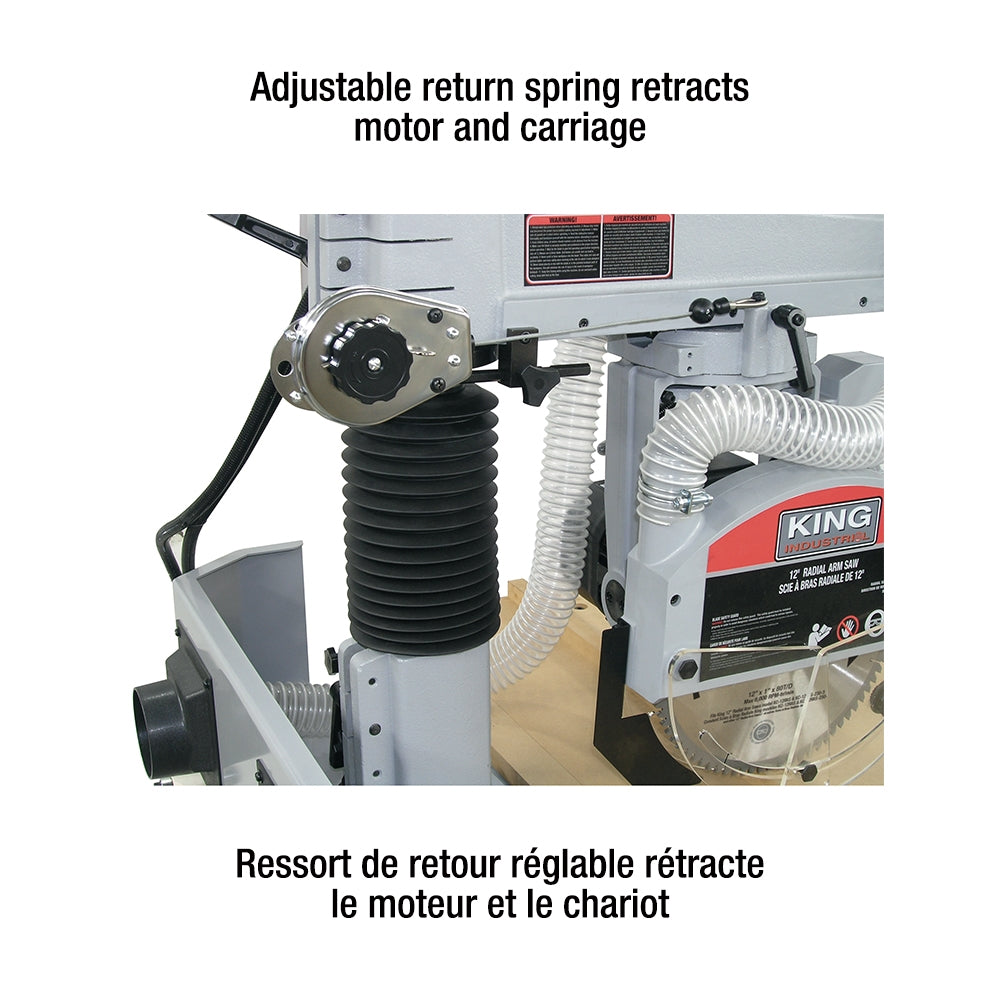

- Adjustable return spring – Retracts the motor and carriage for controlled return after a cut.
Specifications
| Specifications and Details | |
|---|---|
| Motor | 2 HP, 8.5 Amp. |
| Voltage | 220V, 1 phase, 60 Hz |
| Blade Diameter | 12" - |
| Blade Arbor (With 1" Bushing) | 5/8" |
| Maximum Crosscut Capacity | 16" |
| Maximum rip capacity | 26-3/8" |
| Dado Capacity | 13/16" |
| MDF Table size | 35-3/8" x 27-1/2" |
| Height Of Table From Floor | 36-3/4" |
| Assembled dimensions (LxWxH) | 35-3/8" x 43" x 71" / 395 lbs |
| Package dimensions (LxWxH) | 30" x 37-3/4" x 34" / 485 lbs |
| Includes | 12" negative rake blade, adjustment wrenches and hex. keys |
| Dust chute | Two 4" |
| Precision indexing | Positive stops at 22.5˚, 45˚ and 90˚ |
| Blade brake | Automatic built-in mechanical blade brake system |
| Safety switch | Magnetic safety switch with keyed lock |
| Return spring | Adjustable return spring retracts Motor and carriage. |
| Cutting modes | Crosscut, bevel cut, miter cut and swivel to a rip position |
