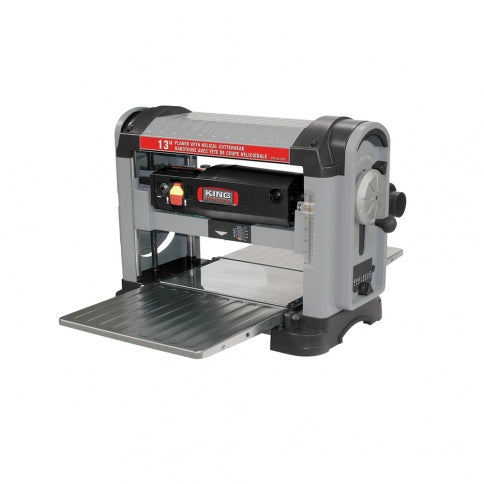

KING KC-13HPC 13'' PLANER WITH HELICAL CUTTERHEAD
KING KC-13HPC 13'' PLANER WITH HELICAL CUTTERHEAD is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The KING KC-13HPC 13" Planer with Helical Cutterhead is a professional-grade thickness planer engineered to deliver exceptional surface finishes, precision thicknessing, and reliable performance for woodworking shops, cabinetmakers, and serious hobbyists. Powered by a robust 15 Amp motor with thermal overload protection, this planer provides the power needed to handle demanding stock preparation while protecting the motor during extended use.

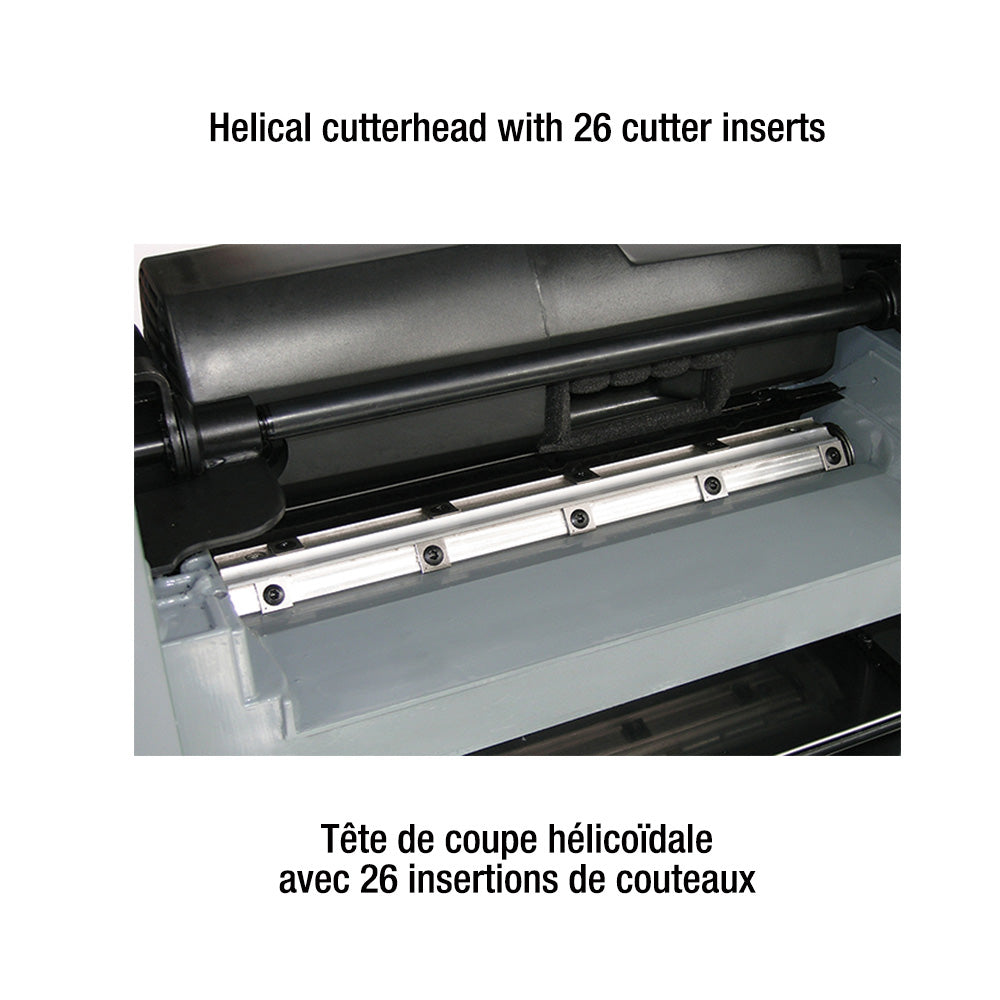

At the core of the KC-13HPC is a helical cutterhead that produces smoother finishes with reduced tear-out compared to conventional straight-knife cutterheads. The result is cleaner cuts, quieter operation, and superior performance across a variety of hardwoods and softwoods.
For maximum accuracy and stability, the cutterhead assembly rides on four precision-ground support columns, ensuring consistent thicknessing and minimizing snipe. Dual graduated indicators display both material thickness and depth of cut in inches and millimeters, allowing for precise adjustments and repeatable results.
The planer features eight preset depth stops at common thickness settings, enabling quick setup for repetitive planing operations. An exclusive two-position dust chute system provides flexibility for different shop environments. Use the closed position with 4" or 2-1/2" dust collection connections for efficient chip extraction, or open the chute for free-flow chip ejection when dust collection is not required.
Additional conveniences include a side-mounted tool storage compartment and included adjustment tools for cutter insert maintenance and setup. Designed for professional results and long-term durability, the KING KC-13HPC is an excellent solution for precision stock preparation and finish planing applications.
- 13" Thickness Planer with Helical Cutterhead – Designed for precision stock preparation and finish planing
- Powerful 15 Amp Motor – Delivers reliable performance for demanding woodworking applications
- Thermal Overload Protection – Helps protect the motor during extended operation
- Helical Cutterhead Design – Produces smoother finishes with reduced tear-out
- Superior Surface Finish Quality – Ideal for hardwoods, softwoods, and figured lumber
- Four Precision-Ground Support Columns – Provides exceptional cutterhead stability and accuracy
- Consistent Thicknessing Performance – Helps minimize snipe and improve finished results
- Dual Measurement Indicators – Displays thickness and depth of cut in inches and millimeters
- Eight Preset Depth Stops – Allows fast, repeatable setup at common material thicknesses
- Preset Thickness Settings – Includes 1/8", 1/4", 1/2", 3/4", 1", 1-1/4", 1-1/2", and 1-3/4"
- Exclusive Two-Position Dust Chute – Provides flexible dust collection and chip ejection options
- 4" & 2-1/2" Dust Collection Connections – Compatible with most shop dust collection systems
- Open-Chute Chip Ejection Option – Allows free-flow chip discharge when dust collection is unavailable
- Side-Mounted Tool Storage Box – Keeps adjustment tools conveniently organized
- Adjustment Tools Included – Includes cutter insert adjustment Torx key and adjustment hex key
- Professional-Grade Woodworking Performance – Ideal for furniture making, cabinetry, and general woodworking projects
Specifications
| Specifications and Details | |
|---|---|
| Model | KC-13HPC |
| Maximum Planing Width | 13" |
| Maximum Planing Thickness | 6" |
| Number of Cutter Inserts | 26 |
| Feed Rate | 26 FPM |
| Cutterhead Speed | 10,000 RPM |
| Motor | 15 Amp. |
| Voltage | 120V, 1 Phase, 60 Hz |
| Assembled Dimensions (L x W x H) / Weight | 25-3/4" x 34" x 19-3/4" / 85 lbs |
| Package Dimensions (L x W x H) / Weight | 26-7/8" x 15" x 22-1/2" / 90 lbs |
| UPC | 7 72995 01409 5 |
