| SKU:
KING-KC-227-2

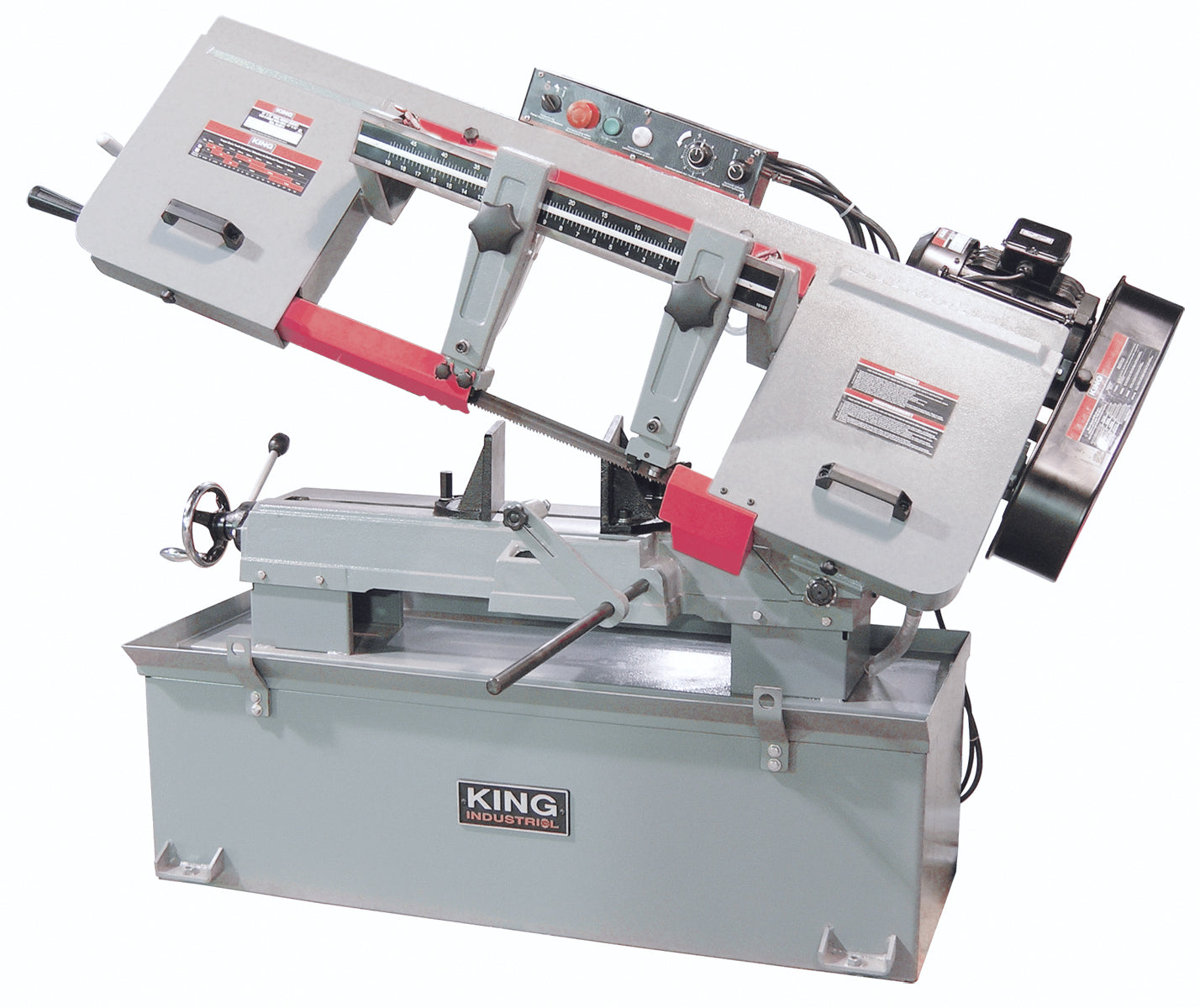

KING KC-227-2 10" X 18" Metal Cutting Bandsaw (230V)
Couldn't load pickup availability
KING KC-227-2 10" X 18" Metal Cutting Bandsaw (230V)
The KING KC-227-2 is a 10" x 18" metal cutting bandsaw built for shop use with a 230V electrical specification. It offers a 90° rectangular cutting capacity of 10" x 18" and a dedicated blade size to handle a range of metal stock.
Power and cut control come from a 2 HP drive motor (data also lists 11.5 Amp) and four selectable blade speeds (114, 196, 288, 377 FPM). The saw uses a 122" x 1" x 0.032" blade with carbide ball bearing blade guides and a coolant system with regulator valves to support consistent cutting.
Operator controls are centralized and include automatic shut-off and an exclusive 24 Volt control panel. The machine features adjustable hydraulic down feed control and a TRU-LOCK™ cam lock quick-positioning vise with fully adjustable jaws for angled cuts.
The saw ships with substantial assembled dimensions and weight—70" x 27" x 42" and 634 lbs—so plan for shop floor space and handling. Packaging dimensions and shipping weight are provided in the specifications.
Key specifications
- Cutting Capacity At 90°-Rect.: 10" x 18" • Diam. 10"
- Speeds: 4 (114, 196, 288, 377) FPM
- Blade: 122" x 1" x 0.032"
- Voltage: 230V, 1 phase, 60 Hz
- 10" x 18" 90° cutting capacity – Handles rectangular stock up to 10" x 18" and round stock to 10" diameter at 90°.
- Four blade speeds – Speeds of 114, 196, 288 and 377 FPM let you match cutting speed to material and blade.
- 2 HP motor – Delivers power for metal cutting operations (product data also lists Motor-11.5 Amp.).
- 122" x 1" x 0.032" blade – Factory-specified blade size for the KC-227-2 platform.
- Carbide ball bearing blade guides – Stable blade tracking for improved cut accuracy and longer guide life.
- Coolant system with regulator valves – Provides an even flow of coolant to the blade to help control heat and clear chips.
- Adjustable hydraulic down feed – Fine-tune feed rate for consistent cuts and improved surface finish.
- TRU-LOCK™ cam lock vise system – Quick positioning vise with fully adjustable jaws for angled cuts and secure workholding.
- Centralized controls & safety shut-off – Control panel locations simplify operation and include automatic shut-off for safety.
- Exclusive 24 Volt control panel – Low-voltage control interface for the saw's operator functions.
- Shop-ready footprint and weight – Assembled size and weight are provided to help plan installation and floor space.
Specifications
| Specifications and Details | |
|---|---|
| Motor Power | 2 HP |
| Motor | 11.5 Amp. |
| Blade Guides | Carbide ball bearing |
| Control Panel | Centralized control panel and automatic shut-off |
| Control Panel Voltage | 24 Volt |
| Down Feed Control | Adjustable hydraulic |
| Coolant System | With regulator valves |
| Vise | TRU-LOCK™ cam lock and quick positioning vise system with fully adjustable jaws for 0? to • 45? angled cuts |
| Cutting Capacity At 90°-Rect. | 10" x 18" • Diam. 10" |
| Cutting Capacity At 45°-Rect. | 7" x 9-3/8" • Diam. 10" |
| Speeds | 4 (114, 196, 288, 377) FPM |
| Blade | 122" x 1" x 0.032" |
| Voltage | 230V, 1 phase, 60 Hz |
| Table Height From Floor | 23" |
| Assembled dimensions (LxWxH) | 70" x 27" x 42" / 634 lbs |
| Packaging Dimensions (LxWxH) / Weight | 67-1/2" x 29-1/4" x 43-1/2" / 775 lbs |
