| SKU:
KING-KC-27FXT/H50X/50
KING KC-27FXT/H50X/50 10” EXTREME CABINET TABLE SAW- 50” RIP FENCE & EXTENSION TAB
Couldn't load pickup availability
KING KC-27FXT/H50X/50 10” EXTREME CABINET TABLE SAW- 50” RIP FENCE ...

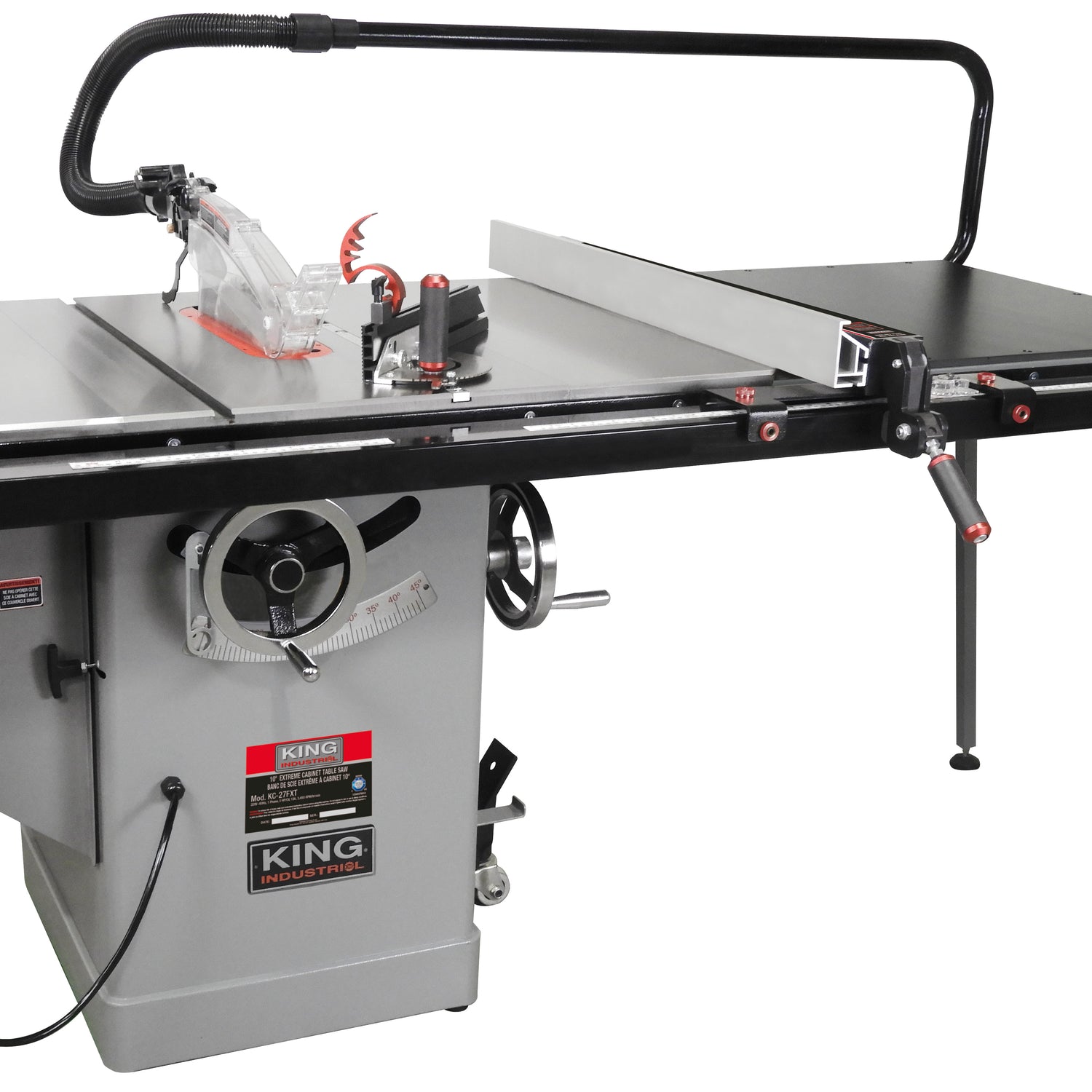

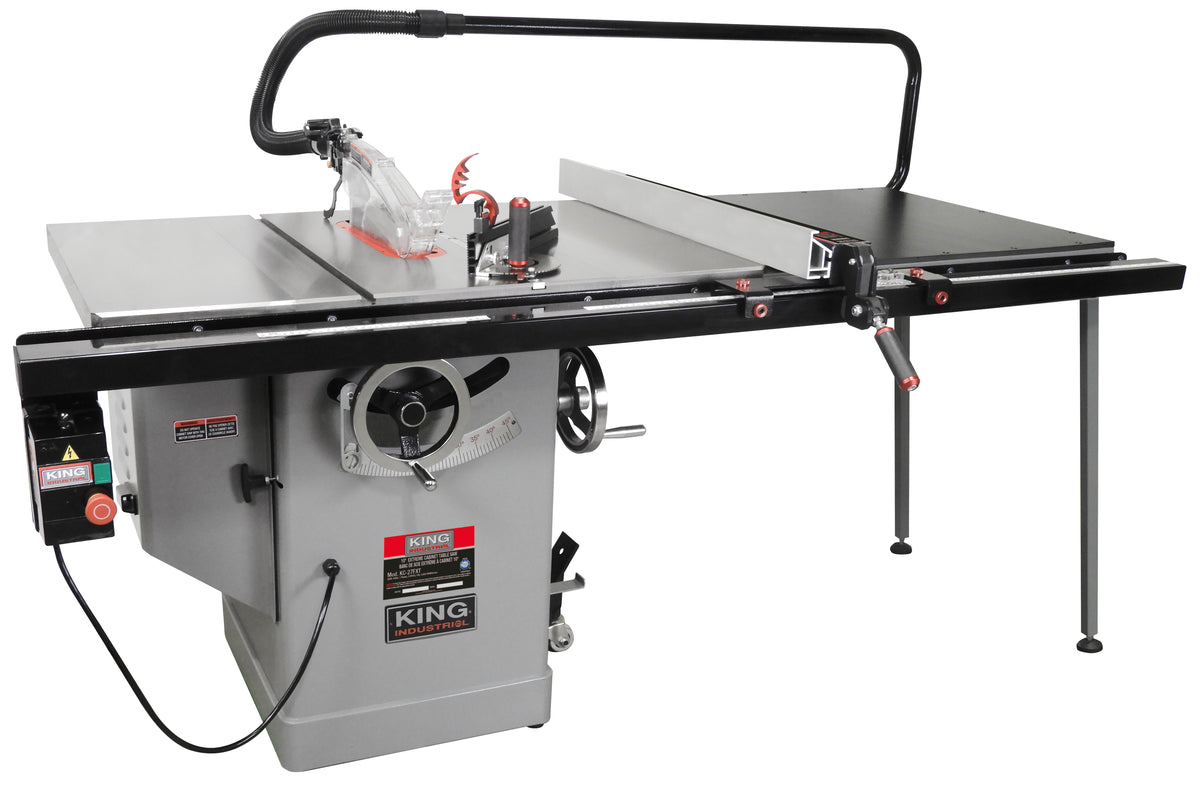

The KING KC-27FXT/H50X/50 is a 10” cabinet table saw built for workshop ripping, crosscutting and dadoing tasks. It is powered by a 3 HP, 220V motor and features heavy-duty cast-iron table and extension tables that are double ground for accuracy and a refined surface finish.

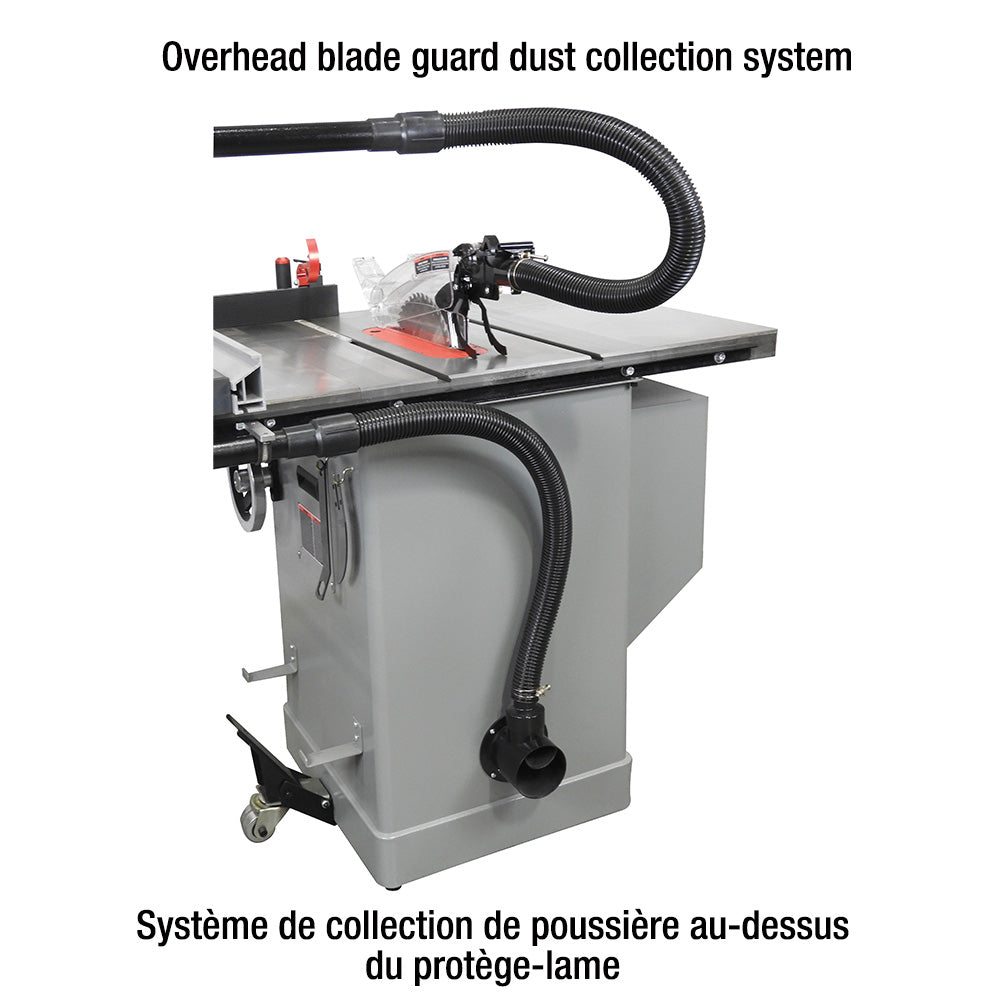

Safety and dust control are integrated: the saw includes a riving knife system, a magnetic safety switch and an overhead blade guard dust collection system with a 4" dust chute to help manage chips and dust.
Workholding and layout features support precision cutting: the table has "T" slots for a miter gauge and a beveled front edge. The machine offers a choice of extreme rip fence systems with horizontal or vertical-position aluminum guides and a 50" max rip capacity with the 50" melamine extension table.
The saw ships with a range of setup and operating accessories to get the machine into service, including a 10" x 40 tooth carbide tipped saw blade, a foot-lever mobile base with steel wheel, extreme miter gauge, standard and dado table inserts, push stick, storage hooks and hex keys. Key operating specs include a 5/8" arbor, 4,470 RPM arbor speed and stated depth-of-cut values at 90° and 45°.
Key specifications
- Blade diameter: 10”
- Motor: 3 HP, 12.5 Amp
- Voltage: 220V, 1 phase, 60 Hz
- Depth of cut at 90°: 3"
- 3 HP, 12.5 Amp motor – Provides the stated power on 220V supply for common table-saw cutting tasks.
- 10" x 40T carbide tipped blade included – Delivers a ready-to-use cutting setup out of the box.
- Double-ground cast-iron table and extensions – Improves surface flatness and finish to support accurate cuts.
- 50" max rip capacity with melamine extension – Supports ripping of large panels and sheet goods when extended.
- Riving knife system – Helps reduce the risk of kickback during cutting operations.
- Magnetic safety switch – Prevents accidental restarts and adds a layer of operator protection.
- Overhead blade guard with 4" dust chute – Helps contain chips and enables connection to a dust-collection system.
- "T" slots and beveled front edge – Accepts a miter gauge and gives a practical front working edge for layout and control.
- Accessories for setup and mobility – Includes a foot-lever mobile base, extreme miter gauge, standard and dado inserts, push stick, storage hooks and hex keys for installation and use.
- Arbor specifications – 5/8" arbor and 4,470 RPM arbor speed are provided for blade mounting and operation.
Specifications
| Specifications and Details | |
|---|---|
| MODEL | KC-27FXT/H50X/50 |
| Blade diameter | 10” |
| Blade tilts | Left |
| Depth of cut at 45° | 2-1/4" |
| Depth of cut at 90° | 3" |
| Table size with extensions | 42-1/8" x 29" |
| Diameter of arbor | 5/8" |
| Arbor speed | 4,470 RPM |
| Motor | 3 HP, 12.5 Amp. |
| Voltage | 220V, 1 phase, 60 Hz |
| WEIGHT | 555 lbs |
