Makita DHP490Y01 18V LXT Brushless 1/2" Hammer Drill-Driver, Compact Kit
Makita DHP490Y01 18V LXT Brushless 1/2" Hammer Drill-Driver, Compact Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

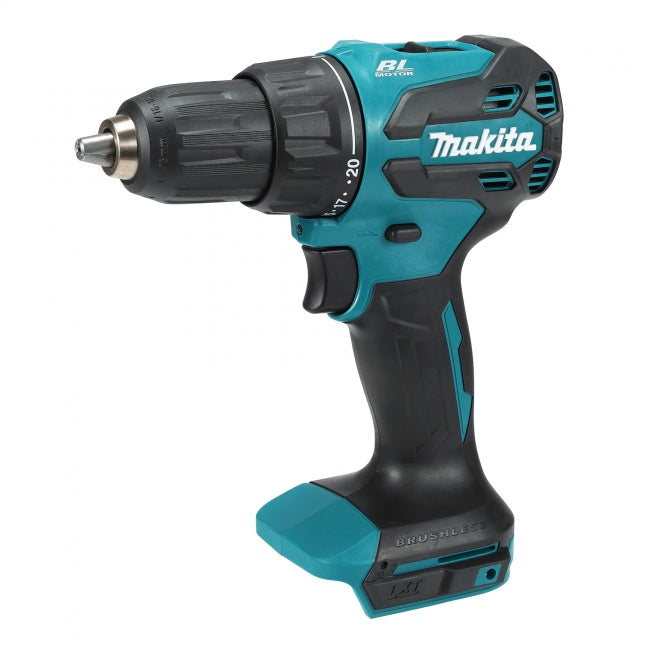

The Makita DHP490Y01 is an 18V LXT brushless 1/2" hammer drill-driver supplied as a compact kit. It includes an 18V (Compact) Li-Ion battery BL1815N (196235-0), a standard charger, and a keyless drill chuck (763260-2). The brushless motor delivers up to 580 in. lbs (65 Nm) of maximum torque and achieves high no-load speed for fast drilling.
Designed for versatility on the jobsite, the tool offers 20-stage torque settings for fine fastening control, mechanical 2-speed gearing to choose between higher rpm or more torque, and three action modes: drilling, hammer drilling, and screwdriving. A single LED with pre-glow and after-glow helps illuminate the work area, while the variable-speed trigger gives responsive speed control.

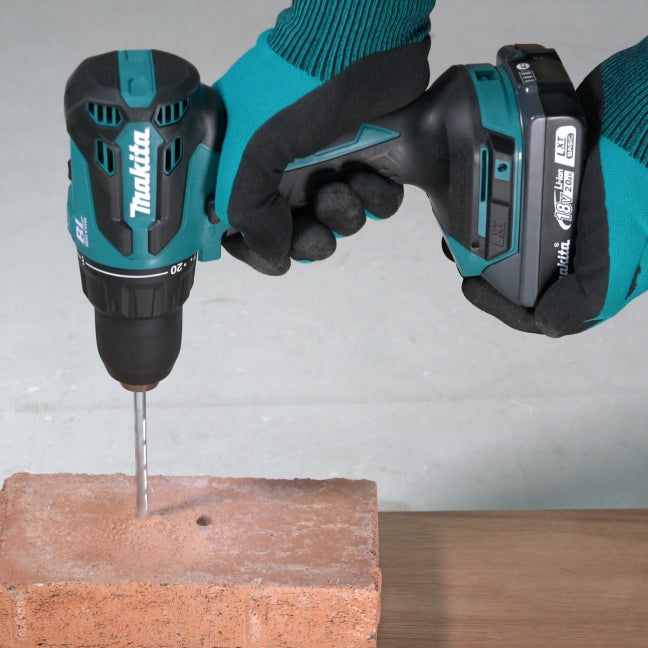

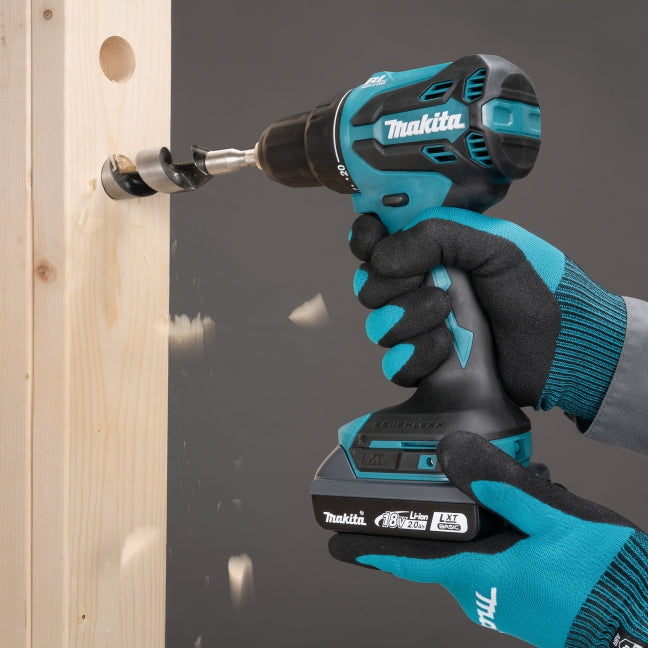

Practical size and handling make this compact driver suitable for work in tight spaces. The overall length is 6-3/4" (172 mm) and the net weight ranges from 3.1 lbs to 3.7 lbs (1.4 kg to 1.7 kg). Typical drilling capacities include masonry and steel to 1/2" (13 mm) and wood to 1-1/2" (38 mm).
Built for tougher conditions, the tool includes eXtreme Protection Technology (XPT) for improved resistance to dust, debris and liquids, a reversing switch, a hanging hook, and a battery protection circuit to reduce overloading, over-discharging and over-heating.

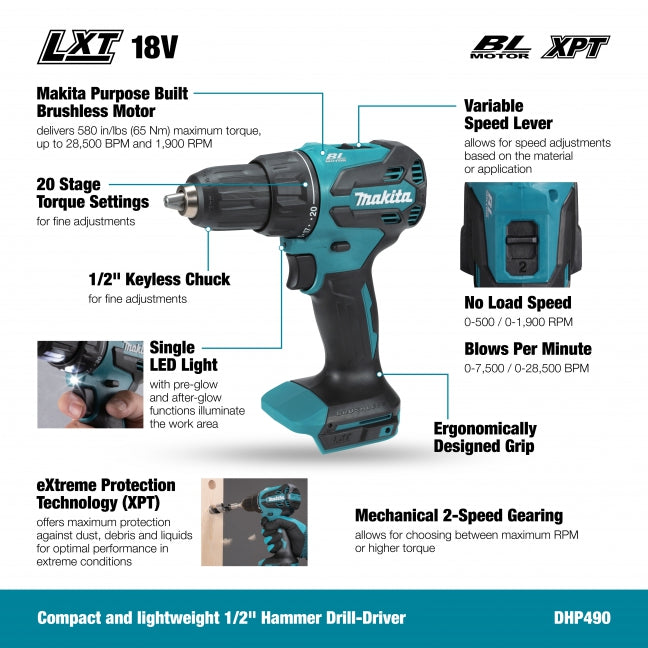

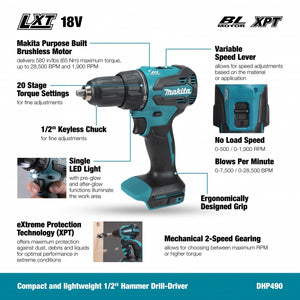

Key specifications
- Battery Capacities: 18V Li-Ion
- Maximum Torque: 580 in. lbs (65 Nm)
- No Load Speed:: Low 0 - 500 RPM, High 0 - 1,900 RPM
- Capacities:: Masonry 1/2" (13 mm), Steel 1/2" (13 mm), Wood 1-1/2" (38 mm)
- Brushless Motor – Delivers 580 in. lbs (65 Nm) maximum torque while providing longer run time per charge and extended tool life.
- 18V LXT Platform – Compatible with Makita 18V LXT Li-Ion batteries for cordless portability and on-site flexibility.
- 20-Stage Torque Settings – Allows fine adjustments for precise screwdriving and to match different fastening tasks.

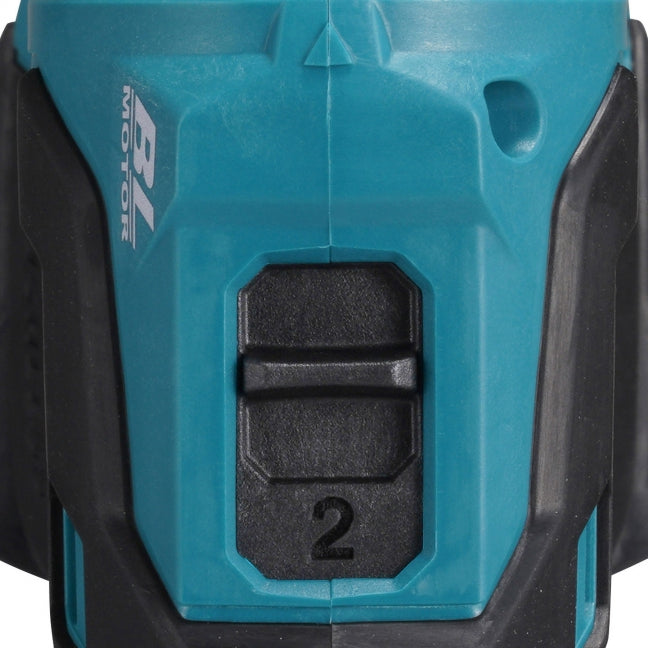

- Mechanical 2-Speed Gearing – Choose between higher rpm for fast drilling or lower speed for increased torque.
- Three Action Modes – Switch between drilling, hammer drilling and screwdriving for a range of applications.
- Keyless 1/2" Chuck – Quick bit changes without tools for faster jobsite productivity.
- Compact, Lightweight Design – 6-3/4" overall length and a light weight make it easier to work in narrow or overhead spaces.

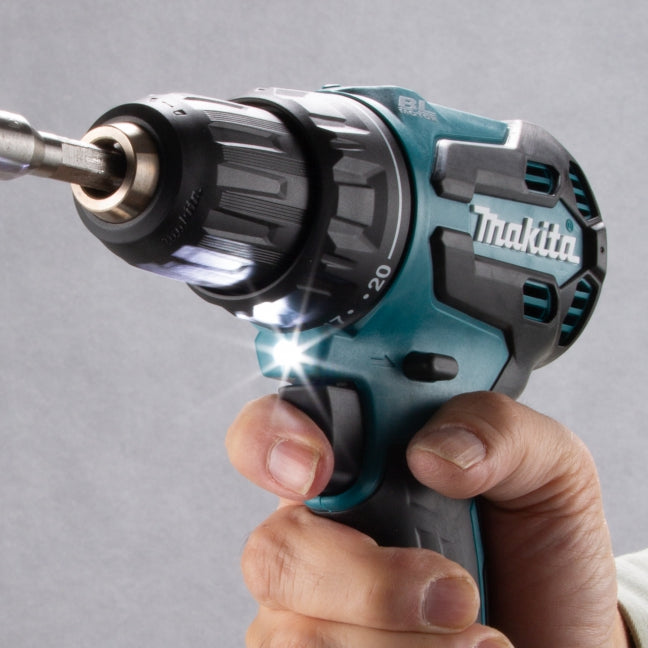

- Single LED Light – Pre-glow and after-glow help illuminate the work area when working in low light.
- XPT (eXtreme Protection Technology) – Enhanced protection against dust, debris and liquids for improved reliability in harsh conditions.
- Battery Protection Circuit – Helps prevent overloading, over-discharging and over-heating to protect the battery and tool.
Specifications
| Specifications and Details | |
|---|---|
| Battery Capacities | 18V Li-Ion |
| Capacities: | Masonry 1/2" (13 mm), Steel 1/2" (13 mm), Wood 1-1/2" (38 mm) |
| No Load Speed: | Low 0 - 500 RPM, High 0 - 1,900 RPM |
| Blows Per Minute: | Low 0 - 7,500 BPM, High 0 - 28,500 BPM |
| Maximum Torque | 580 in. lbs (65 Nm) |
| Vibration Level | 8.1 m/s² |
| Noise Level | 88 dB(A) |
| Overall Length | 6-3/4" (172 mm) |
| Net Weight | 3.1 lbs - 3.7 lbs (1.4 kg - 1.7 kg) |

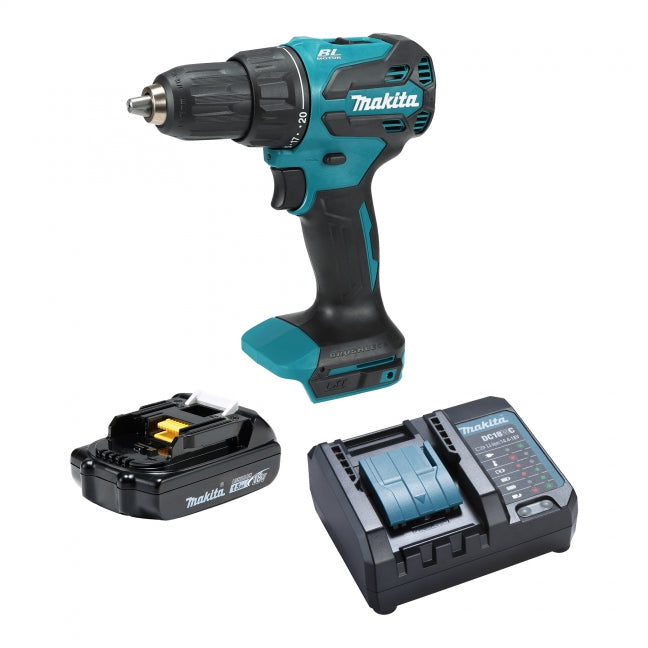

| Items Included | 18V (Compact) Li-Ion Battery BL1815N (196235-0), Standard Charger, Keyless Drill Chuck (763260-2) |
