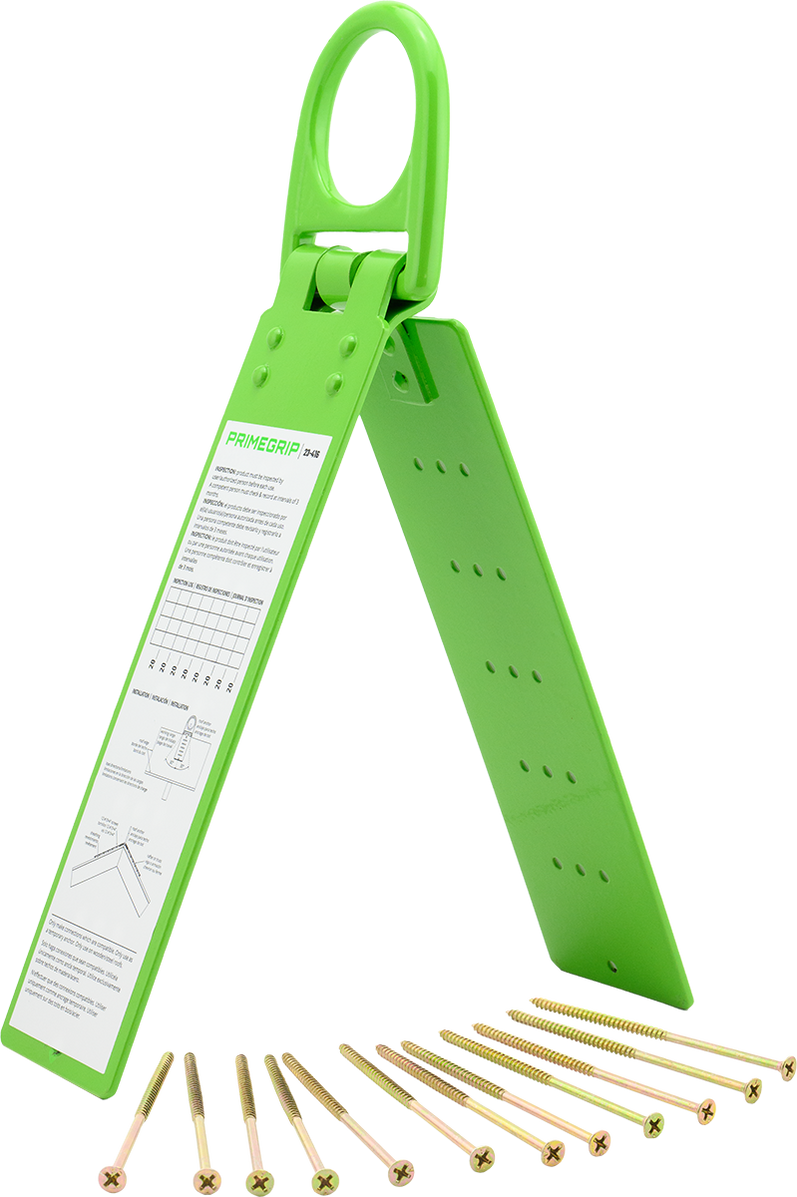

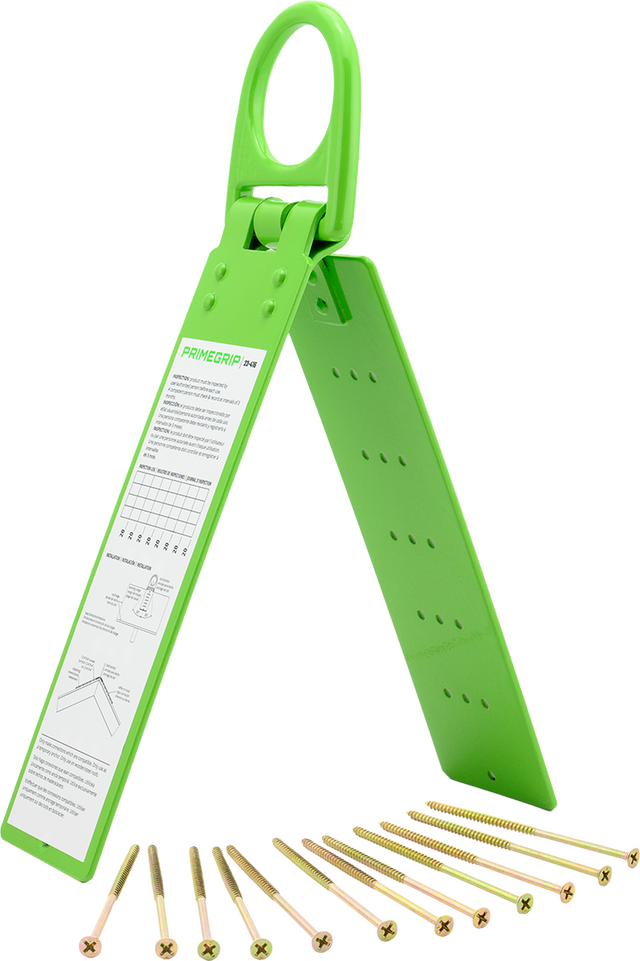

PRIMELINE 23-416 Dual Plate Roof Anchor
PRIMELINE 23-416 Dual Plate Roof Anchor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
PRIMELINE 23-416 Dual Plate Roof Anchor
The PRIMELINE 23-416 Dual Plate Roof Anchor is a roof-mounted anchorage plate designed to provide a secure attachment point for fall-protection lanyards and hardware on pitched roofs. The dual-plate design distributes load across the roof structure while offering a compact footprint for installation.
This anchor is compatible with both wood and steel substrates and features a special hole configuration that helps make fastener placement into a truss or support beam safer and more convenient. It can be installed using screws or duplex nails; fasteners are provided with the anchor.
Intended for pitched roofing, the anchor fits up to a 12/12 roof pitch. The plate measures 10" x 3" and the unit weighs 2.80 lbs, which can aid in handling and positioning during installation. Use this anchor where a fixed roof attachment point is required and where the listed substrate compatibility and pitch limits are met.
- Compatible substrates – Works with both wood and steel substrates to suit common roof framing materials.
- Special hole configuration – Hole pattern designed for safer and more convenient fastener installation into trusses or support beams.
- Multiple fastener options – Can be installed with screws or duplex nails to match available fasteners and site preference.
- Fasteners included – Fasteners are provided with the anchor to simplify initial installation.
- Roof pitch compatibility – Fits up to a 12/12 roof pitch for use on steeply pitched roofs within that limit.
- Compact plate size – 10" x 3" plate offers a focused contact area for installation without an oversized footprint.
- Manageable weight – 2.80 lb unit weight assists with handling and positioning during installation.
Specifications
| Specifications and Details | |
|---|---|
| Plate Dimensions | 10" x 3" |
| Length | 14.00" |
| Width | 3.50" |
| Height | 0.75" |
| Weight | 2.80 lbs |
| UPC | 626939234165 |
PRIMELINE 23-416 Dual Plate Roof Anchor
The PRIMELINE 23-416 Dual Plate Roof Anchor is a roof-mounted anchorage plate designed to provide a secure attachment point for fall-protection lanyards and hardware on pitched roofs. The dual-plate design distributes load across the roof structure while offering a compact footprint for installation.
This anchor is compatible with both wood and steel substrates and features a special hole configuration that helps make fastener placement into a truss or support beam safer and more convenient. It can be installed using screws or duplex nails; fasteners are provided with the anchor.
Intended for pitched roofing, the anchor fits up to a 12/12 roof pitch. The plate measures 10" x 3" and the unit weighs 2.80 lbs, which can aid in handling and positioning during installation. Use this anchor where a fixed roof attachment point is required and where the listed substrate compatibility and pitch limits are met.
