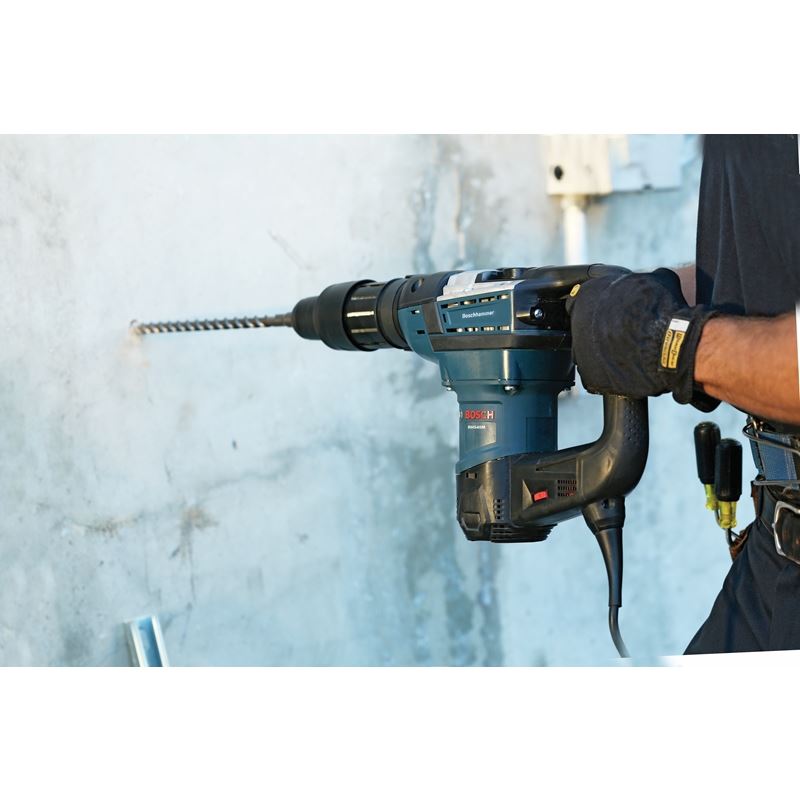

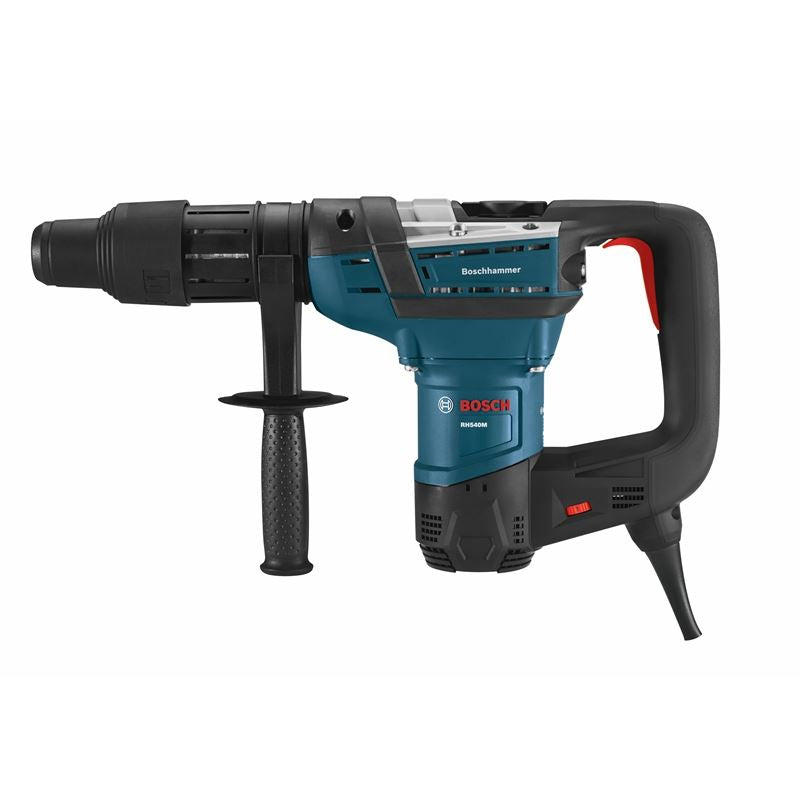

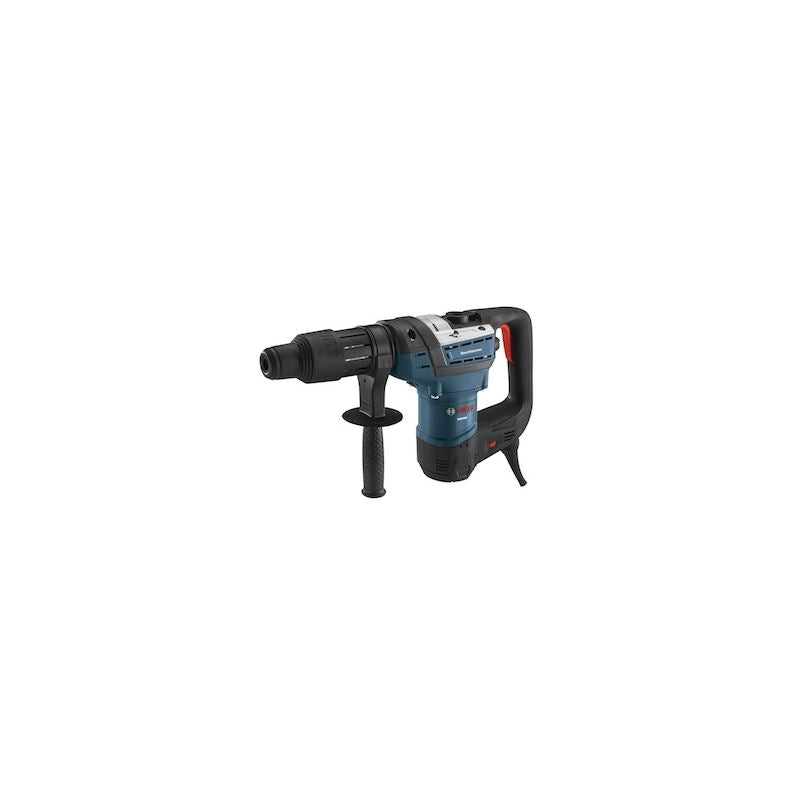

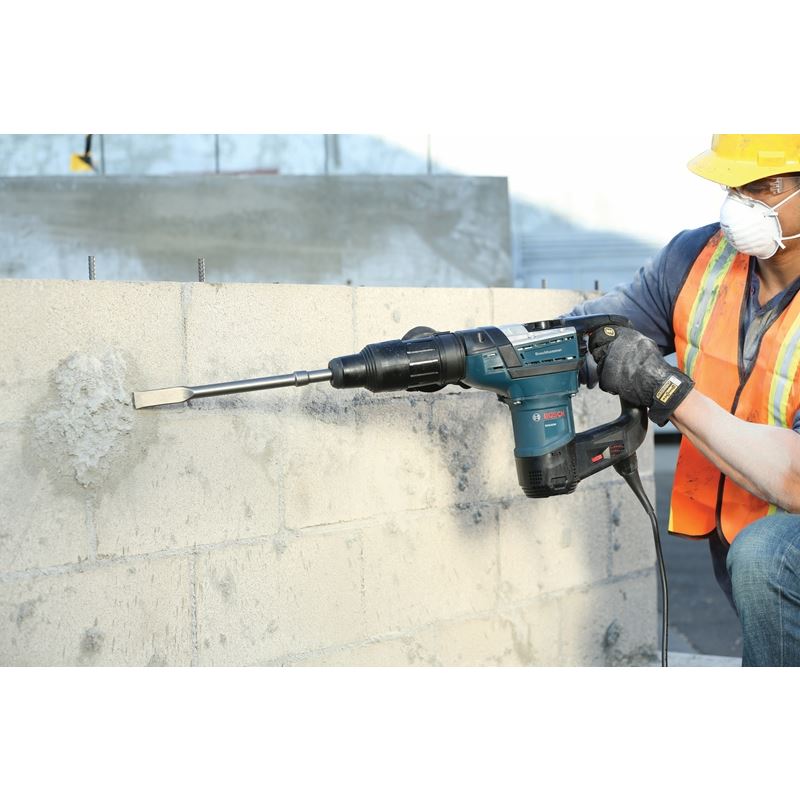

RH540M 1-9/16" SDS-MAX Combination Hammer:
Includes:
Auxiliary Handle - 2 602 025 062
Carrying Case - 3 605 438 536
SDS-MAX Bit system - Tool-Free Bit changes with automatic bit locking, Dust protection and maximum impact energy transfer rate
Combination Dual mode selector - Selector knob allows the tool to be switched between rotary hammer mode or hammer only mode
Vario-Lock Positioning - Rotates and locks chisel into 12 Different positions to optimize working angle
Innovative Service modules - Designed so a qualified service technician can quickly replace the brushes and cord
360° Auxiliary handle - Provides a wide range of movement along with operator comfort
Integral Clutch - Disengages torque transmission if the bit gets into a bind situation
Grounded Design, CSA Listed, Complies to OSHA
Specifications
| General Chuck Type | SDS-Max |
|---|---|
| Voltage | 120 V |
| Weight | 15.2 lbs |
| Power Source | Electric |
| Height | 10.5" |
| Length | 19" |
| Warranty | Limited 1 Year |
| Amps | 12 Amps |
| Cord Length | 8 ft |
| No Load RPM | 170 - 340 |
| Rating | 120V |
| No Load BPM | 1,500 - 2,900 |
| Max. Hole Diameter in Concrete | 1-9/16" |
| Optimal Concrete Capacity Range | 1/2" - 1-3/8" |
| Impact Energy / EPTA (ft lbs) | 6.1 |
| Max. Hole Diameter in Concrete Core Bi | 4" |
| Max. Hole Diameter in Concrete Thru Ho | 2-1/2" |
