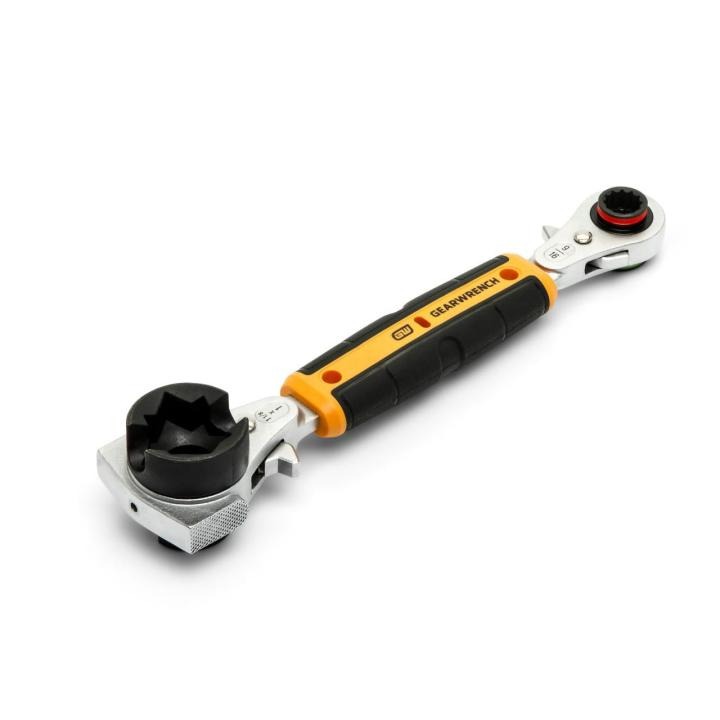

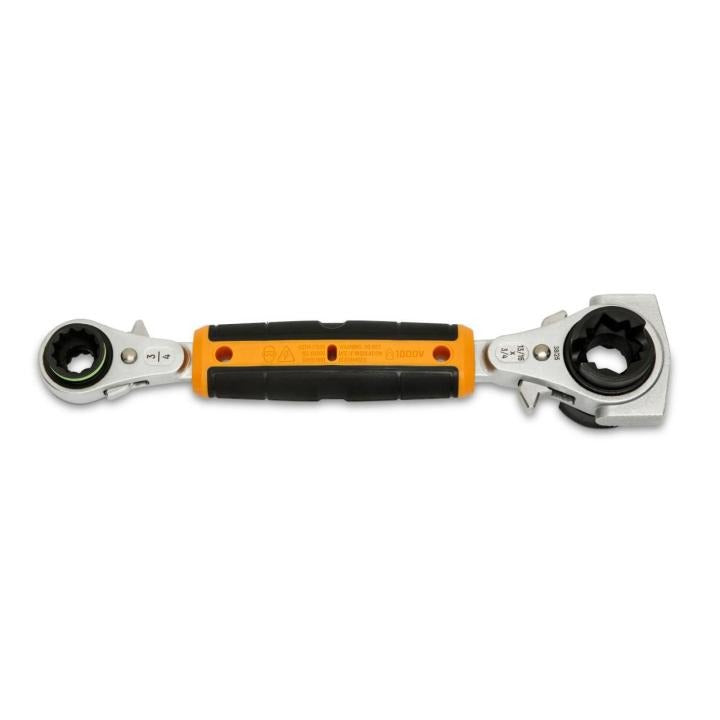

GEARWRENCH GWULW91 Lineman 9-in-1 Isolated Ratcheting Wrench
GEARWRENCH GWULW91 Lineman 9-in-1 Isolated Ratcheting Wrench est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
GEARWRENCH GWULW91 Lineman 9-in-1 Isolated Ratcheting Wrench

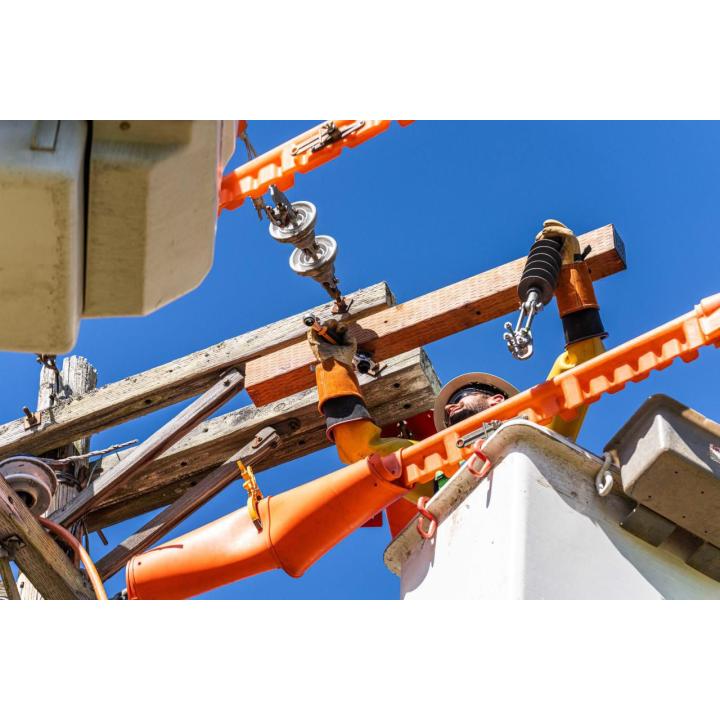

The GEARWRENCH GWULW91 Lineman 9-in-1 Insulated Ratcheting Wrench combines multiple lineman functions into a single tool for transmission, distribution and power line work. Its lineman-focused layout reduces the need to switch between tools on the job.

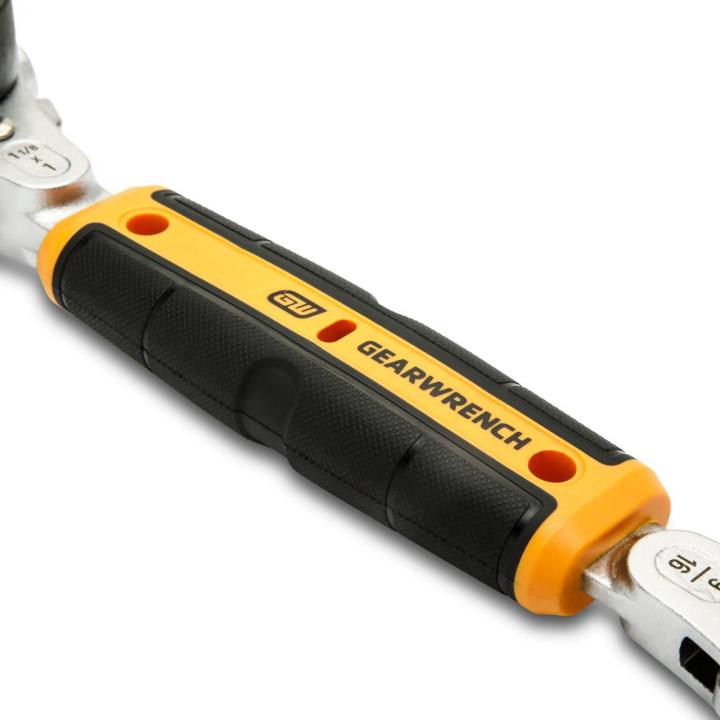

An electrically isolated handle meets IEC 60900 and ASTM F1505 ratings for work around energized environments up to 1000V. The handle material is listed as fiberglass and the tool is indicated as insulated.
High-strength ratchet pawl and gear mechanisms deliver smooth operation with minimized ratcheting drag torque, and XL directional switches are sized for use while wearing insulated gloves. An integrated nut stop helps prevent bolt heads from passing through the socket for better fastener control.
Dual milled and smooth hammer faces provide options for installing and removing stubborn hardware. The wrench accepts the listed square and hex fastener sizes, has a satin chrome finish, an overall length of 11.51 in and is backed by a Full Lifetime Warranty.

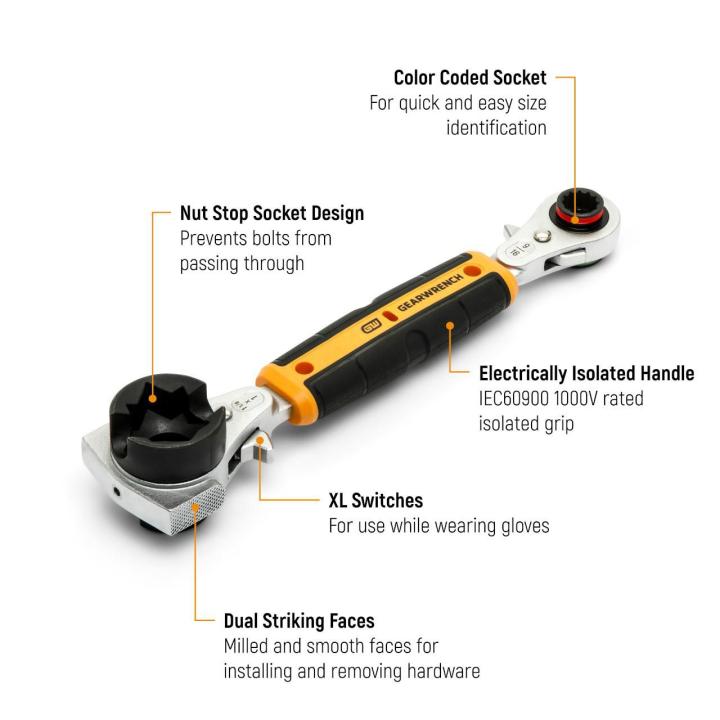

- Electrically isolated handle – IEC 60900 and ASTM F1505 rated for work around energized environments up to 1000V.
- High-strength ratchet mechanism – Rachet pawl and gear design delivers smooth operation with minimized ratcheting drag torque.
- XL directional switches – Large switches allow easier operation when wearing insulated gloves.

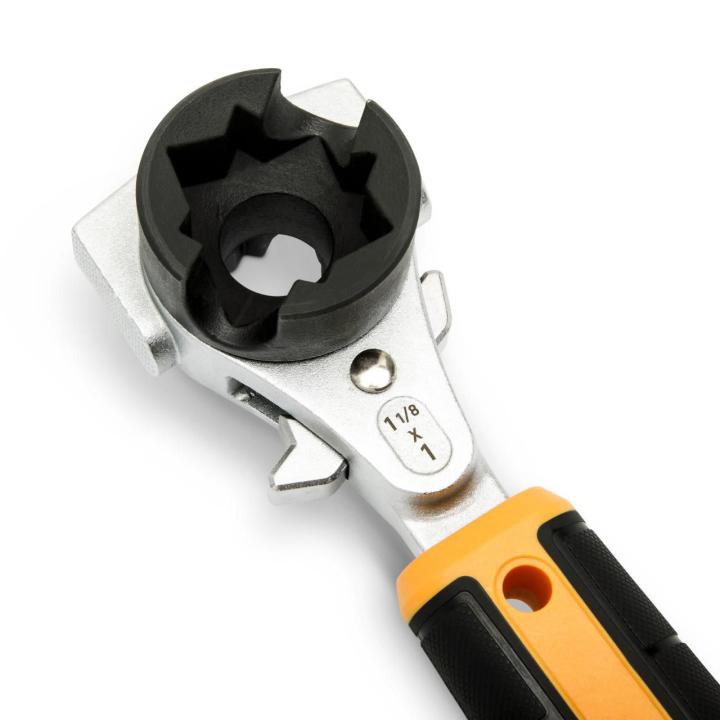

- Integrated nut stop – Prevents the bolt head from passing through the socket for improved fastener control.

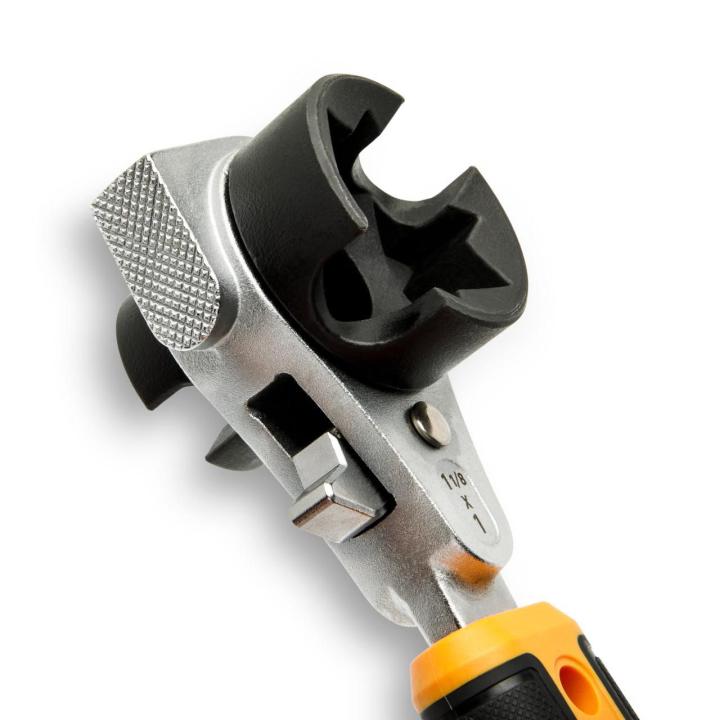

- Dual hammer faces – Milled and smooth faces provide options for installing and removing stubborn hardware to reduce tool changes.
- 9-in-1 lineman configuration – Accepts square fasteners 3/4”, 13/16", 1”, 1-1/8” and hex fasteners 9/16", 3/4".
- Insulated construction with fiberglass handle – Handle Material listed as Fiberglass and Insulated: Yes as part of the electrically isolated design.
- Compact, job-ready size – Overall Length 11.51 in with a catalog weight of 2.175 lb for lineman use.
- Satin Chrome finish and boxed packaging – Satin Chrome finish; tool is supplied boxed and backed by a Full Lifetime Warranty.
Specifications
| Specifications and Details | |
|---|---|
| Weight (Catalog) | 2.175 lb |
| Warranty | Full Lifetime |
| Type | Lineman Ratcheting |
| End A Fastener Size | 3/4”, 13/16", 1”, 1-1/8” |
| End A Drive Type | Square |
| End A Offset Degrees | 0 ° |
| Lineman Configuration | 9-in-1 |
| Flexible | No |
| Overall Length | 11.51 in |
| Size | 3/4”, 13/16", 1”, 1-1/8”, 9/16" |
| Overall Width | 2.36 in |
| Rated Voltage | 1000V |
| SAE/Metric/Torx | SAE |
| Overall Height | 1 in |
| UPC | 099575388606 |
| Prop 65 | WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Drive Type | 12 Point |
| Material | Alloy Steel |
| End B Fastener Size | 9/16", 3/4" |
| Offset | No |
| End B Drive Type | Square |
| Length Format | Standard |
| Finish | Satin Chrome |
| Tooth Count | 36 / 48 |
| ASME Specification | ASTM F1505; IEC 60900 |
| Insulated | Yes |
| Packaging | Boxed |
| Hi-Viz® | No |
| End B Offset Degrees | 0 ° |
| Handle Material | Fiberglass |
