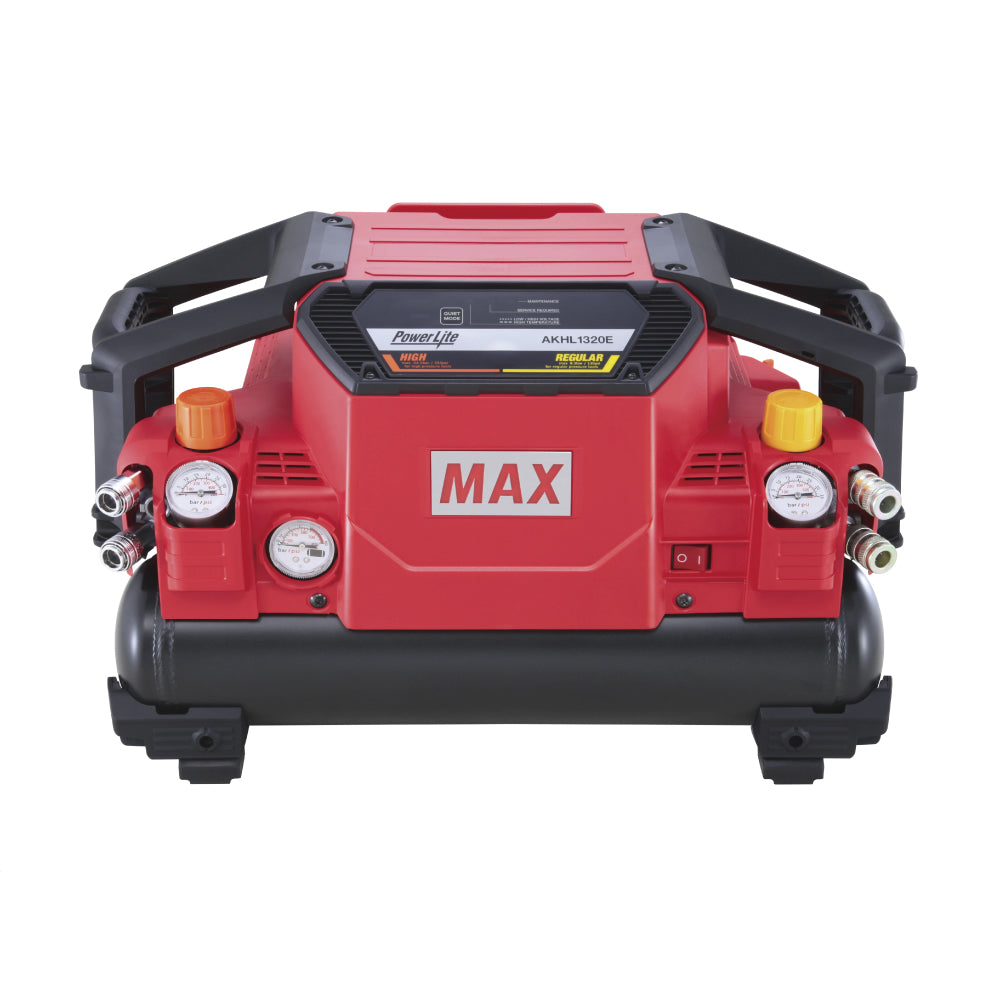

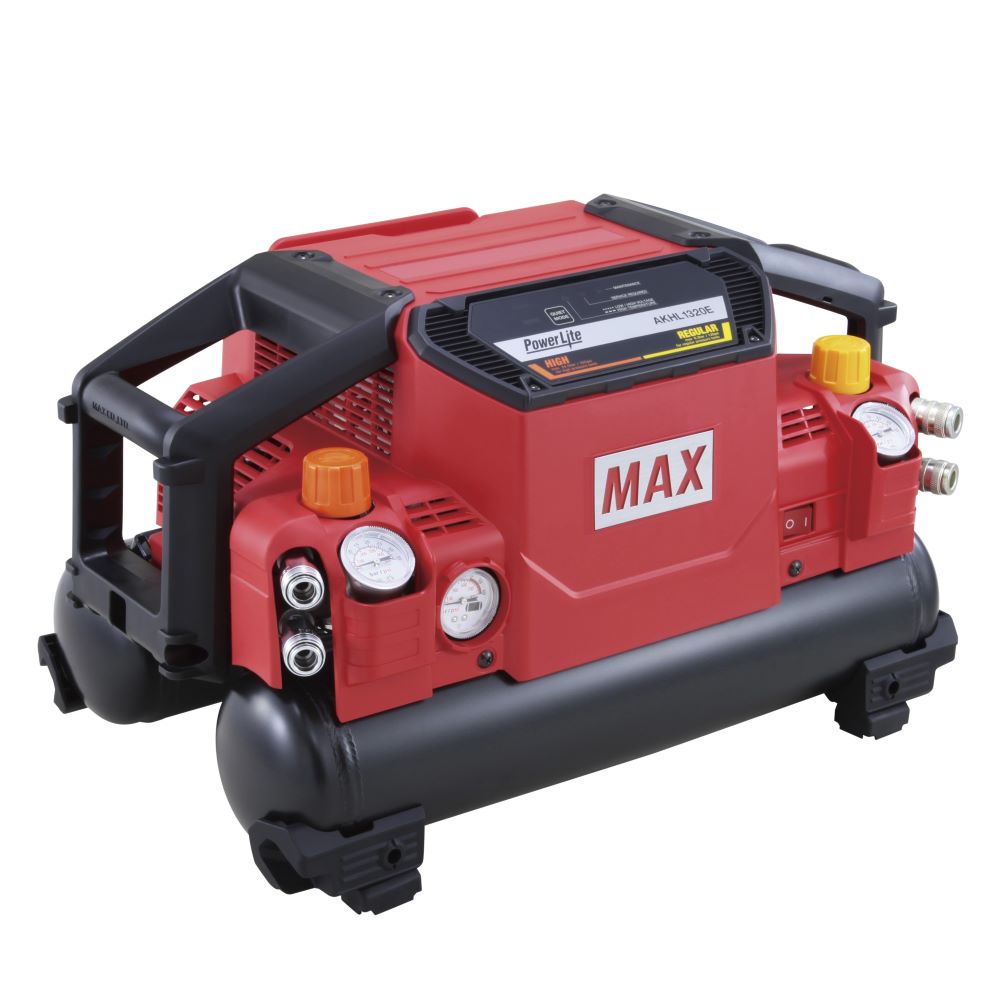

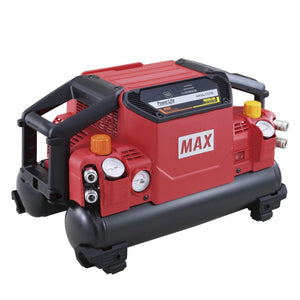

MAX AKHL1320E PowerLite® High Pressure Air Compressor
MAX AKHL1320E PowerLite® High Pressure Air Compressor est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
MAX AKHL1320E PowerLite® High Pressure Air Compressor
The MAX AKHL1320E PowerLite® is an ultra-quiet, safety-equipped high-pressure air compressor with a dual-tank 2.64 gal capacity. It combines a lightweight, dual-handled design with features intended for lower-vibration operation and easy transport.
A New Pat P. Outer Rotor Motor Design and DC brushless motor deliver increased torque at slower speeds, which enables higher air delivery and reduced noise. Rated air delivery includes 3.0 CFM @300PSI and 3.3 CFM @100PSI, and the unit can compress air up to 500psi.

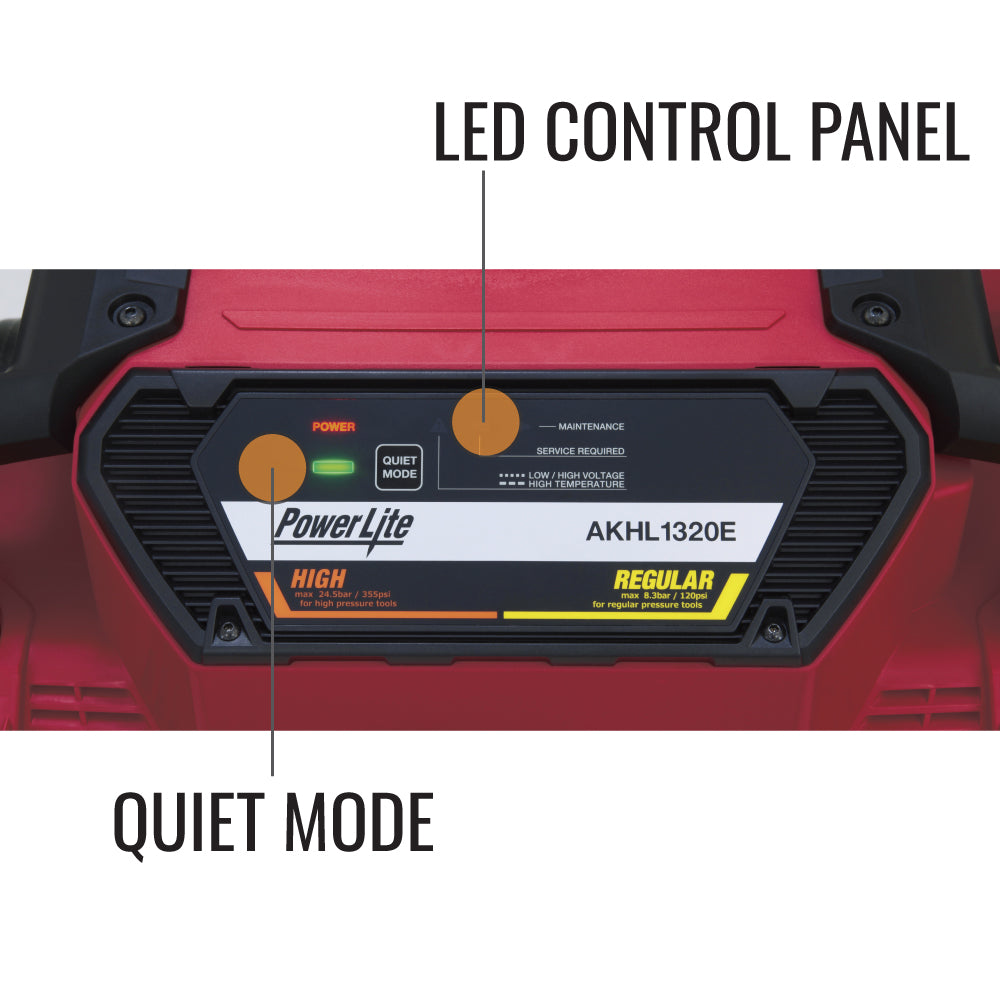

Operational conveniences include a Quiet mode (lower motor RPM and reduced sound level), a motor floating mechanism and LED horizontal pistons that reduce vibration, and easy-start capability for low-voltage situations. The compressor provides separate connections for 100 psi and 500 psi tools and is designed for frequent relocation at 38.9lbs.
- Ultra-quiet operation – Motor floating mechanism, LED horizontal pistons and Quiet mode reduce vibration and lower sound pressure to 60.0 dB in Quiet mode.
- High-pressure capability – Compresses air up to 500psi to support high-pressure tool applications.
- Measured air delivery – Provides 3.0 CFM @300PSI and 3.3 CFM @100PSI for common pneumatic tasks.
- Dual-pressure tool connections – Includes two connections for 100 psi tools and two connections for 500 psi tools so both tool types can be used.
- Lightweight, portable design – Dual-handled compressor weighs 38.9lbs for easier transport and reduced fatigue on the job.
- New Pat P. Outer Rotor Motor Design – Generates more torque at slower speed to increase CFM while helping to reduce operating noise.
- Easy start / low-voltage operation – DC brushless motor and circuit inverter help manage starting current and allow operation in lower supply conditions; motor operates down to -4 degree (Fahrenheit).
- Oil-less lubrication – Eliminates routine oil changes associated with lubricated compressors.
- Mode and speed control – Regular and Quiet modes change motor RPM (2,450 / 1,400) to balance performance and noise requirements.
- Safety and current management – Circuit inverter monitors electrical current to help prevent breaker trips in low supply areas.
Specifications
| Specifications and Details | |
|---|---|
| AIR DELIVERY SCFM @300PSI | 3.0 CFM @300PSI |
| AIR DELIVERY @100PSI | 3.3 CFM @100PSI |
| COMPRESSOR TANK CAPACITY (GALLONS) | 2.64 |
| Sound Pressure Level "LpA" (1m) | 67.0 dB (Regular Mode)/ 60.0 dB (Quiet mode) |
| HORSEPOWER (HIP) | 2 |
| LUBRICATION TYPE | Oil-less |
| RATE CURRENT | 13A |
| MOTOR RPM | 2,450 (Regular mode)/ 1,400 (Quiet mode) |
| Weight | 38.9lbs. |
| Tank configuration | Dual tank |
| Maximum Pressure | 500psi |
| 100 psi tool connections | 2 |
| 500 psi tool connections | 2 |
| Motor type | DC Brushless |
| Motor design | New Pat P. Outer Rotor Motor Design |
| Minimum operating temperature | -4 degree (Fahrenheit) |
