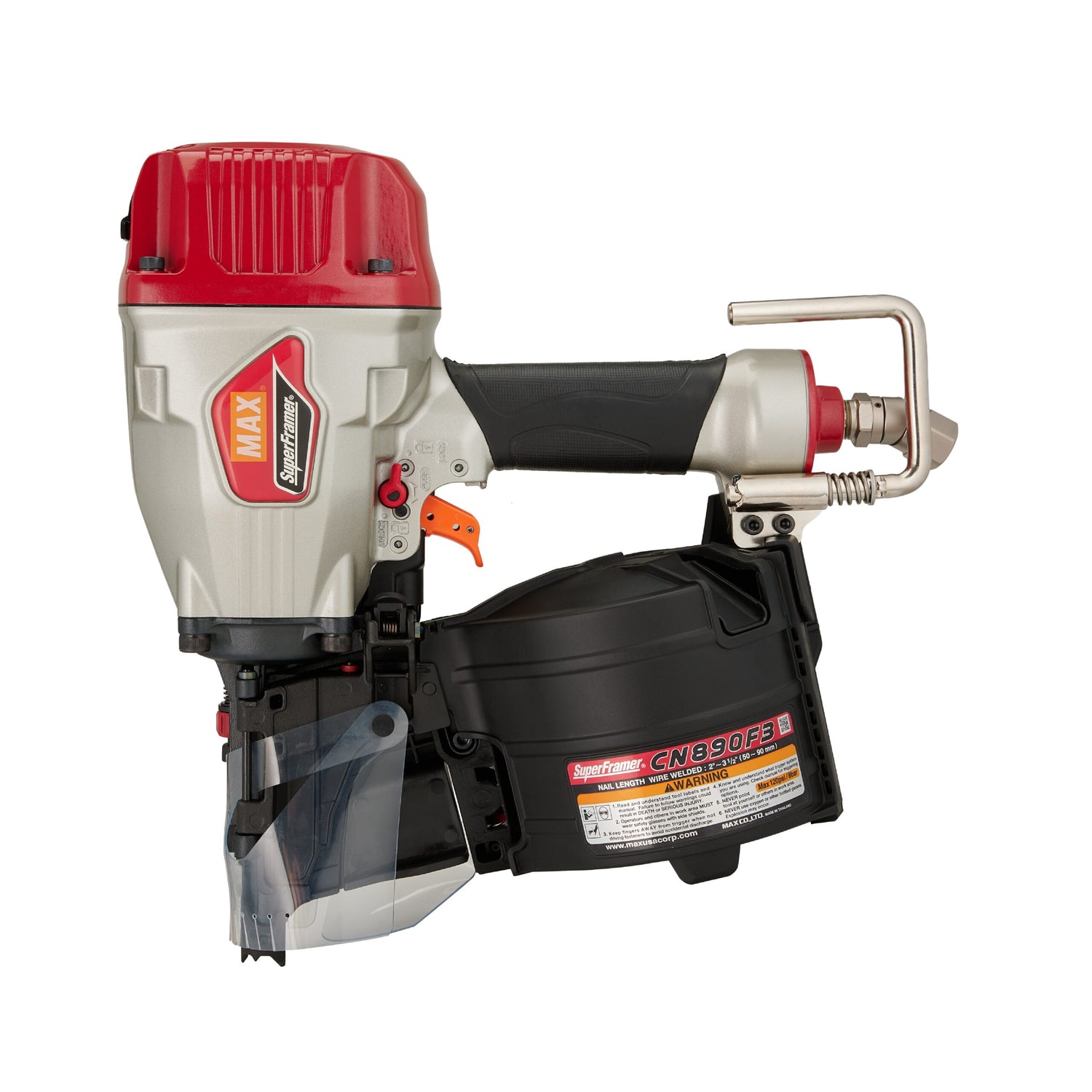

MAX CN890F3 Framing Coil Nailer up to 3-1/2"
MAX CN890F3 Framing Coil Nailer up to 3-1/2" est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
The MAX CN890F3 Framing Coil Nailer is a compact, lightweight pneumatic coil nailer designed for framing, sheathing, decking, subflooring, furring, and similar construction fastening applications. It drives 15-degree wire welded coil nails from 2" to 3-1/2", giving contractors a wide fastening range in one framing nailer.
At only 8.4 lb, the CN890F3 helps reduce arm fatigue during continuous use while still offering jobsite-ready performance. The tool includes an easy switchable trigger system, with a sequential trigger installed from the factory and a contact fire trigger included in the carton for rapid continuous fastening when needed.
For durability and daily jobsite convenience, the CN890F3 features a patented self-cleaning maintenance-free end cap filter, pointy teeth on the contact arm for secure toe-nailing, a dependable rafter hook, easy-load magazine, comfortable rubber grip, depth adjustment dial, and tangle-free swivel plug.
- Framing Coil Nailer – Drives 15-degree wire welded coil nails for framing and construction fastening
- 2" to 3-1/2" Nail Range – Handles common framing, sheathing, decking, subflooring, and furring applications
- Lightweight 8.4 lb Design – Helps reduce arm fatigue during continuous use

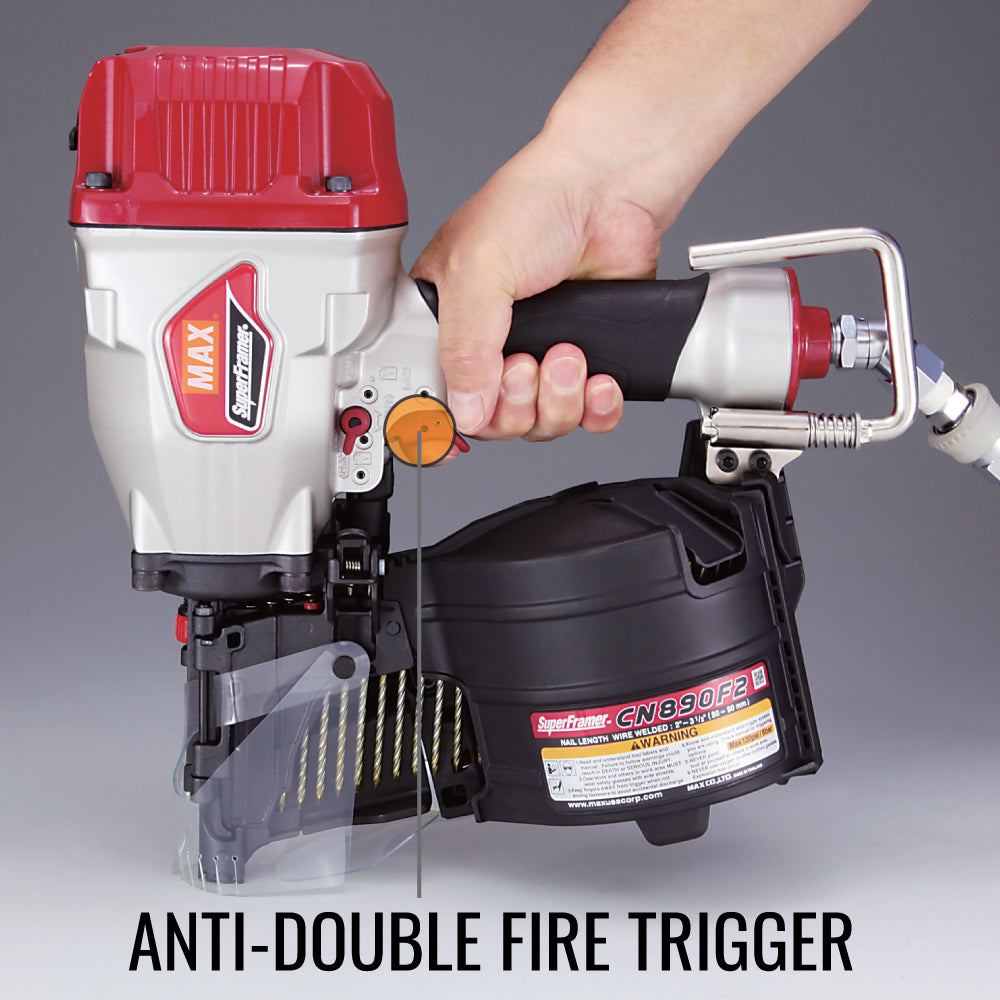

- Sequential & Contact Trigger Options – Sequential trigger installed with contact fire trigger included in the box
- Tool-Free Trigger Switching – No special tool required to switch trigger setup

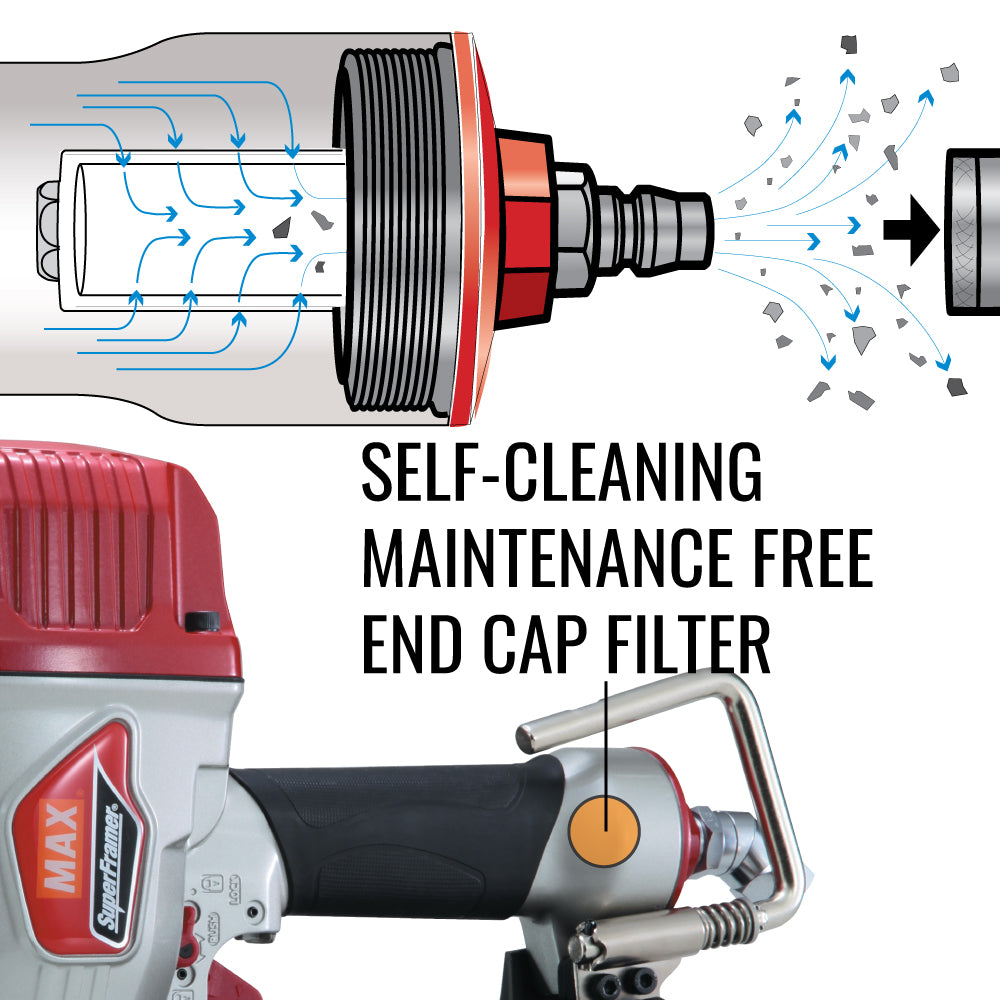

- Self-Cleaning End Cap Filter – Helps capture and eject debris before it enters the tool
- Safe Toe-Nailing Contact Arm – Pointy teeth help grip the work surface and reduce slipping

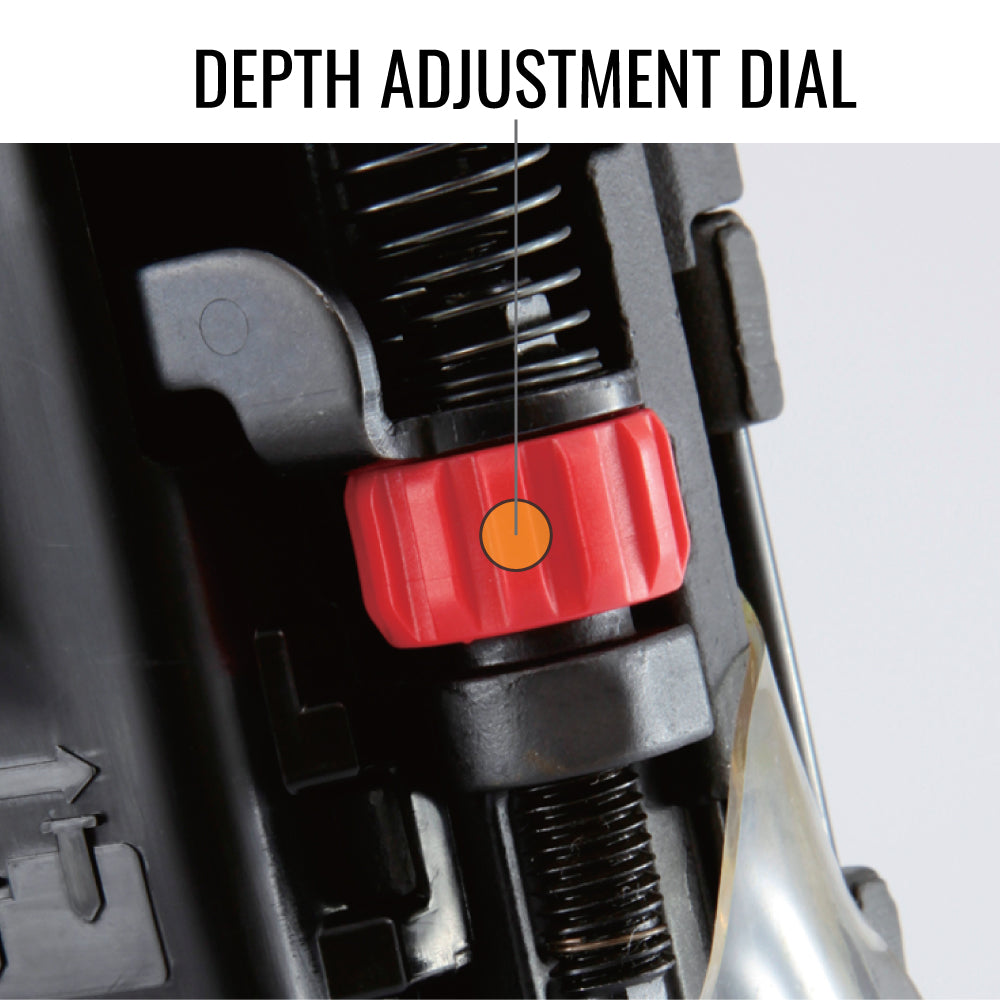

- Depth Adjustment Dial – Allows fast fastening depth changes

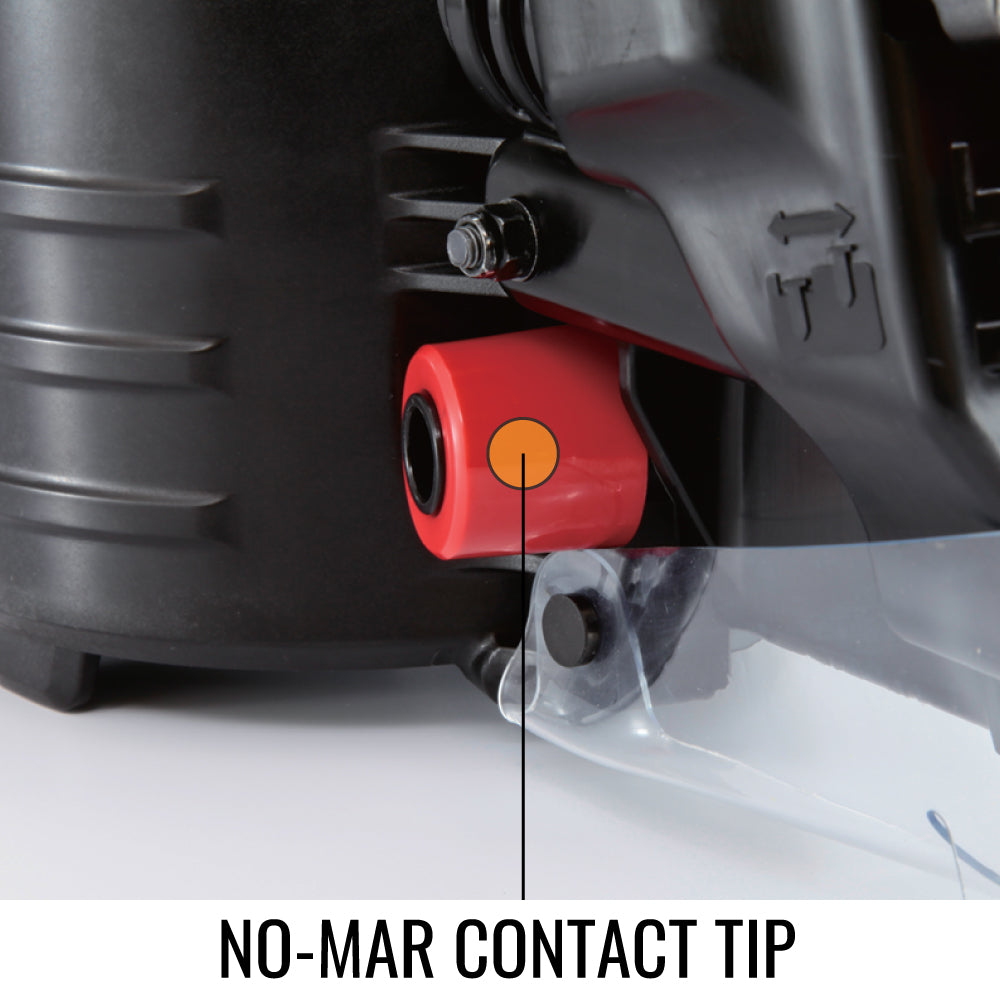

- No-Mar Contact Tip – Helps reduce surface marking where needed

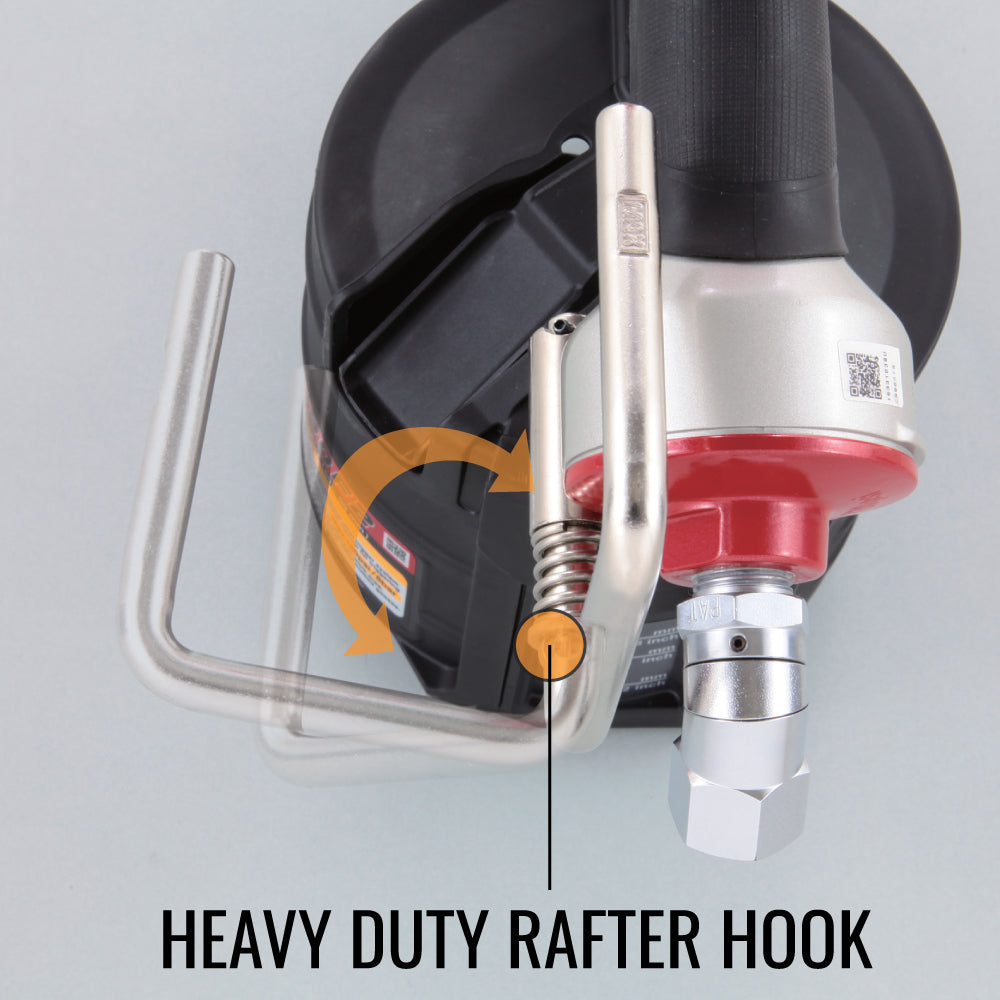

- Dependable Rafter Hook – Convenient hook for jobsite use

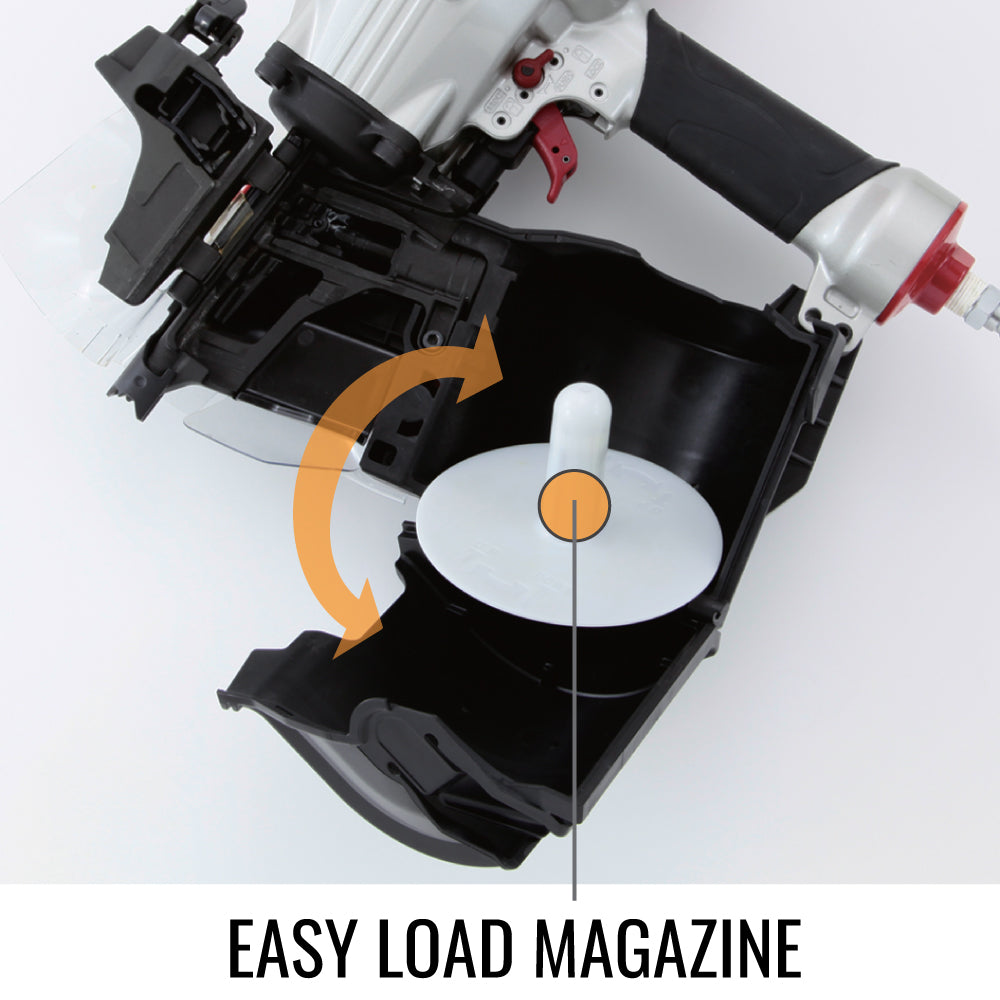

- Easy-Load Magazine – 300-nail capacity for efficient fastening

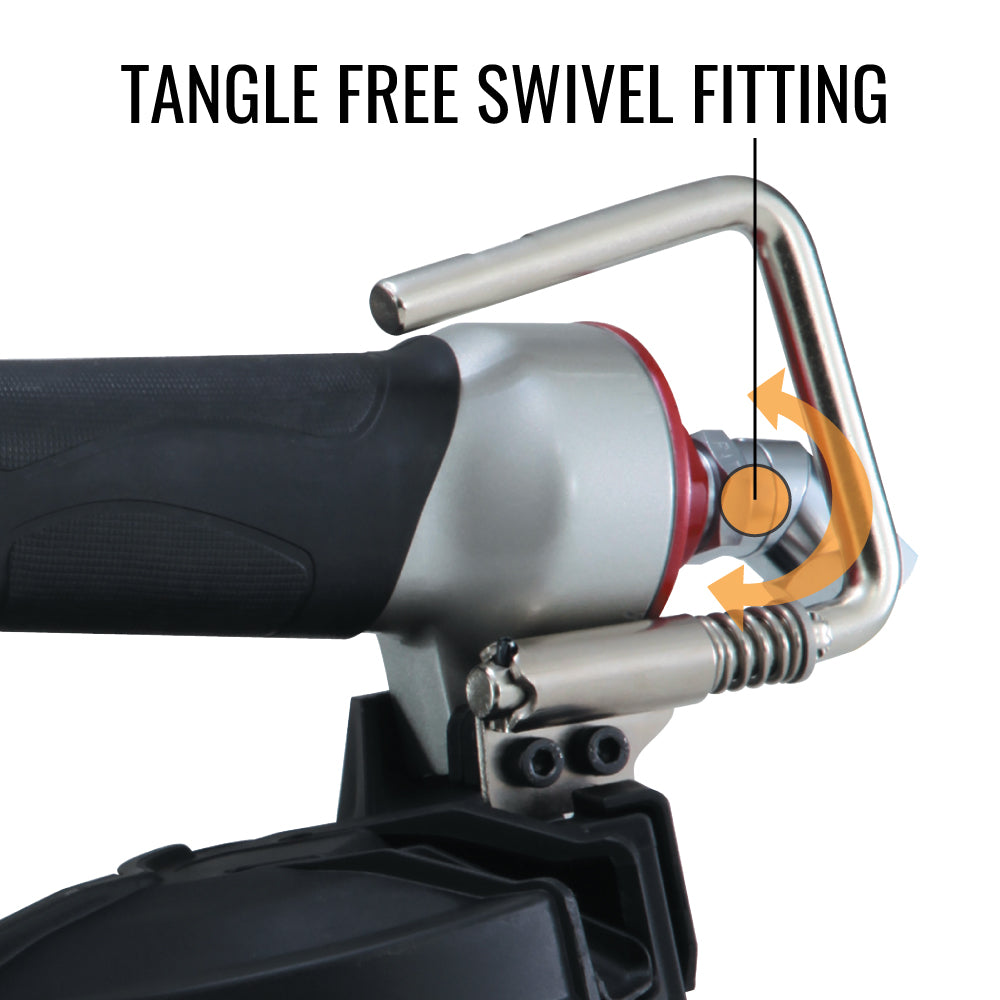

- Tangle-Free Swivel Plug – Helps improve hose movement on the jobsite
Specifications
| Specifications and Details | |
|---|---|
| Brand | MAX |
| Model | CN890F3 |
| SKU | CN890F3 |
| UPC | 093818301391 |
| Product Type | Framing Coil Nailer |
| Power Source | Pneumatic |
| Nail Collation | 15° Wire Welded Coil Nails |
| Nail Length | 2" – 3-1/2" |
| Nail Head Diameter | .256" – .303" |
| Nail Shank Diameter | .099" – .131" |
| Shank Type | Smooth Shank, Screw Shank, Ring Shank |
| Load Capacity | 300 Nails |
| Operating Pressure | 70–100 PSI |
| Air Consumption | 0.11 ft³/cycle @ 100 PSI |
| Trigger | Sequential Trigger Installed; Contact Fire Trigger Included |
| Trigger Switching | Tool-Free |
| Depth Adjustment | Depth Adjustable Dial |
| Contact Tip | No-Mar Contact Tip |
| Filter | Self-Cleaning Maintenance-Free End Cap Filter |
| Rafter Hook | Included |
| Swivel Plug | Tangle-Free Swivel Plug |
| Applications | Framing, Sheathing, Decking, Subflooring, Furring |
| Dimensions (H × W × L) | 13-1/2" × 5" × 13-5/8" |
| Weight | 8.4 lb |
