MAX HN120 PowerLite® High Pressure Concrete Pinner up to 2-1/2"

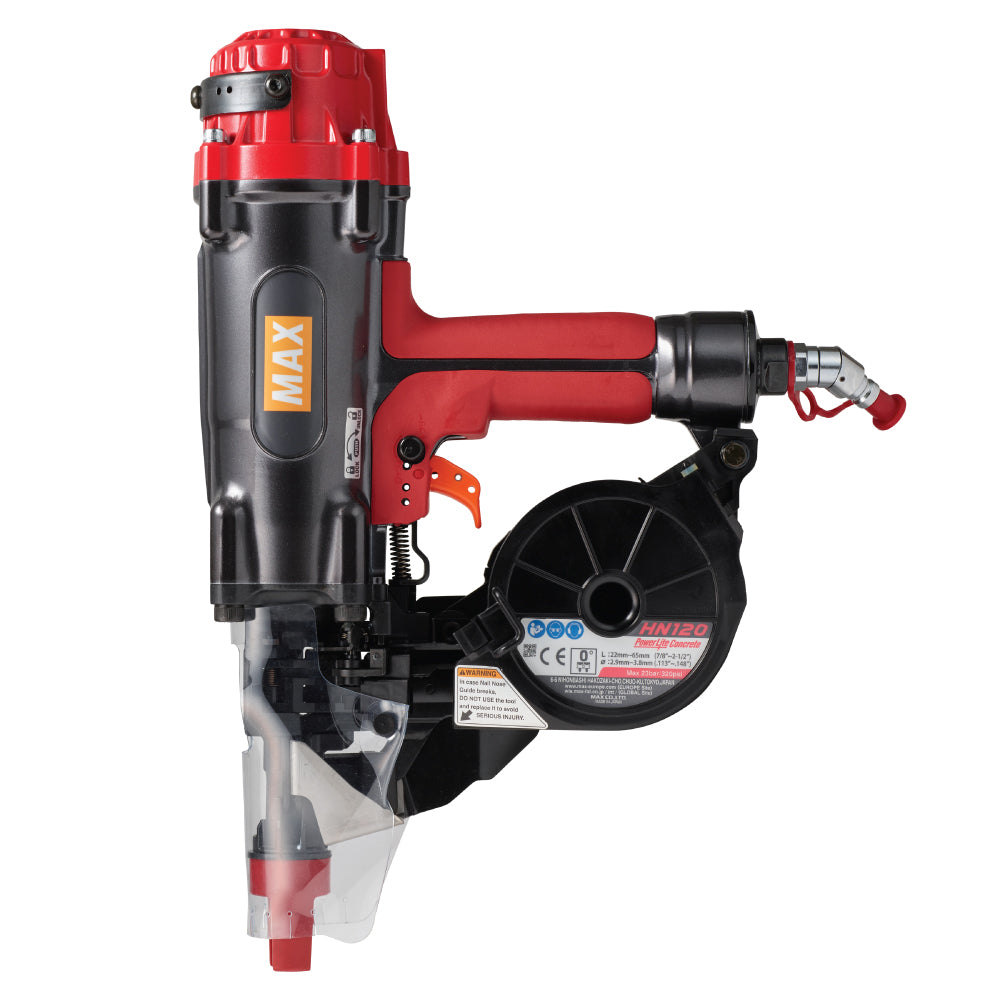

The MAX HN120 PowerLite is a lightweight, high-pressure concrete pinner designed for fastening into concrete, steel and wood. At only 6.4 lbs., the tool is engineered to deliver driving power with reduced recoil compared to conventional powder actuated tools.
This pneumatic pinner operates without powder loads or a special license and is powered by a high-pressure PowerLite system. It can drive pins through a variety of materials and produces 2,231 inch‑lbs. driving force when using .307" head pins into concrete or steel.
Built for frequent use, the HN120 includes a large 50‑pin magazine and a patented self-cleaning, maintenance‑free end cap filter that captures and ejects foreign substances when the air hose is disconnected. The sequential fire trigger supports controlled single-shot fastening.

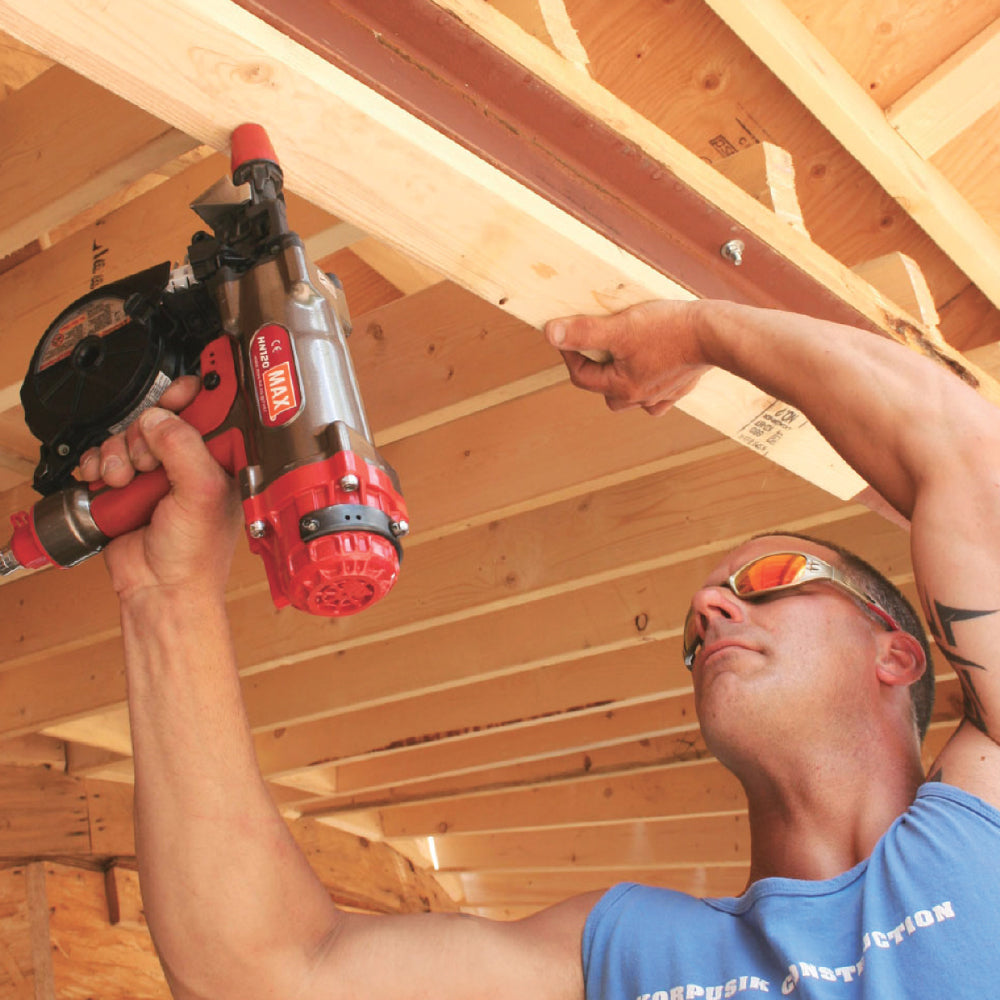

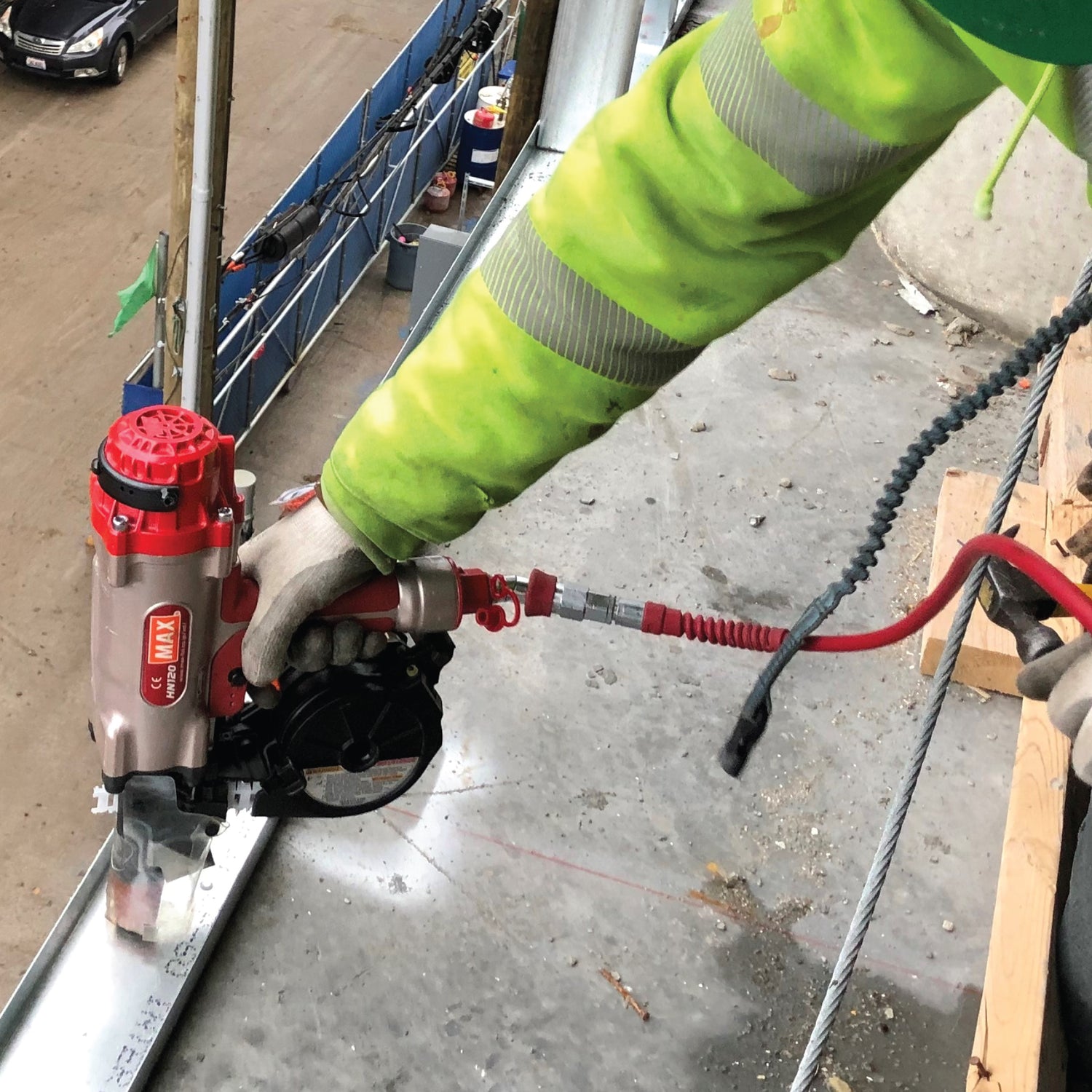

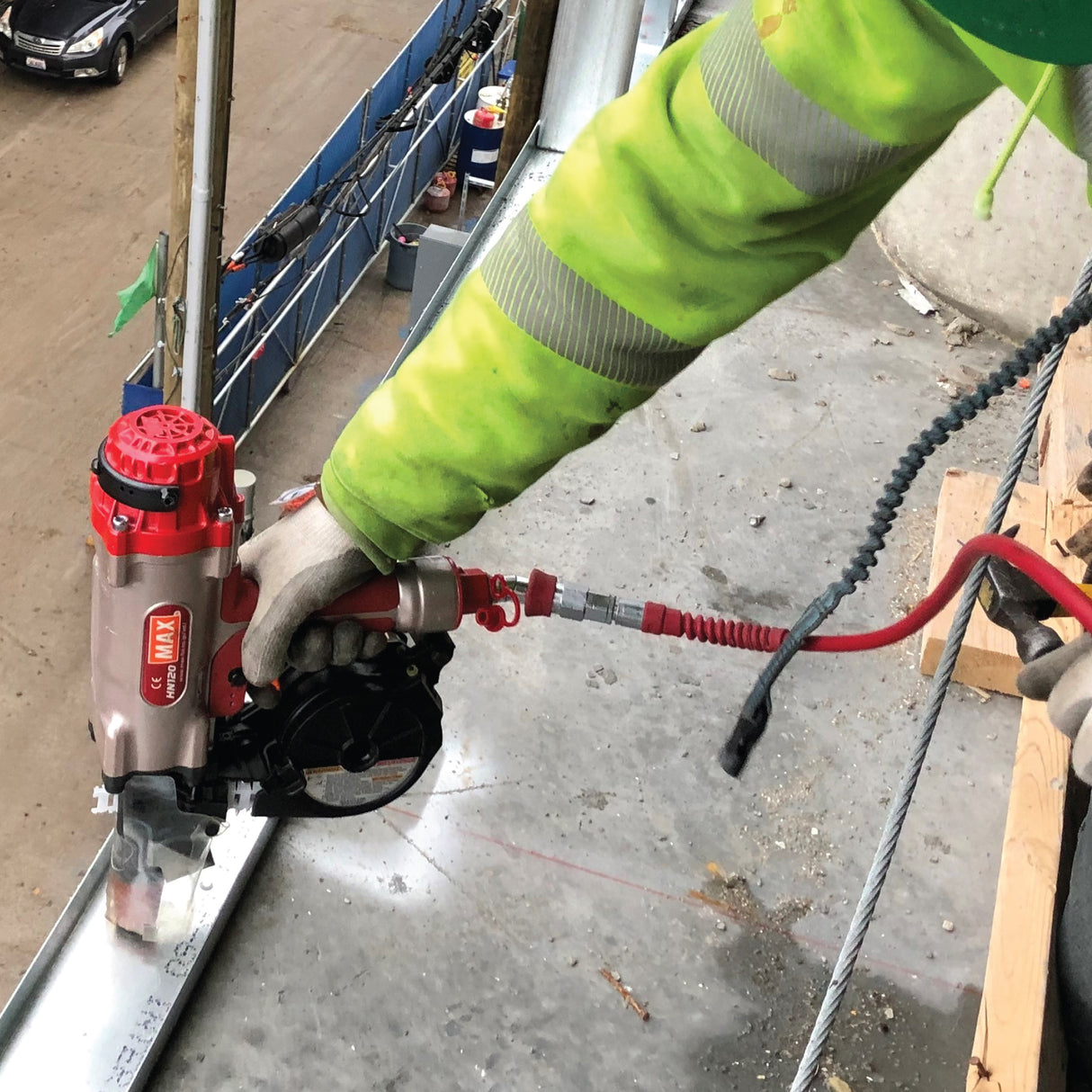

Common applications include metal track to concrete, metal track to steel, wood to concrete and wood to steel I-beam installations. Safety accessories and carry items are listed with the tool to help support jobsite use.
- Lightweight design – At 6.4 lbs., easier to carry and manoeuvre on overhead and extended‑use jobs with reduced recoil.
- No powder loads or license required – Operates without powder actuated loads and does not require a license to use, offering an alternative to conventional PAT tools.

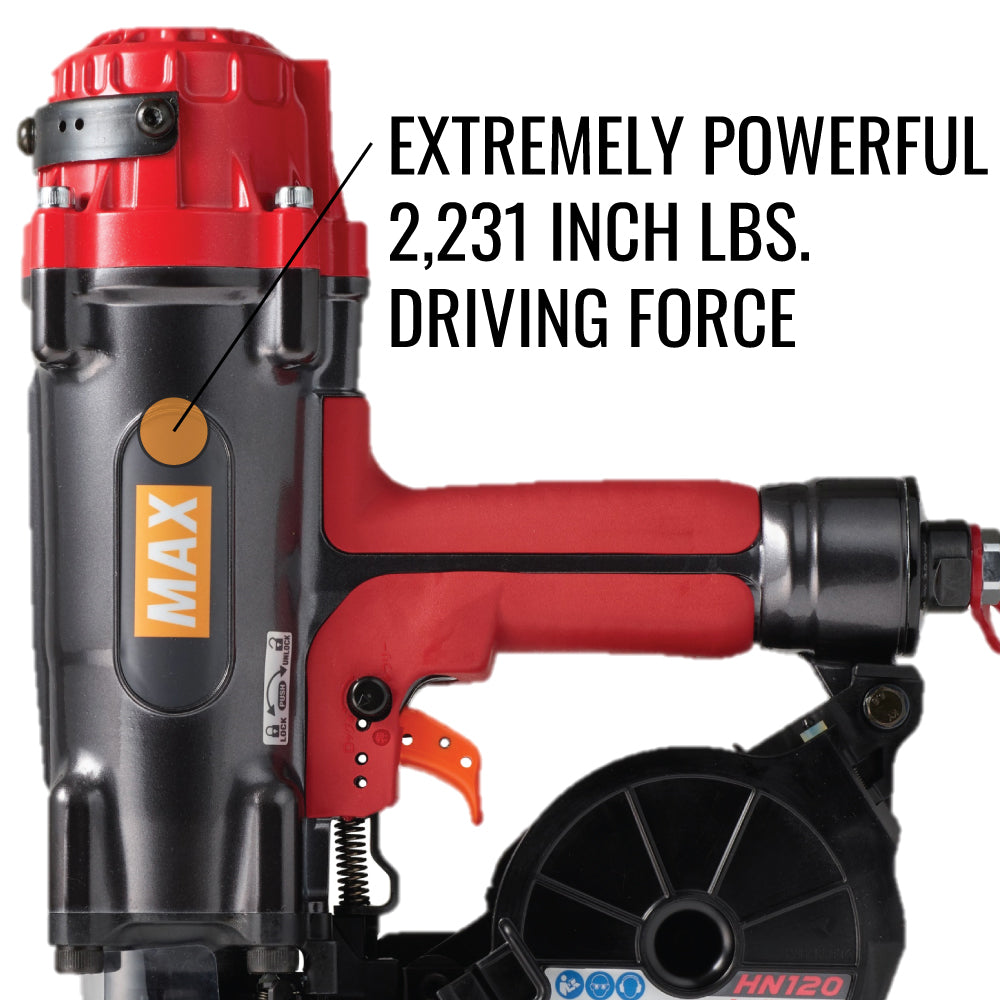

- High driving force – Delivers 2,231 inch‑lbs. of driving force for .307" head pins into concrete or steel for reliable penetration.

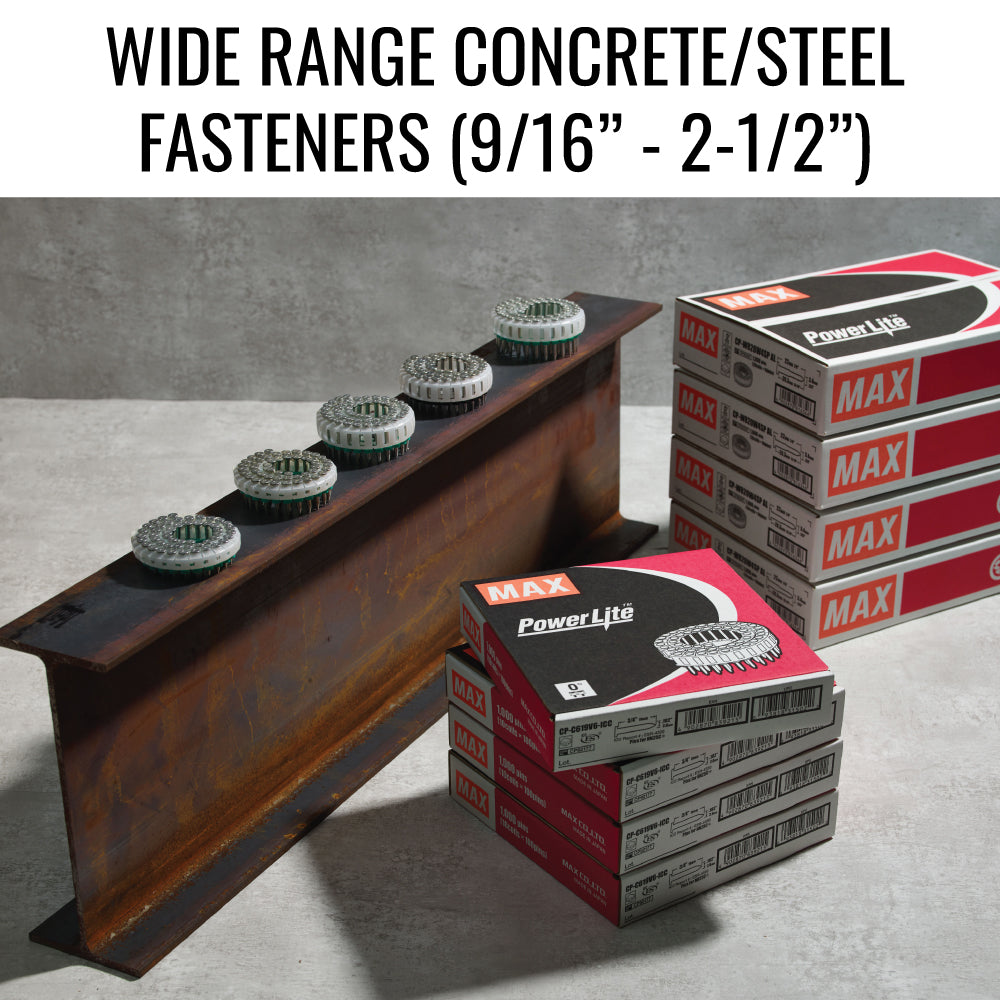

- Supports a range of fasteners – Can shoot various fasteners into wood, steel or concrete, including AccuEmbed .157" pins.

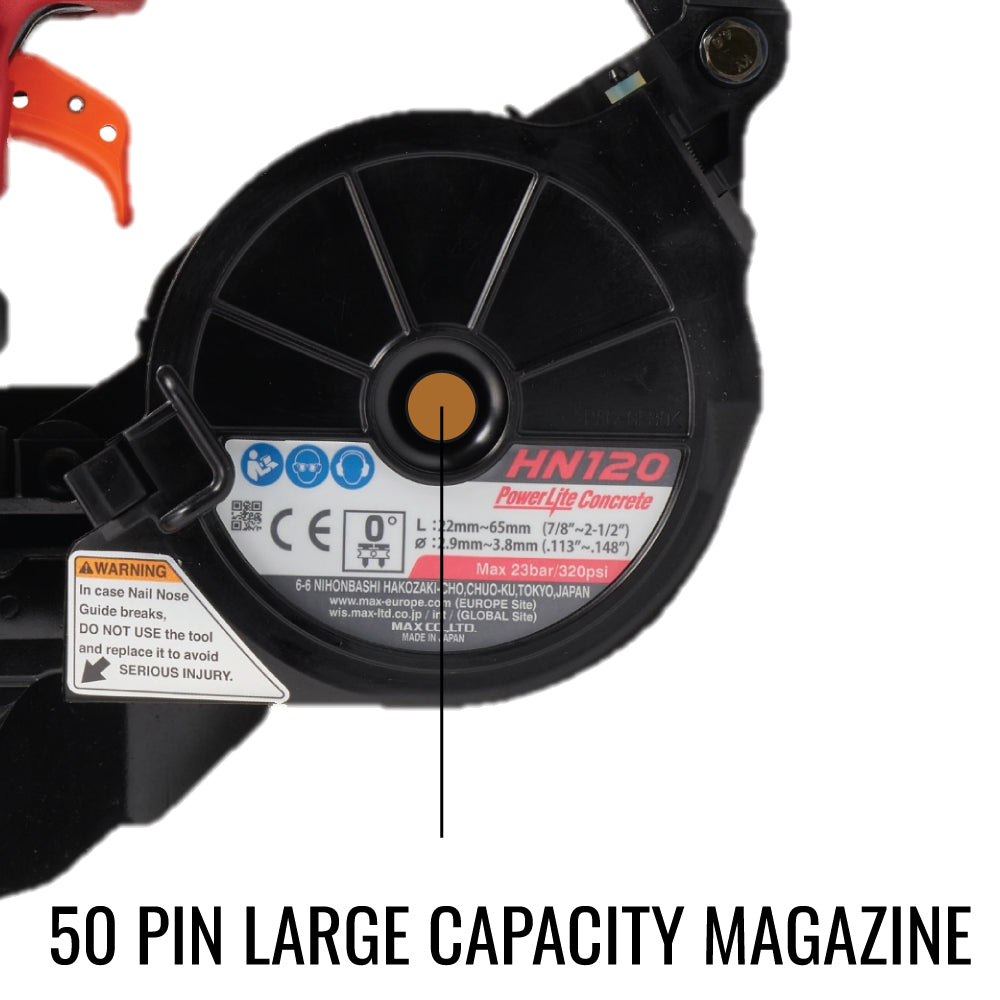

- Large capacity magazine – 50‑pin magazine reduces reload frequency and lowers operating downtime.

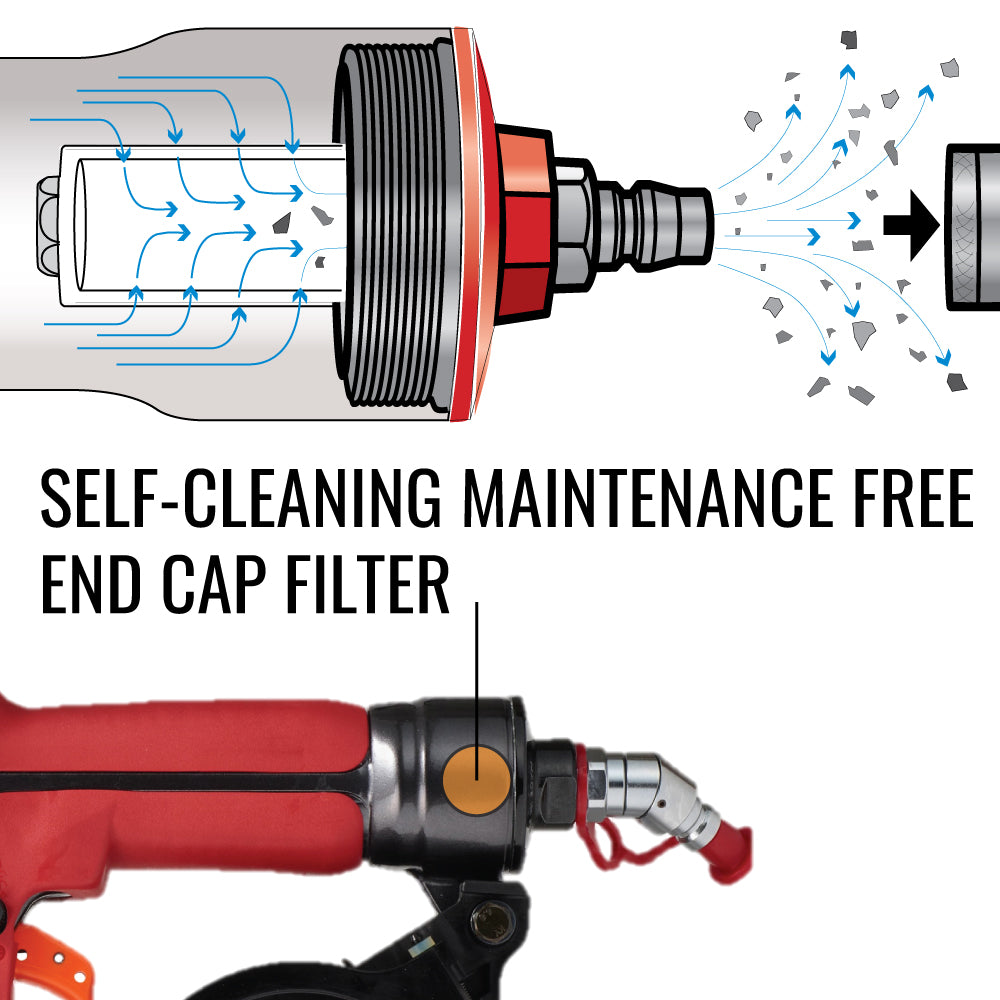

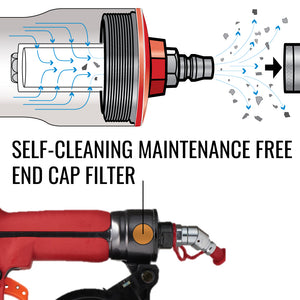

- Self-cleaning end cap filter – Patented, maintenance‑free filter captures foreign substances and automatically ejects them when the air hose is disconnected.
- Sequential fire trigger – Provides controlled, single-shot operation for precise placement of each fastener.
- Efficient air use – Low air consumption (0.166 ft3/cycle) and operation across the specified pressure range help manage compressor demand.
Specifications
| Specifications and Details | |
|---|---|
| MINIMUM OPERATION PRESSURE | 210 PSI |
| MAXIMUM OPERATION PRESSURE | 320 psi |
| AIR INLET SIZE | 7/16" |
| MAGAZINE CAPACITY | 50 |
| DEPTH CONTROL | No |
| JAM CLEARING | No |
| TRIGGER TYPE | Sequential Fire Trigger |
| AIR CONSUMPTION (FT3/CYCLE) | 0.166 |

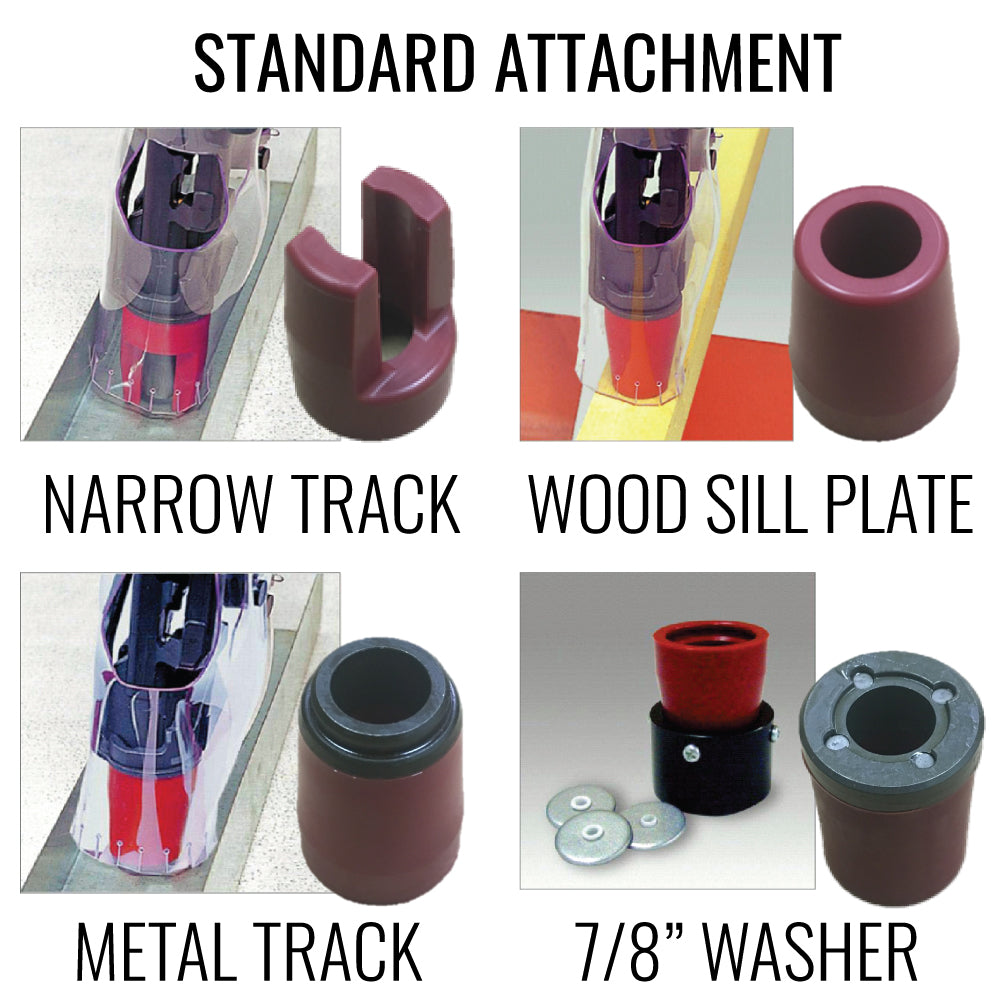

| ACCESSORIES | Safety glasses, Nose attachments, Carry case |
| Weight | 6.4 lbs. |
| Driving force (for .307" head pins) | 2,231 inch lbs. |
