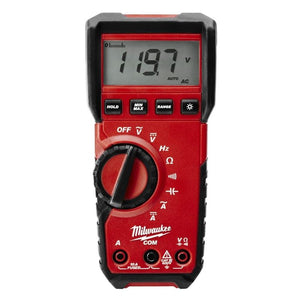

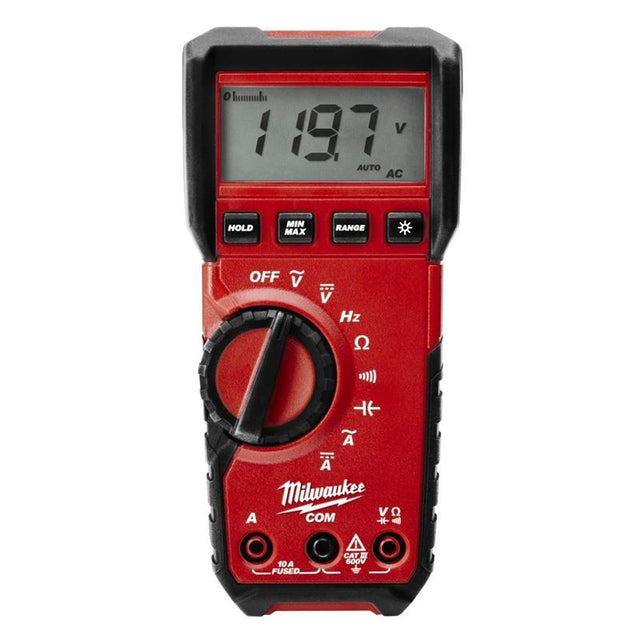

2216-20 Digital Multimeter
Earn [points_amount] when you buy this item.
2216-20 Digital Multimeter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

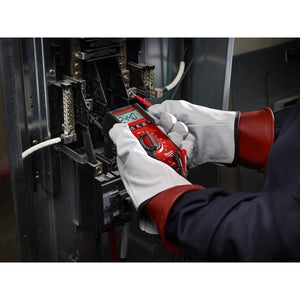

Heavy duty True-Rms meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 digital multimeter features: true RMS measurement to accurately measure all applications; CATIII 600 V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 V; DC voltage range of 600 millivolts to 600 V DC; resistance measurement from 600 ohms to 40 m Ohm; frequency measurement from 10 Hz to 50 kilohertz; detects continuity at less than 30 ohms; current measurement to 10 A AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories.
(1) Digital Multimeter (2216-20), (1) Electrical Test Lead SetElectrical Test Lead Set, (2) AA BatteriesAA Batteries, (1) ManualManual True-RMS for accurate measurement in all applications
True-RMS for accurate measurement in all applications
Wide voltage range to 600 AC /DC volts
Resistance range from 600 Ohm to 40 mOhm
Auto range to mV
Frequency measurements from 10 Hz to 50 kHz
Measures current to 10 A AC/DC
Rugged over-molding increases durability and user grip
Cat III 600 V for increased safety
Capacitance to 1000 F
Specifications
| General Switch Type | Dial |
|---|---|
| Power Source | Cordless |
| Display Type | Standard LCD |
| Battery. Type | Alkaline (AA) |
| Length | 6-1/2" |
| Product Type | Digital Multimeters |
| Voltage AC | 6.00mV - 600V |
| Tool Warranty | 5 Years |
| TRMS | Yes |
| Resistance | 40M |
| Continuity | Audible |
| Capacitance | 1,000F |
| Voltage DC | 600.0mV - 600V |
| Safety Category Rating | CAT III 600V |
| Frequency | 2.00 Hz - 50.00 kHz |
| Current AC / DC | 10.00A |
| Backlight | Yes |
| HOLD / MIN / MAX | Yes |
| Bargraph | Yes |
| Rugged Over molding | Yes |
| Accessory Attachment | Magnetic Meter Holder |
| Calibration Needed | Yes - Recommend Calibration Service Once Every Year |
