| SKU:
EXCM341-305GD
Bosch EXCM341-305GD 12 In. Dual-Bevel Glide Miter Saw
Bosch EXCM341-305GD 12 In. Dual-Bevel Glide Miter Saw is backordered and will ship as soon as it is back in stock.

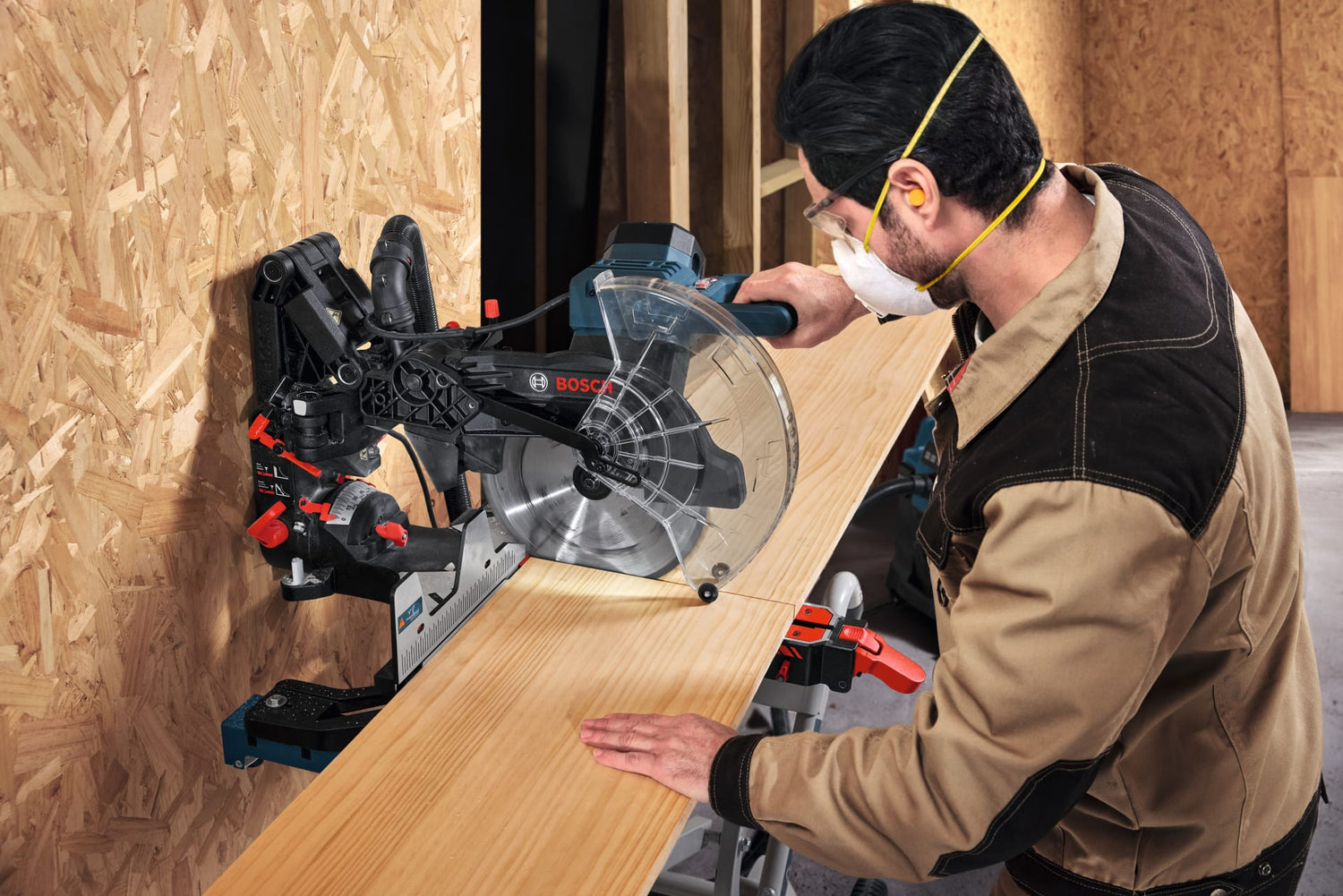

The Bosch EXCM341-305GD 12 In. Dual-Bevel Glide Miter Saw is a corded glide miter saw designed for smooth cutting action and accurate compound cuts. Bosch’s Compact Glide System provides a space-saving layout that allows placement closer to a wall while maintaining full cutting travel.

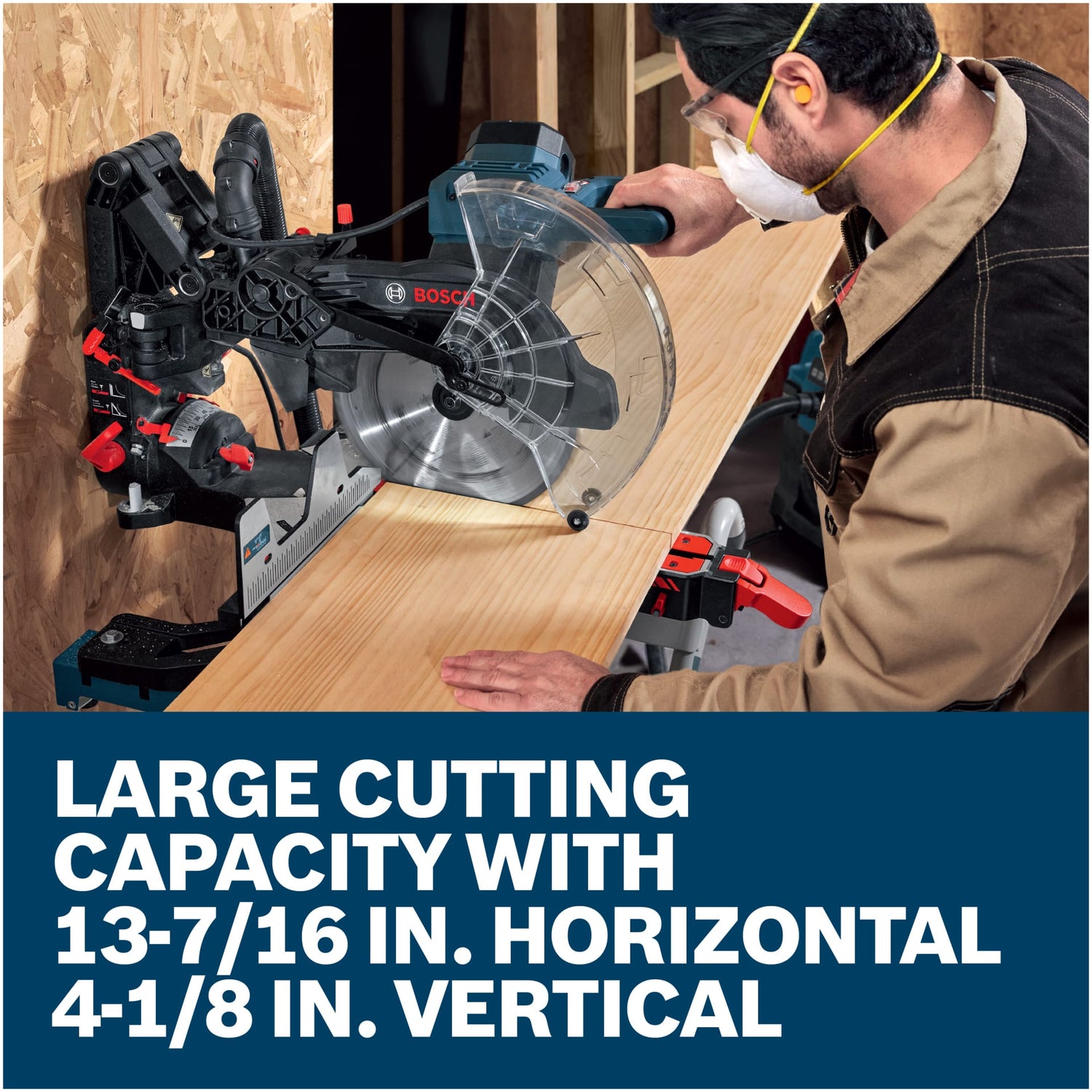

This saw offers large cutting capacity—13-7/16 in. horizontally and 4-1/8 in. vertically—so it can handle a broad range of material sizes, including base and crown molding in several orientations. Built-in length stops and integrated base extensions speed repetitive cuts and improve material support.
The tool includes features to help ensure precise layout and cleaner work: a shadow LED cutline for visual alignment, easy-to-read bevel stops at common angles, cam-lock angle adjustments, and an optimized dust-management path with a large dust chute.
Controls and angle ranges support versatile compound work: a 47° dual-bevel function, wide miter angle range, and multiple positive stops let you set common miter and bevel positions quickly for trim and framing applications.

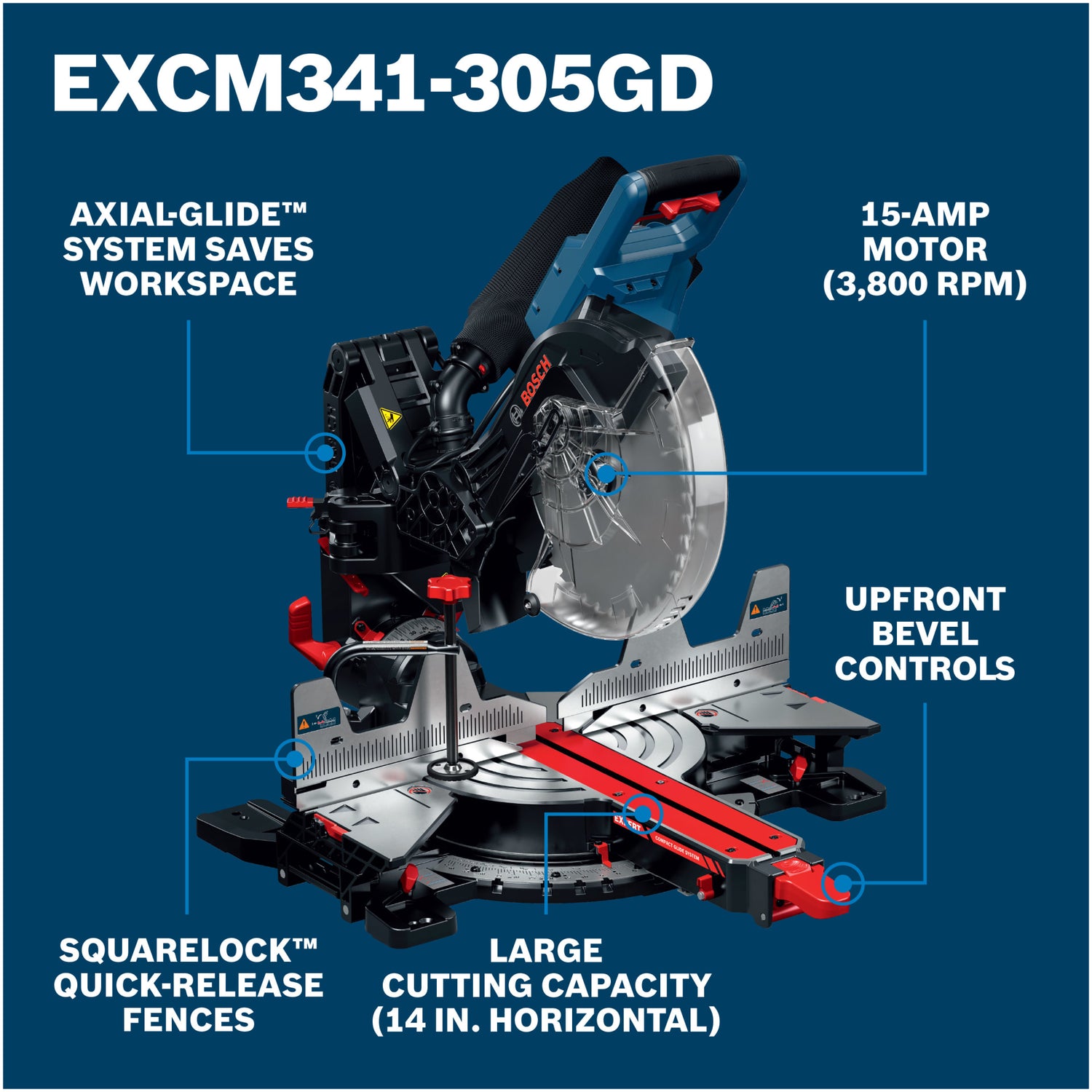

- Bosch Compact Glide System – Delivers smooth cutting motion and a space-saving layout that permits placement closer to a wall while maintaining glide travel.
- Large cut capacity – 13-7/16 in. horizontal and 4-1/8 in. vertical capacity handles a wide range of material sizes for trim and stock work.
- Crown and base molding capacities – Supports common molding cuts: up to 7 in. base molding against the fence and multiple crown configurations (38° and 45°) as specified.
- 47° dual-bevel function – Allows large compound bevel cuts to either side of the workpiece for complex trim work.

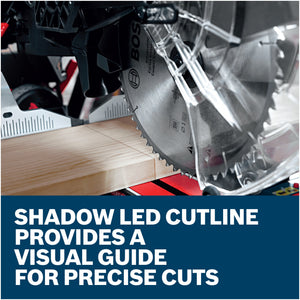

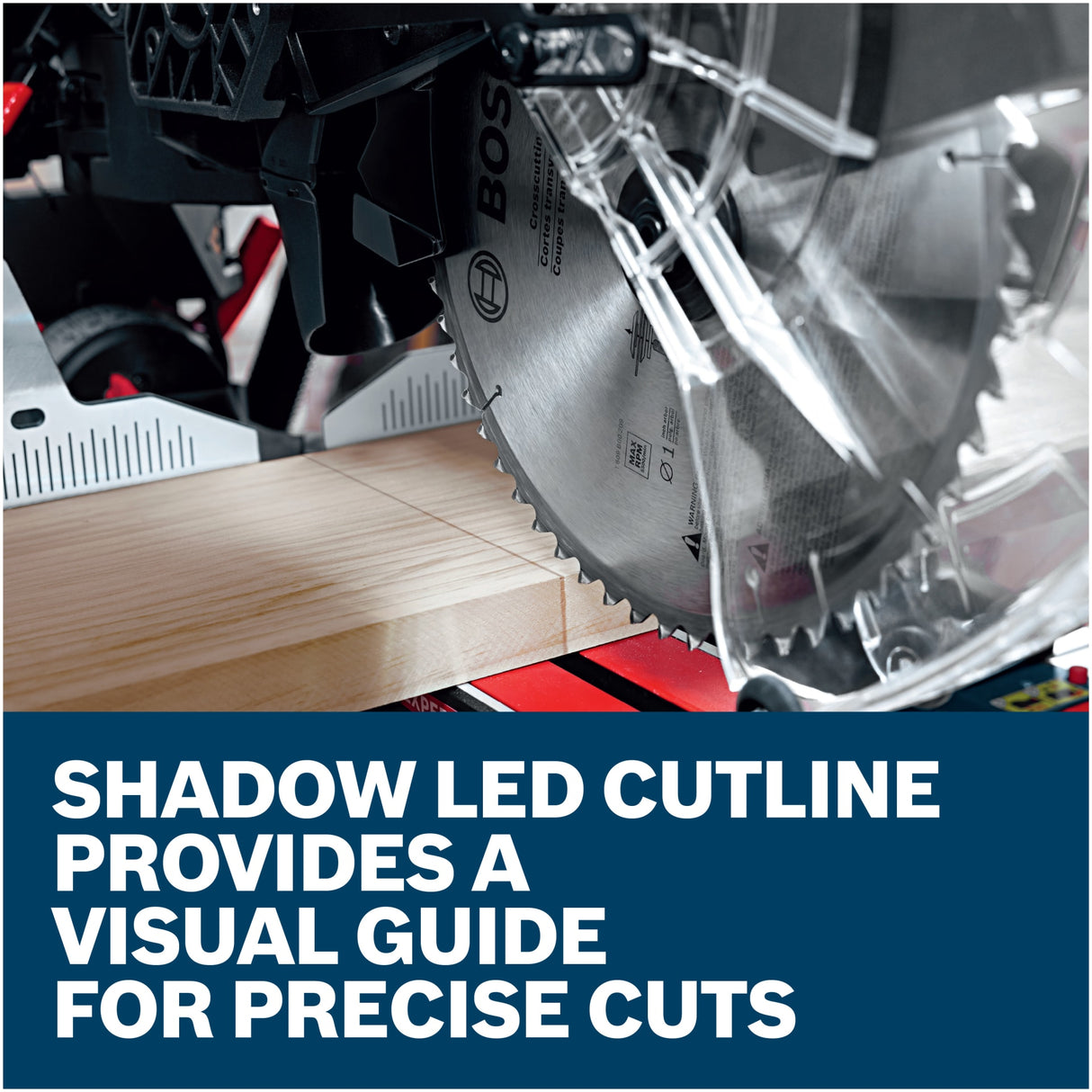

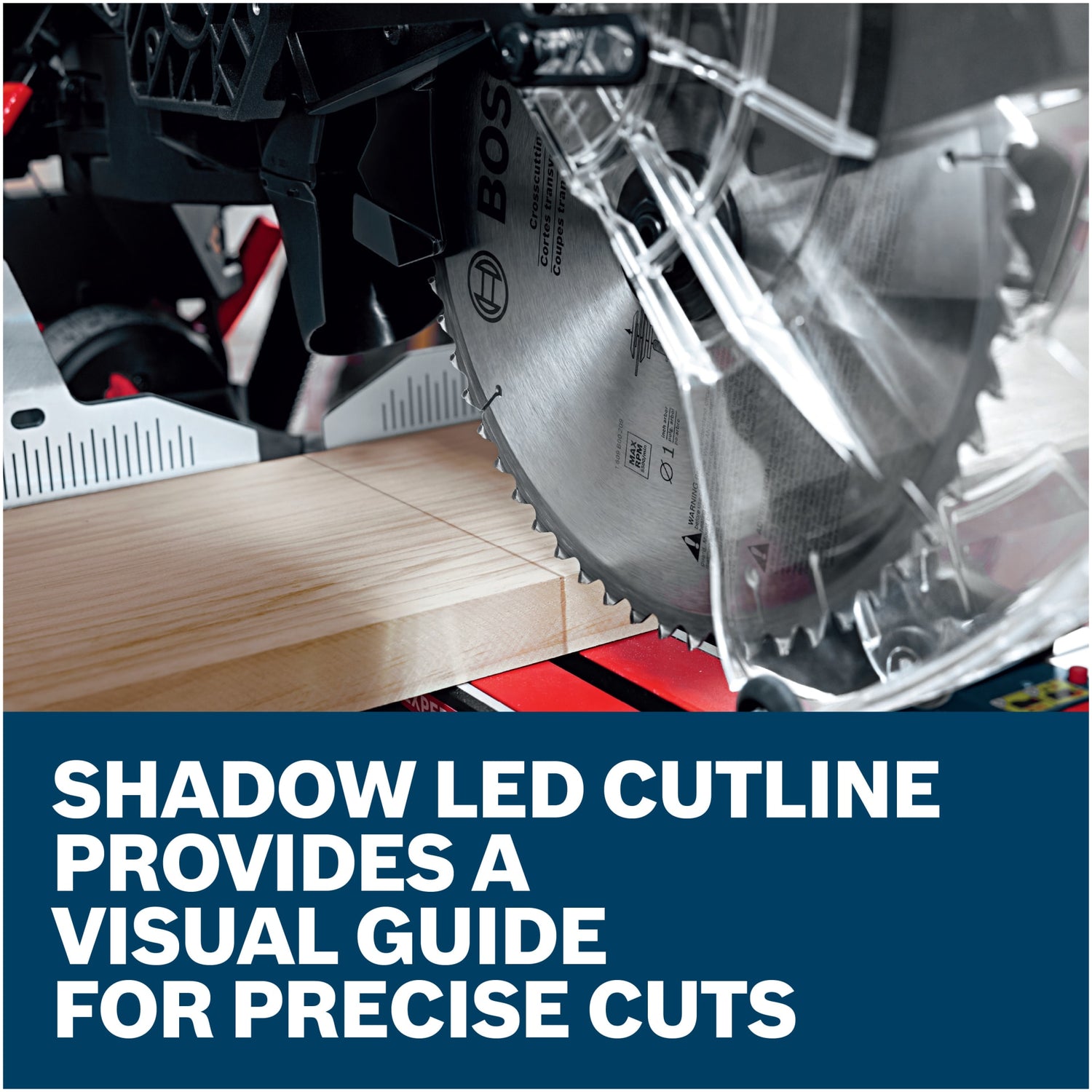

- Shadow LED cutline – Provides a clear visual guide for lining up precise cuts without manual marking adjustments.
- Pre-set bevel stops – Bevel stops at 0°, 33.9°, 45° and 47° (L/R) enable quick, repeatable bevel settings.
- Wide miter range with positive stops – Miter range and positive detents let you quickly select common angles for mitered joints and compound cuts.
- Integrated base extensions and length stops – Extend material support and speed repetitive cuts for longer stock and trim runs.
- Cam-lock angle adjustment – Provides quick, secure locking of the miter angle for stable cutting.
- Enhanced dust management – Large dust chute and optimized design help remove debris and keep the work area cleaner.
- Included accessories – Shipped with a premium 12 in. 60-tooth carbide-tipped blade, wrench, toolless vertical work clamp and dust bag/assembly.
Specifications
| Specifications and Details | |
|---|---|
| Amperage | 15 |
| Bevel Angle Range | 47° left and 47° right |
| Bevel Stops | 0°, 33.9°, 45° and 47° (L/R) |
| Blade Diameter (in) | 12 |
| Blade Size | 12" |
| Category | Compound Miter Saws |
| Dust Collection | Yes |
| Electric Motor Brake | Yes |
| Height in | 29.1 " |
| Length in | 33.3 " |
| Max. Base Molding Against Fence | 7" |
| Max. Crown Molding (38° Spring) Angled Against Fence | 6-3/4" |
| Max. Crown Molding (45° Spring) Angled Against Fence | 7-1/2" |
| Max. Cut Capacity - 0° Miter 0° Bevel | 4-1/8" x 13-7/16" |
| Max. Cut Capacity - 0° Miter 45° Left Bevel | 2" x 13-7/16" |
| Max. Cut Capacity - 0° Miter 45° Right Bevel | 1-1/2" x 13-7/16" |
| Max. Cut Capacity - 45° Miter 0° Bevel | 4-1/8" x 9-7/16" |
| Max. Cut Capacity - 45° Miter 45° Left Bevel | 2" x 9-7/16" |
| Max. Cut Capacity - 45° Miter 45° Right Bevel | 1-1/2" x 9-7/16" |
| Miter Angle Range | 52° Left, 60° Right |
| Miter Detents | 0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right) |
| Miter Positive Stops | 0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right) |
| No Load RPM | 4,000 |
| Voltage | 120V |
| Weight | 67 lb |
| Width in | 26 " |
| Works With | Miter Saw Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Anti-Static Vacuum Hoses, VH1622A and VH1635A |
| Includes | (1) EXCM341-305GD 12 In. Dual-Bevel Glide Miter Saw; (1) Premium 12 In. 60-Tooth Carbide-Tipped Blade; (1) Wrench; (1) Toolless Vertical Work Clamp; (1) Dust Bag/Assembly |
Bosch EXCM341-305GD 12 In. Dual-Bevel Glide Miter Saw
The Bosch EXCM341-305GD 12 In. Dual-Bevel Glide Miter Saw is a corded glide miter saw designed for smooth cutting action and accurate compound cuts. Bosch’s Compact Glide System provides a space-saving layout that allows placement closer to a wall while maintaining full cutting travel.
This saw offers large cutting capacity—13-7/16 in. horizontally and 4-1/8 in. vertically—so it can handle a broad range of material sizes, including base and crown molding in several orientations. Built-in length stops and integrated base extensions speed repetitive cuts and improve material support.
The tool includes features to help ensure precise layout and cleaner work: a shadow LED cutline for visual alignment, easy-to-read bevel stops at common angles, cam-lock angle adjustments, and an optimized dust-management path with a large dust chute.
Controls and angle ranges support versatile compound work: a 47° dual-bevel function, wide miter angle range, and multiple positive stops let you set common miter and bevel positions quickly for trim and framing applications.
