| SKU:
D1490CF

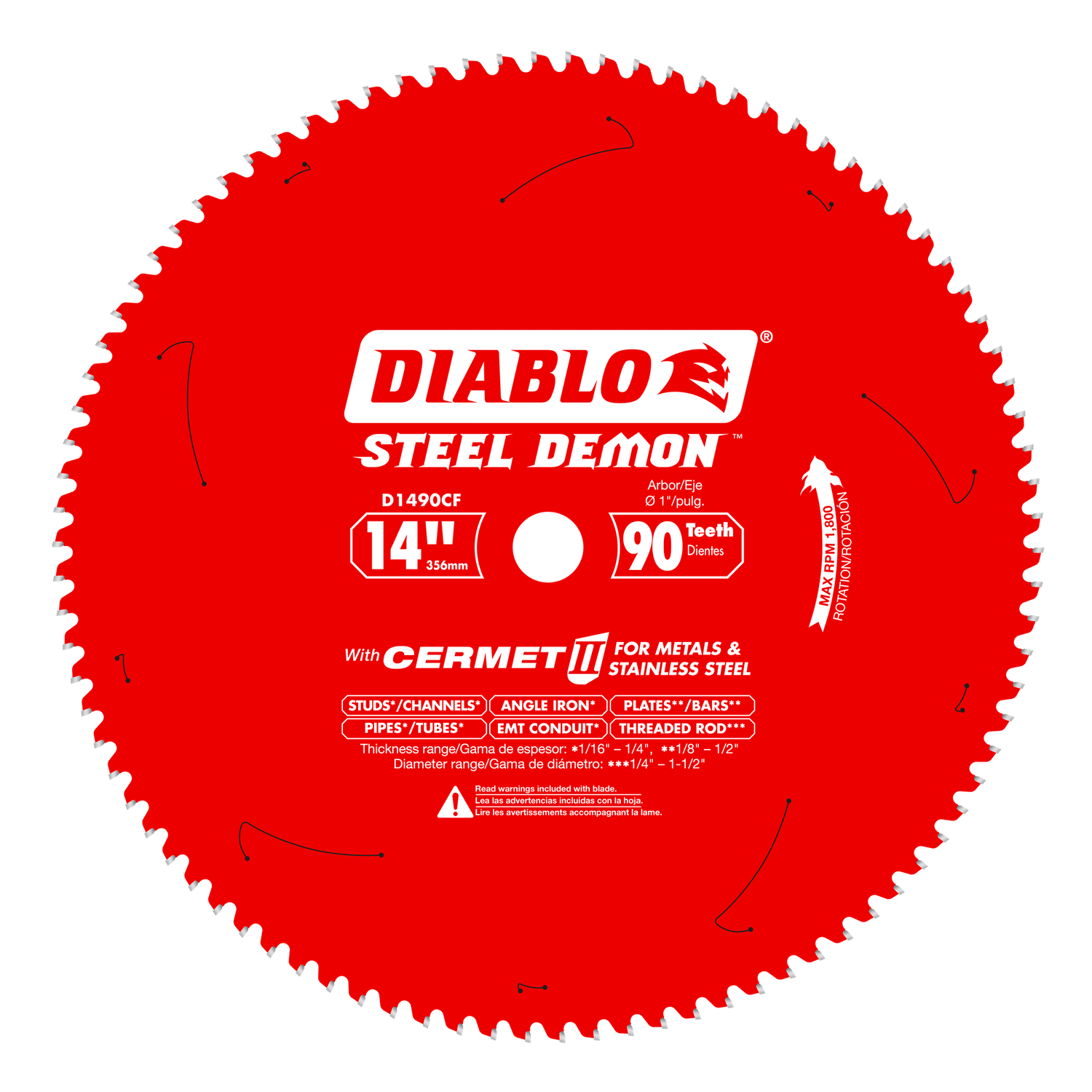

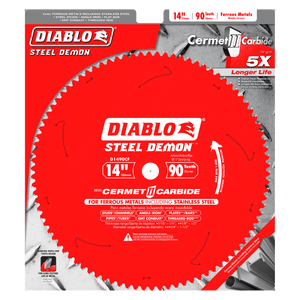

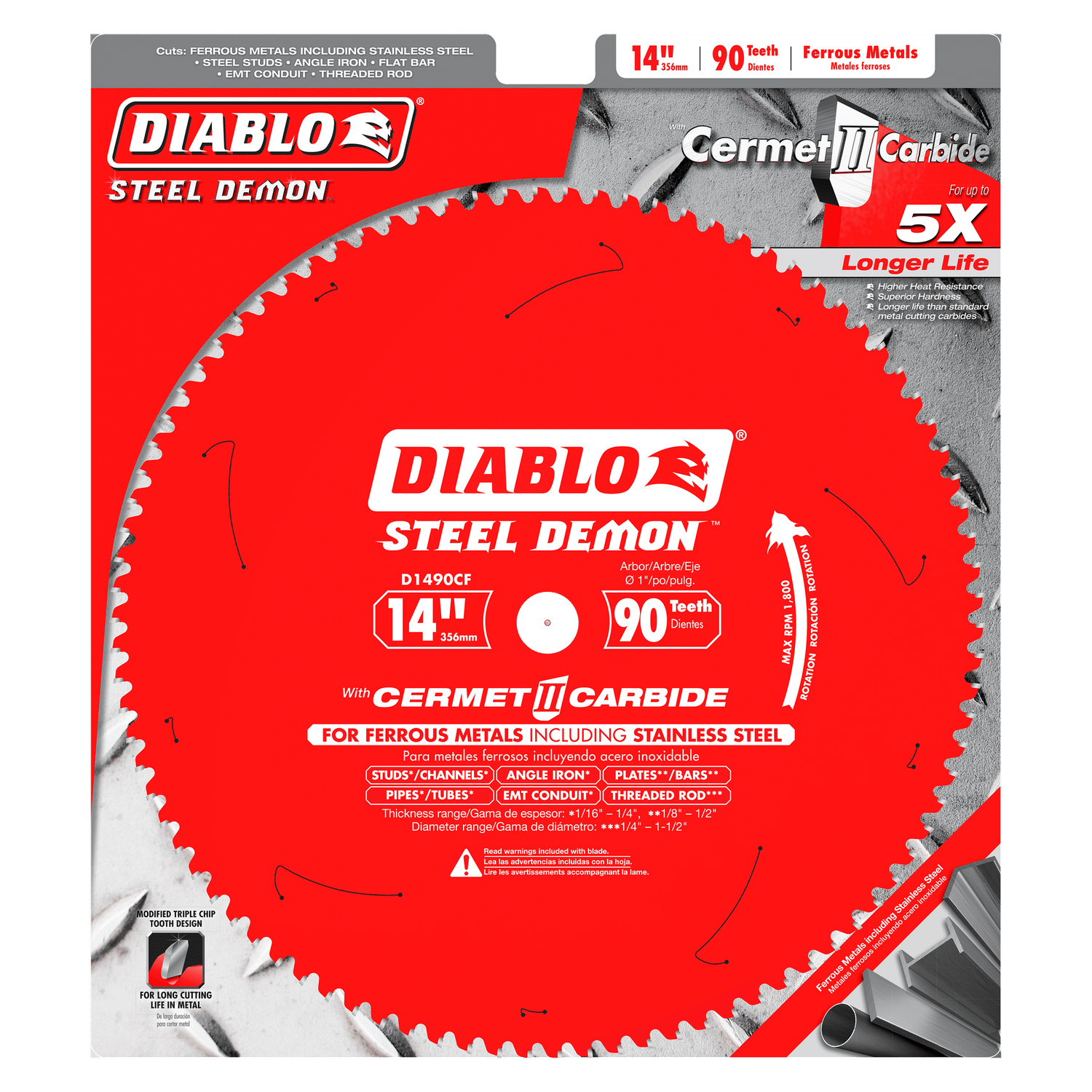

DIABLO D1490CF 14" x 90-Teeth Steel Demon™ Cermet II Saw Blade for Thin Metal
DIABLO D1490CF 14" x 90-Teeth Steel Demon™ Cermet II Saw Blade for Thin Metal is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
DIABLO D1490CF 14" x 90-Teeth Steel Demon™ Cermet II Saw Blade...
The DIABLO D1490CF Steel Demon™ Cermet II 14" x 90-tooth saw blade is designed for cutting metals and stainless steel with reduced heat, dust and rework. Its Cermet II teeth combine ceramic and metallic elements for higher heat tolerance and increased hardness, extending blade life versus standard grinding discs.
Cermet II teeth deliver up to 25X longer life, up to 50X cooler cuts and up to 10X faster cuts compared to standard grinding discs. The blade’s Triple Chip Grind and Perma-SHIELD® coating further reduce sparks, gumming and corrosion while preserving cutting performance.
A laser-cut thin kerf (.083") and optimized blade geometry reduce resistance and deflection for straighter, burr-free cuts. Advanced Laser Cut Stabilizer Vents and a laser-cut arbor minimize vibration and help keep the blade cool for more accurate cutting.
Use the blade with a dedicated low RPM metal cutting saw and clamp workpieces securely. The blade is suitable for a range of metal thicknesses and diameters (see features) and is intended for controlled metal cutting applications.
Key specifications
- Diameter: 14"
- Teeth: 90 TCG
- Kerf: .083"
- Arbor: 1"
- Max RPM: 1800
- Cermet II teeth – Higher heat tolerance and increased hardness for extended wear and fewer blade changes.
- Performance gains vs. grinding discs – Provides up to 25X longer life, up to 50X cooler cuts and up to 10X faster cuts when compared to standard grinding discs.
- Triple Chip Grind (TCG) – Reduces sparks and helps produce precise, burr‑free cuts in metals and stainless steels.
- Perma‑SHIELD® coating – Resists heat build-up and protects the blade against gumming and corrosion.
- Laser Cut Thin Kerf Design – Thin .083" kerf reduces resistance and heat build-up for easier, more accurate cutting.
- Advanced Laser Cut Stabilizer Vents – Traps noise and vibration to keep the blade stable and cool for straight cuts.
- Tri‑Metal Shock Resistant Brazing – Three‑metal brazing system helps Cermet II teeth withstand impact for improved durability.
- Laser Cut Arbor – Reduces vibration and premature wear for accurate blade rotation.
- Controlled cutting action – Produces larger chip sizes that generate less dust and airborne contaminants than grinding discs.
- Material thickness guidance – Cuts 1/16”–1/4” wall thickness in steel studs, angle iron, flat bar and EMT conduit; cuts 1/8”–1/2” wall thickness in plate and bar stock; cuts 1/4"–1-1/2” diameter threaded rod.
- Application notes – Use with a dedicated low RPM metal cutting saw, clamp materials, and select the right tooth count and cutting speed for the material.
Specifications
| Specifications and Details | |
|---|---|
| Diameter | 14" |
| Teeth | 90 TCG |
| Arbor | 1" |
| Kerf | .083" |
| Hook Angle | 0° |
| Plate | .071" |
| Max RPM | 1800 |
DIABLO D1490CF 14" x 90-Teeth Steel Demon™ Cermet II Saw Blade for Thin Metal
The DIABLO D1490CF Steel Demon™ Cermet II 14" x 90-tooth saw blade is designed for cutting metals and stainless steel with reduced heat, dust and rework. Its Cermet II teeth combine ceramic and metallic elements for higher heat tolerance and increased hardness, extending blade life versus standard grinding discs.
Cermet II teeth deliver up to 25X longer life, up to 50X cooler cuts and up to 10X faster cuts compared to standard grinding discs. The blade’s Triple Chip Grind and Perma-SHIELD® coating further reduce sparks, gumming and corrosion while preserving cutting performance.
A laser-cut thin kerf (.083") and optimized blade geometry reduce resistance and deflection for straighter, burr-free cuts. Advanced Laser Cut Stabilizer Vents and a laser-cut arbor minimize vibration and help keep the blade cool for more accurate cutting.
Use the blade with a dedicated low RPM metal cutting saw and clamp workpieces securely. The blade is suitable for a range of metal thicknesses and diameters (see features) and is intended for controlled metal cutting applications.
Key specifications
- Diameter: 14"
- Teeth: 90 TCG
- Kerf: .083"
- Arbor: 1"
- Max RPM: 1800
