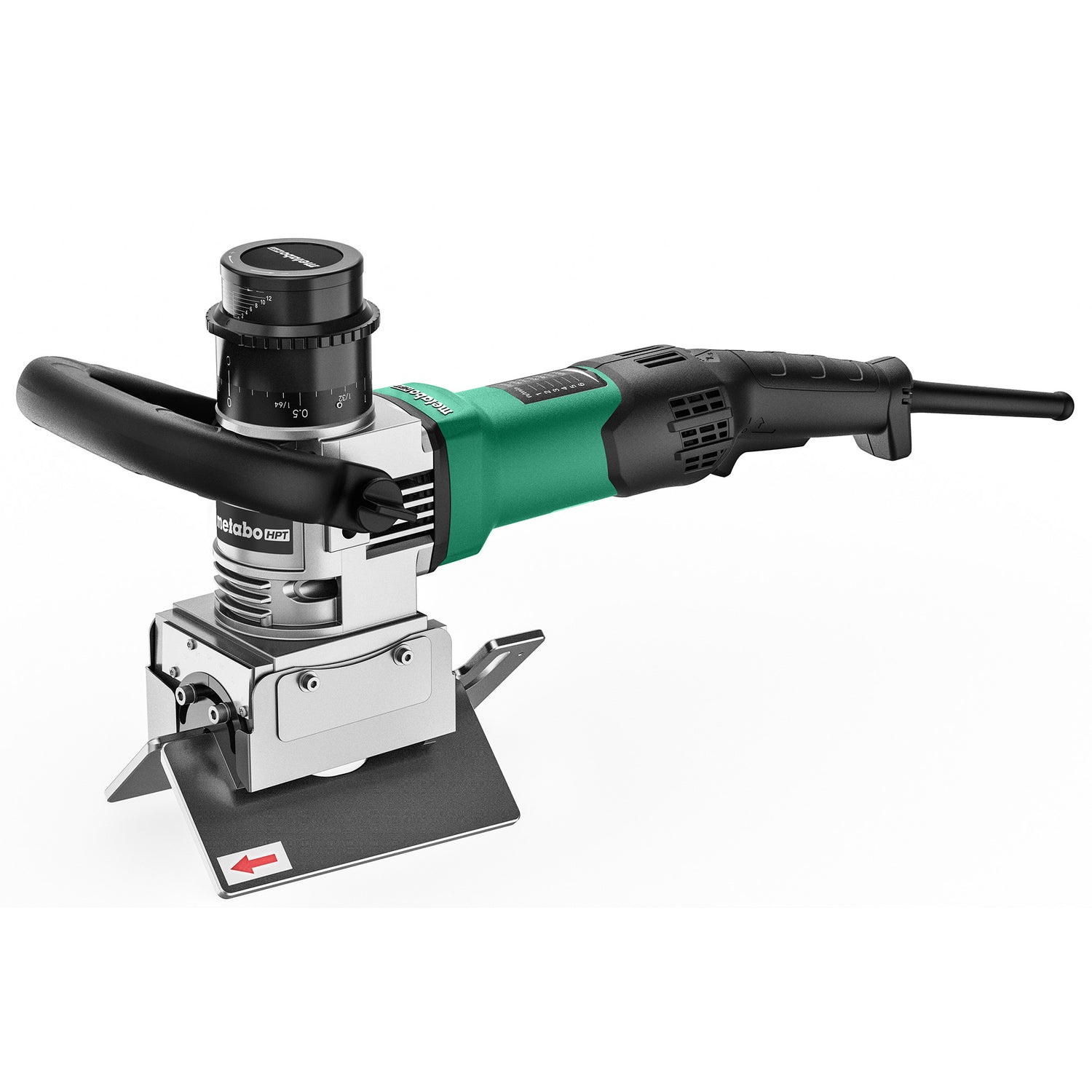

metabo HPT 646771620 5/8" KFMVP 17-15 F Metal Beveling Tool For Metal
metabo HPT 646771620 5/8" KFMVP 17-15 F Metal Beveling Tool For Metal is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
metabo HPT 646771620 5/8" KFMVP 17-15 F Metal Beveling Tool Fo...
The metabo HPT KFMVP 17-15 F is a German-designed and manufactured variable-speed metal beveling tool built for fast, clean weld-seam preparation and chamfering on metal. It features a universal milling head with three indexable carbide inserts and supports chamfer angles from 0° to 90°, enabling a wide range of bevel profiles for pipe and plate work.
Precision depth control is provided by the patented One-Touch controller, which allows tool-free depth adjustment in 0.1 mm increments. The motor includes Electronic Speed Stabilization, electronic soft start and power-interruption restart protection to help maintain consistent performance and reduce kickback or unexpected restarts.
Ergonomics and jobsite handling are addressed with a rear rattail handle, a non-locking switch that stops the motor when released, and an adjustable loop handle for secure guiding in multiple positions. Large-surface guide plates and a pipe-following roller support controlled, repeatable chamfering along flat surfaces and cylindrical workpieces.
- German design and manufacture – Engineered and produced in Germany for metal beveling and weld preparation tasks.
- Universal milling head with 3 indexable carbide inserts – Three replaceable inserts provide cutting versatility and easy replacement on the job.
- Chamfer angle range 0°–90° – Supports a full range of bevel angles for various edge and seam preparation needs.
- Patented One-Touch controller – Tool-free depth adjustment in 0.1 mm increments for precise, repeatable chamfer depth.
- Electronic speed stabilization (VTC) – Maintains nearly constant speed under load for consistent cutting performance.
- Electronic soft start and restart protection – Soft start smooths motor engagement; power-loss restart protection reduces risk of unintentional restarts.
- Variable speed control – Adjustable speed for working in different materials and cutting conditions.
- Ergonomic handles and non-locking switch – Rear rattail handle plus adjustable loop handle provide control; non-locking switch shuts off motor when released for safety.
- Large-surface guide plates and pipe-following roller – Helps keep the tool steady and follow pipe contours for accurate weld preparation.
- Designed to limit heat transfer to base material – Removes heat into small chips to minimize damage and thermal stress on the work piece.
- Motor power – High input and output power for demanding beveling work (see specifications for rated values).
Specifications
| Specifications and Details | |
|---|---|
| No-load speed | 6200-12000 rpm |
| Rated input power | 1700 W |
| Output power | 880 W |
| Types of edges | Chamfer |
| Chamfer angles | 0-90° |
| Max. chamfer width 45° | 21 mm / 13/16" |
| Max. chamfer height at 45° | 15 mm / 19/32" |
| Grading of cutting depth setting | 0.1 mm / 0.00394" |
| Curves smallest outer | 100 mm / 3-15/16" |
| Weight (without power cable) | 6.3 kg / 13.8 lbs |
| Cable length | 3.9 m / 13" |
metabo HPT 646771620 5/8" KFMVP 17-15 F Metal Beveling Tool For Metal
The metabo HPT KFMVP 17-15 F is a German-designed and manufactured variable-speed metal beveling tool built for fast, clean weld-seam preparation and chamfering on metal. It features a universal milling head with three indexable carbide inserts and supports chamfer angles from 0° to 90°, enabling a wide range of bevel profiles for pipe and plate work.
Precision depth control is provided by the patented One-Touch controller, which allows tool-free depth adjustment in 0.1 mm increments. The motor includes Electronic Speed Stabilization, electronic soft start and power-interruption restart protection to help maintain consistent performance and reduce kickback or unexpected restarts.
Ergonomics and jobsite handling are addressed with a rear rattail handle, a non-locking switch that stops the motor when released, and an adjustable loop handle for secure guiding in multiple positions. Large-surface guide plates and a pipe-following roller support controlled, repeatable chamfering along flat surfaces and cylindrical workpieces.
