metabo HPT NP1835DA 18V MultiVolt™ 23-Gauge Pin Nailer (1x2.0Ah)
metabo HPT NP1835DA 18V MultiVolt™ 23-Gauge Pin Nailer (1x2.0Ah) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
metabo HPT NP1835DA 18V MultiVolt™ 23-Gauge Pin Nailer (1x2.0Ah)
The Metabo HPT NP1835DA is an 18V cordless 23‑gauge pin nailer that drives up to 1-3/8" 23‑gauge headless pins using a low‑maintenance mechanical spring drive. Cordless operation removes the need for hoses while preserving the ability to set small pins for trim, cabinetry and delicate finish work.
A fine tip, fixed nose design helps place pins into grooves and tight trim joints, and the tool includes precision and protection features such as a double trigger, dry‑fire lockout, no‑push safety tip and a bright LED work light. Comfort and tool care are addressed with a built‑in counterweight to reduce recoil and rubber bumpers to protect surfaces.
Runtime is strong for this class: the included 18V 2.0Ah battery delivers approximately 2700 nails per charge. The nailer is also part of the MultiVolt system and accepts 18V batteries or 18V/36V MultiVolt batteries for extended runtime up to 8.0Ah per charge.
Typical applications include securing glued wood joints while they dry, holding mouldings for adjustment prior to permanent fastening, and attaching decorative trim without large holes to fill. The NP1835DA ships with a compact 18V 2.0Ah battery, charger, no‑mar nose caps and safety glasses.

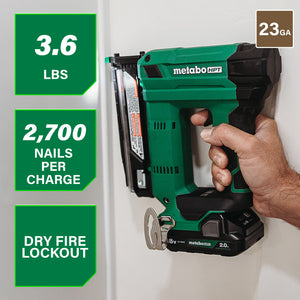

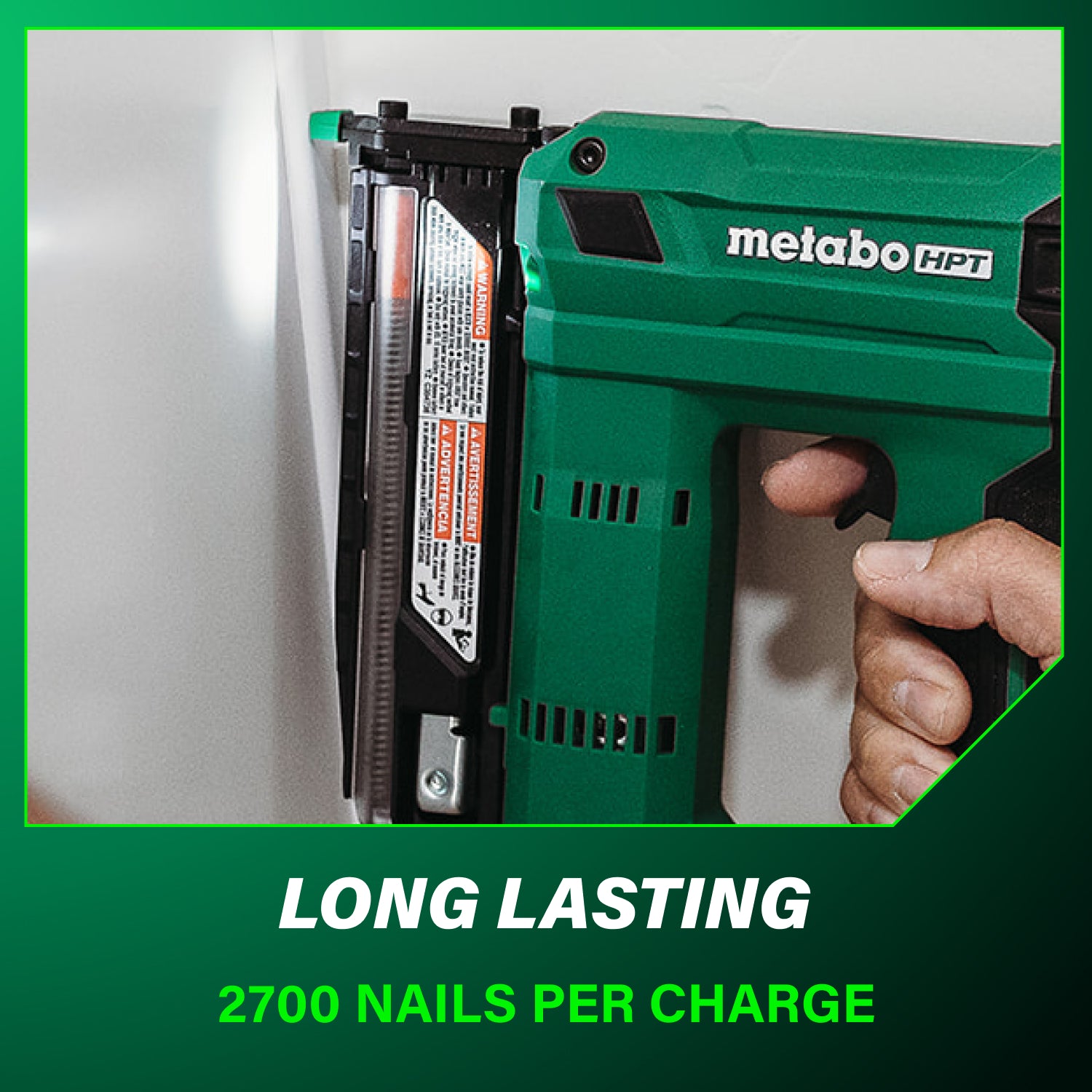

- Long runtime – Approximately 2700 nails per charge with the included 18V 2.0Ah battery for extended run time between charges

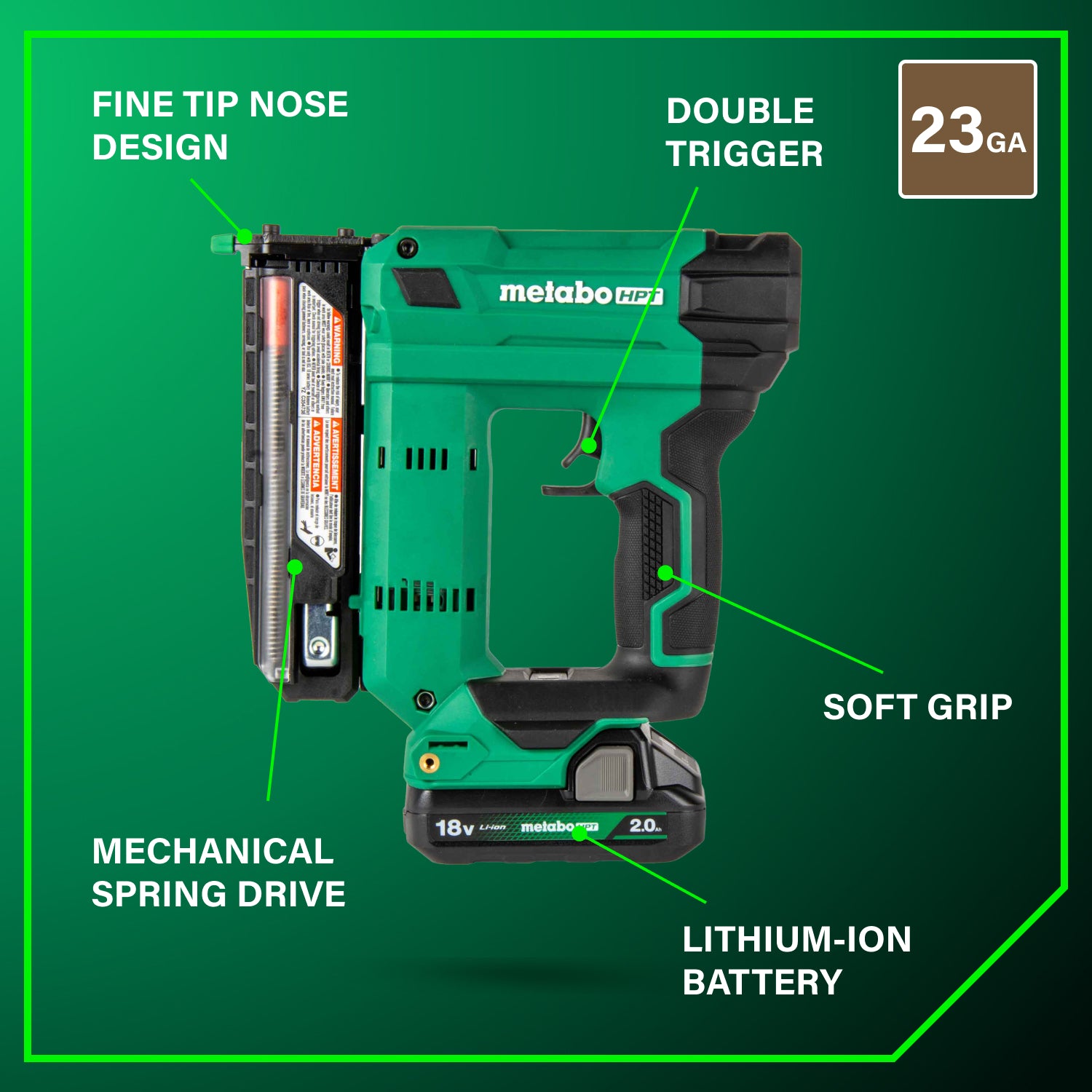

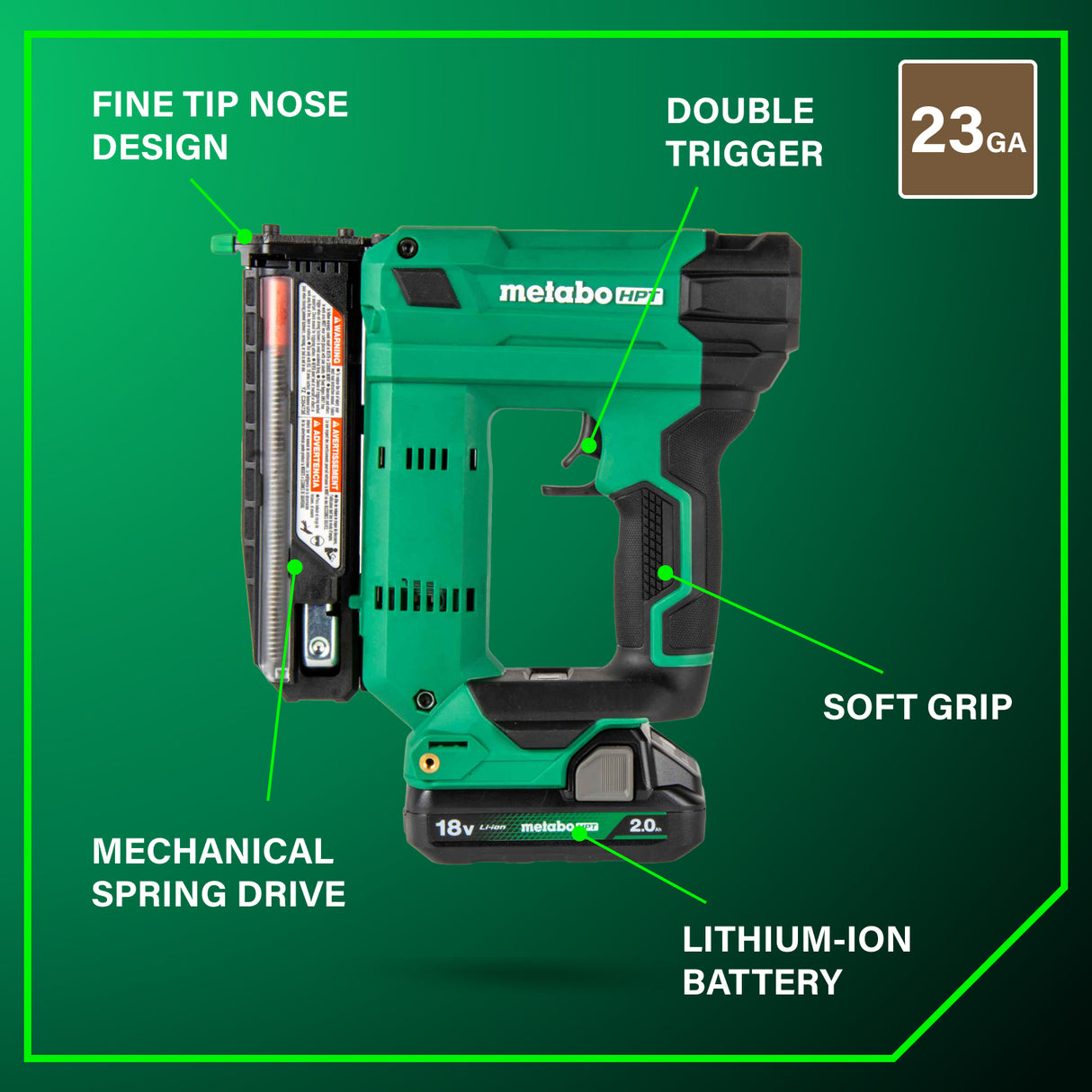

- Mechanical spring drive – Provides the driving power to set up to 1-3/8" 23‑gauge headless pin nails without an air hose

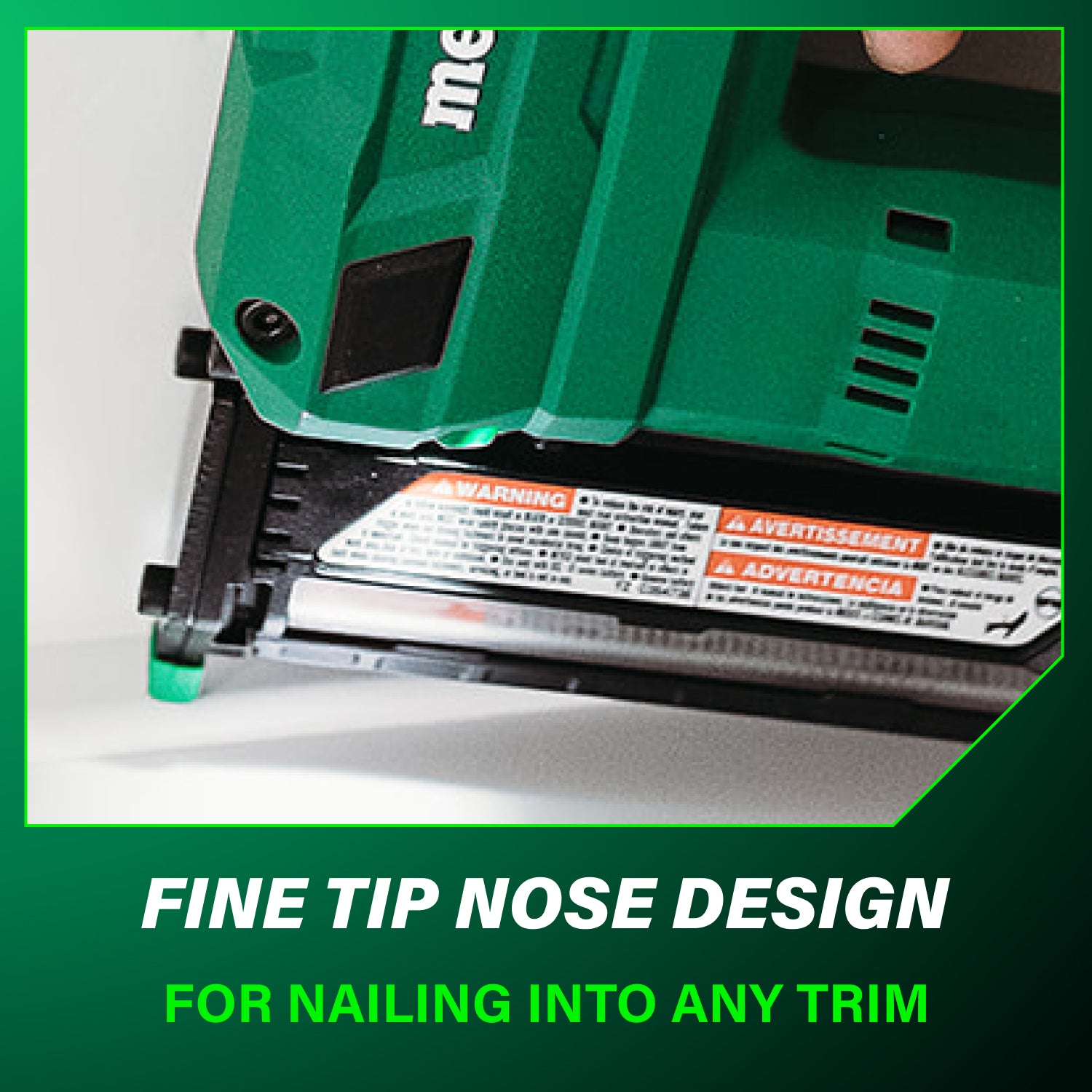

- Fine tip nose – Precision nose design for nailing into grooves and tight trim joints

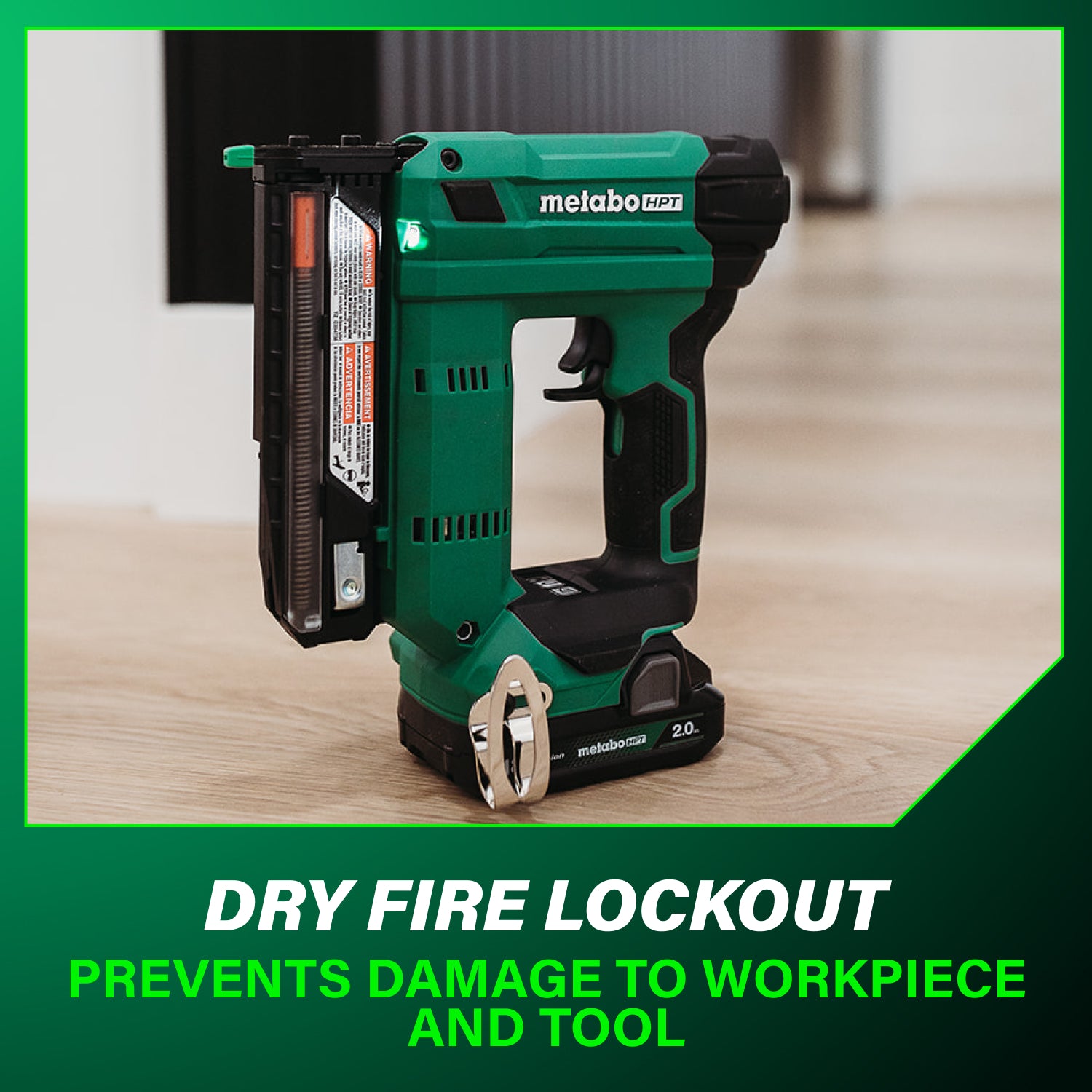

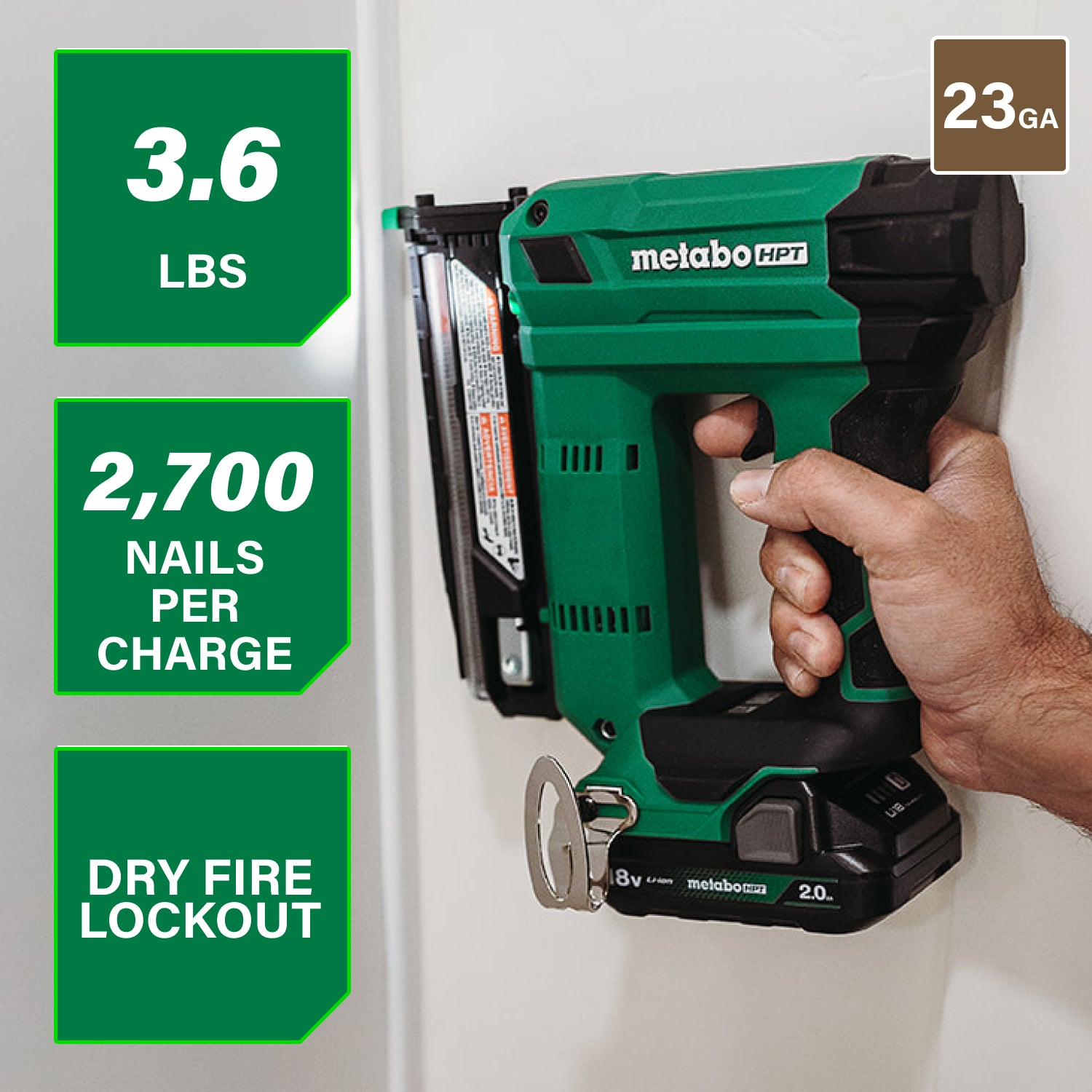

- Dry‑fire lockout – Prevents firing when nails are depleted to protect the tool and the workpiece
- Double trigger – Adds an extra layer of user safety during operation

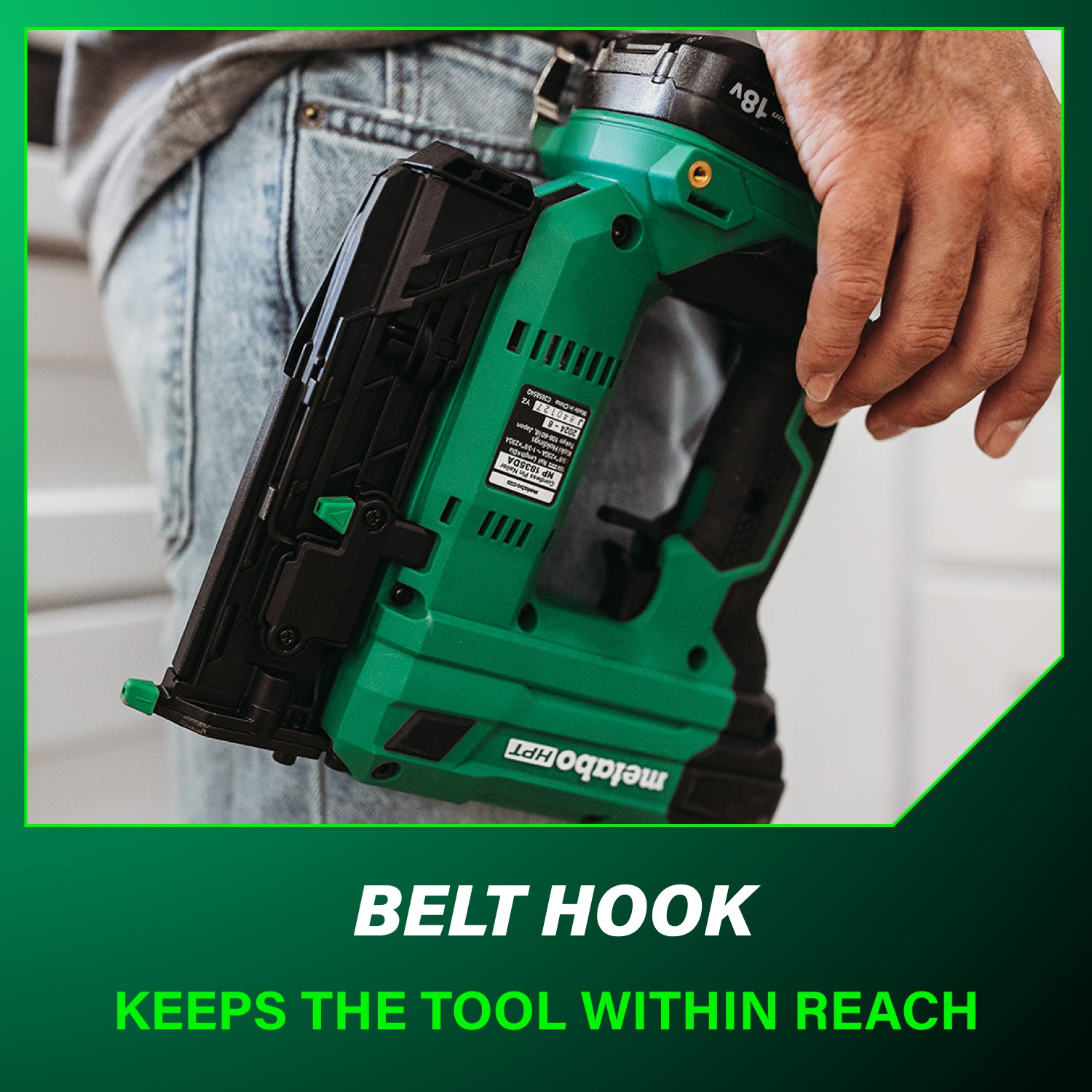

- Belt hook – Left or right mountable for user preference and on‑the‑job comfort

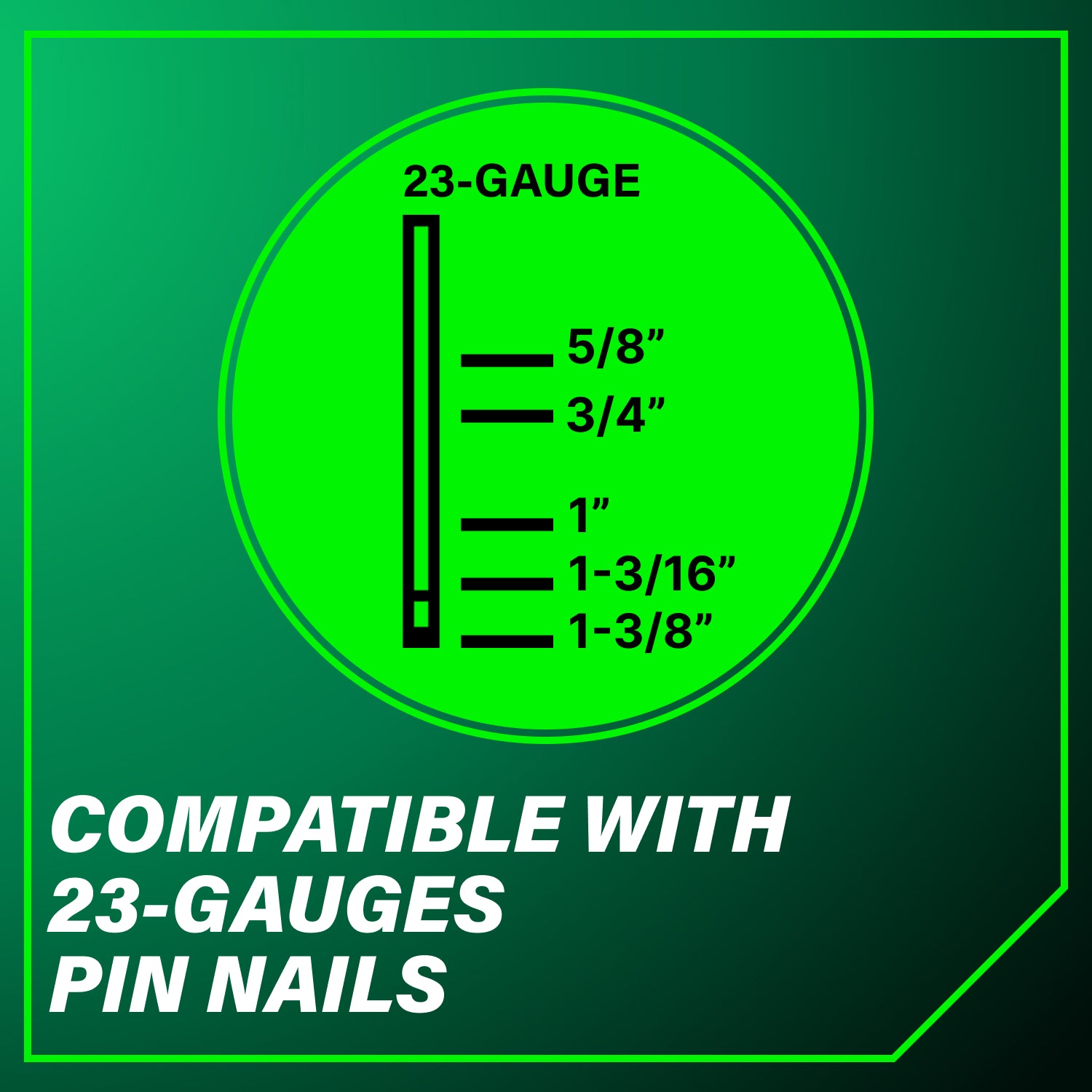

- Fastener versatility – Accepts 5/8", 3/4", 1", 1-3/16" and 1-3/8" 23‑gauge pin nails to handle common trim lengths

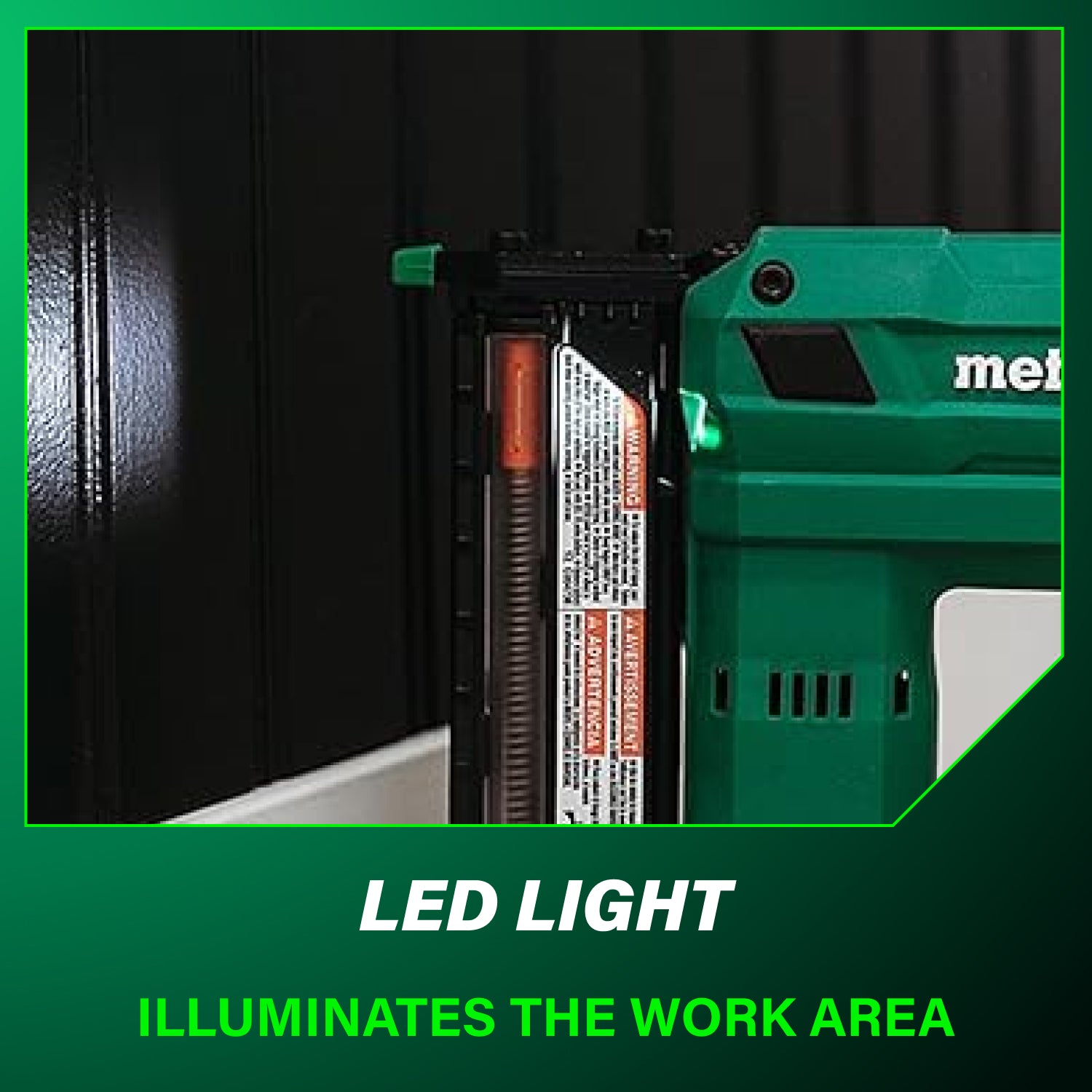

- LED work light – Bright LED illuminates the work area for better visibility in tight or low‑light conditions
- Reduced recoil – Built‑in counterweight helps minimize recoil for steadier, more accurate placement
- Surface protection – Rubber bumpers help protect the tool and finished surfaces from incidental contact
- No‑push safety tip – Reduces marring for a cleaner finish on delicate trim and mouldings
- MultiVolt compatibility – Use standard 18V batteries or 18V/36V MultiVolt batteries to extend runtime up to 8.0Ah per charge
- Recommended applications – Suited for cabinetry, paneling, small moulding/trim and craft work

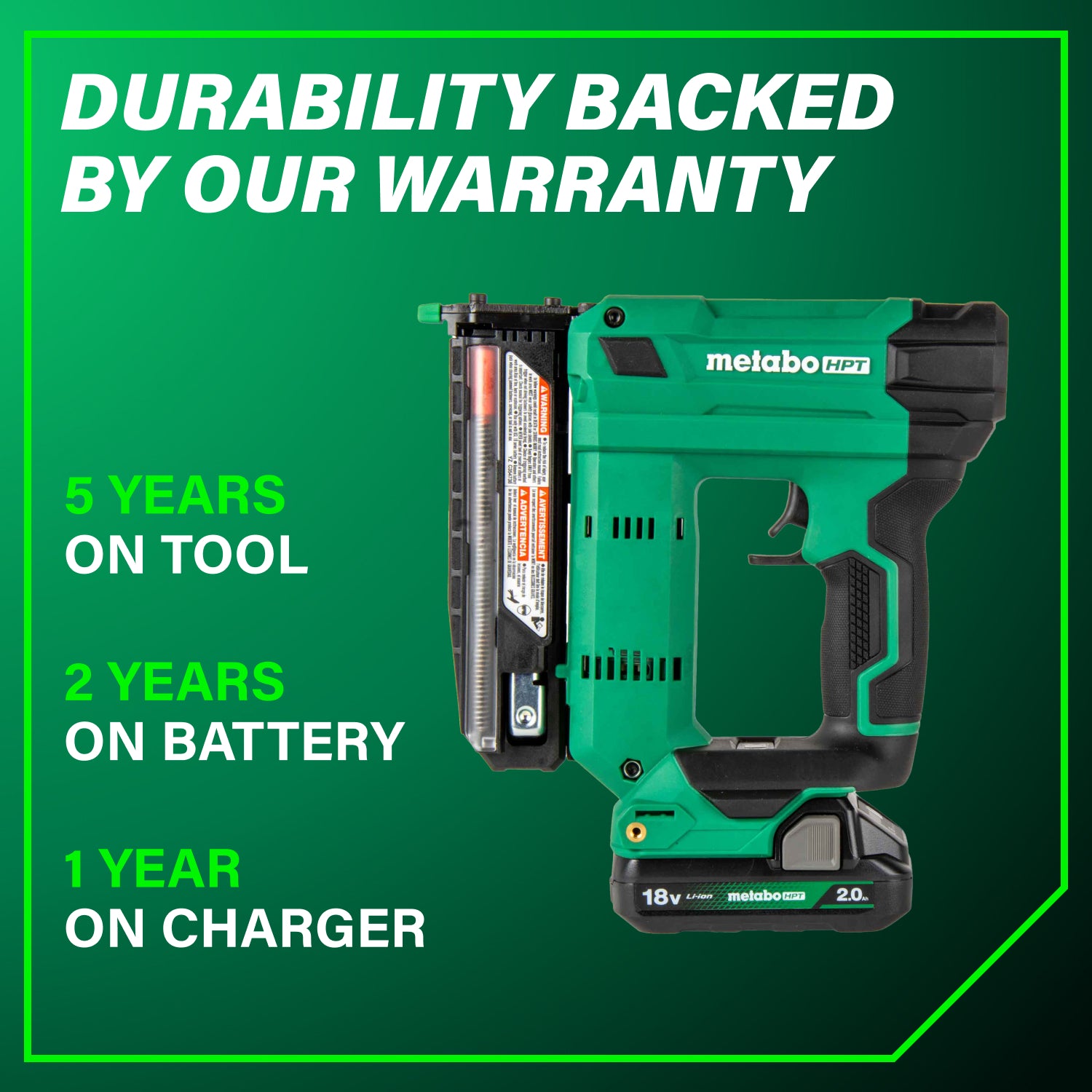

- Warranty coverage – Covered by Metabo HPT’s 5‑year tool warranty, 2‑year Lithium Ion battery warranty, and 1‑year charger warranty
Specifications
| Specifications and Details | |
|---|---|
| Volts | 18V |
| Battery Type | Li-Ion |
| Nail Length | 5/8 - 1-3/8 |
| Magazine Capacity | 100 |
| Nails per Charge (w/ 2.0Ah Battery) | 2700 |
| Magazine Angle | 0° |
| Magazine Loading | Side |
| Dryfire Lockout | Equipped |
| Battery Charge Indicator | On Battery |
| LED Light | On Tool |
| Belt Hook | Equipped |
| Dimensions | 9-5/8" (L) x 8-15/16" (H) x 3-7/16" (W) |
| Weight (w/out battery) | 3.6 lbs |
| Warranty | 5 Years |

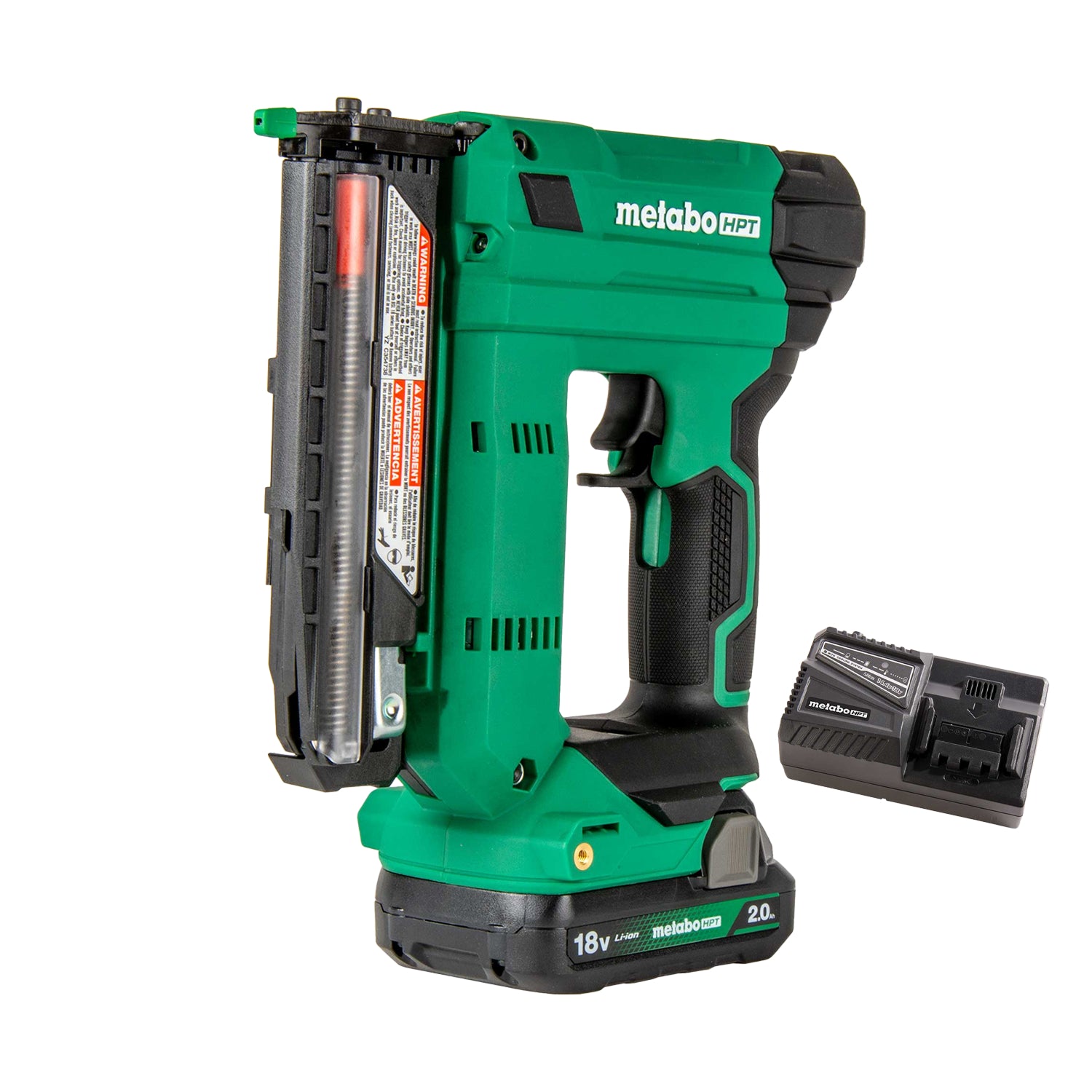

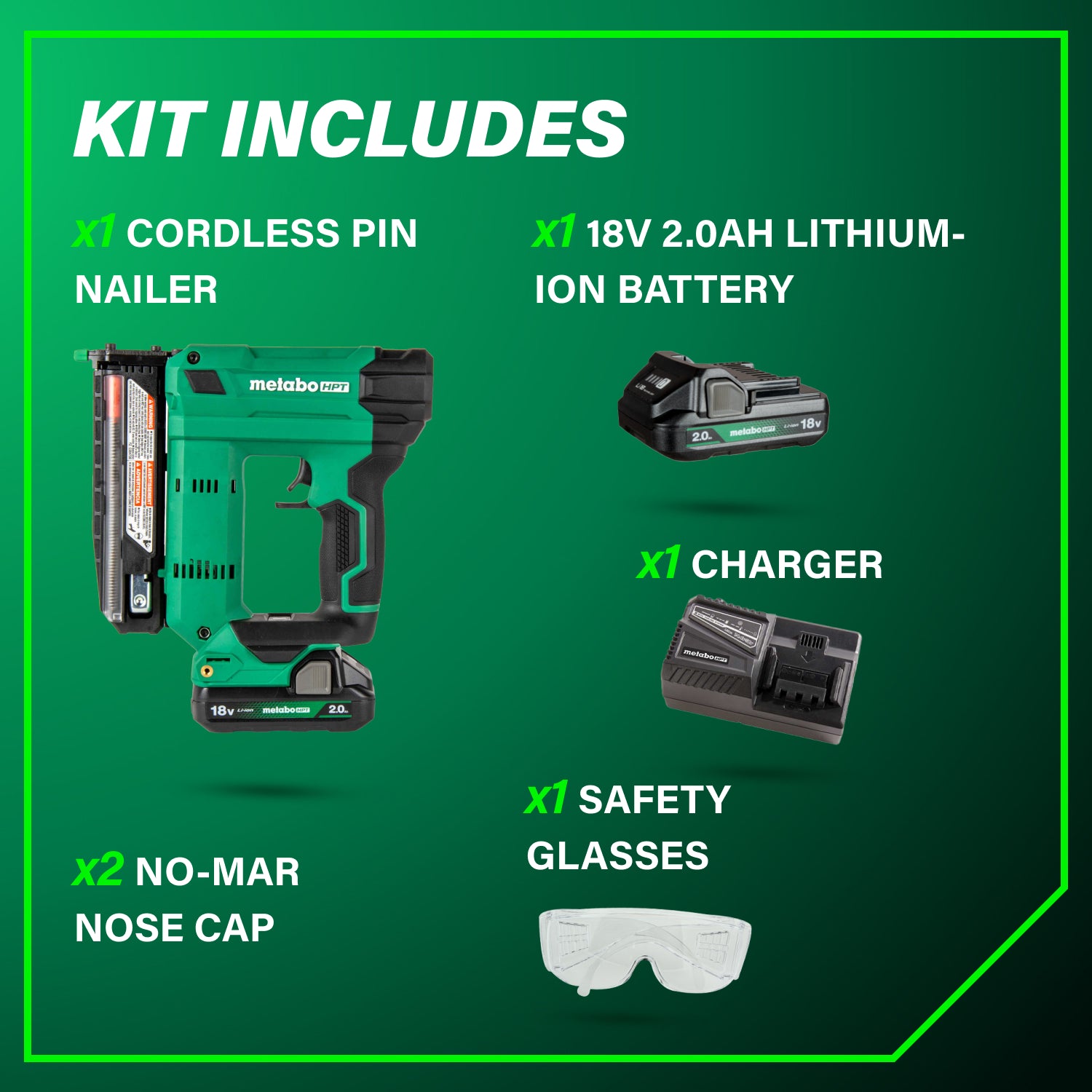

| Included | 18V 2.0Ah Battery w/ Fuel Gauge (377797M); Charger (UC18YFSL); (2) No Mar Nose Caps (382441); Safety Glasses (875769) |
