Milwaukee 3058-20 M12 FUEL™ 1/4" Extended Reach Ratchet
Milwaukee 3058-20 M12 FUEL™ 1/4" Extended Reach Ratchet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Milwaukee 3058-20 M12 FUEL™ 1/4" Extended Reach Ratchet

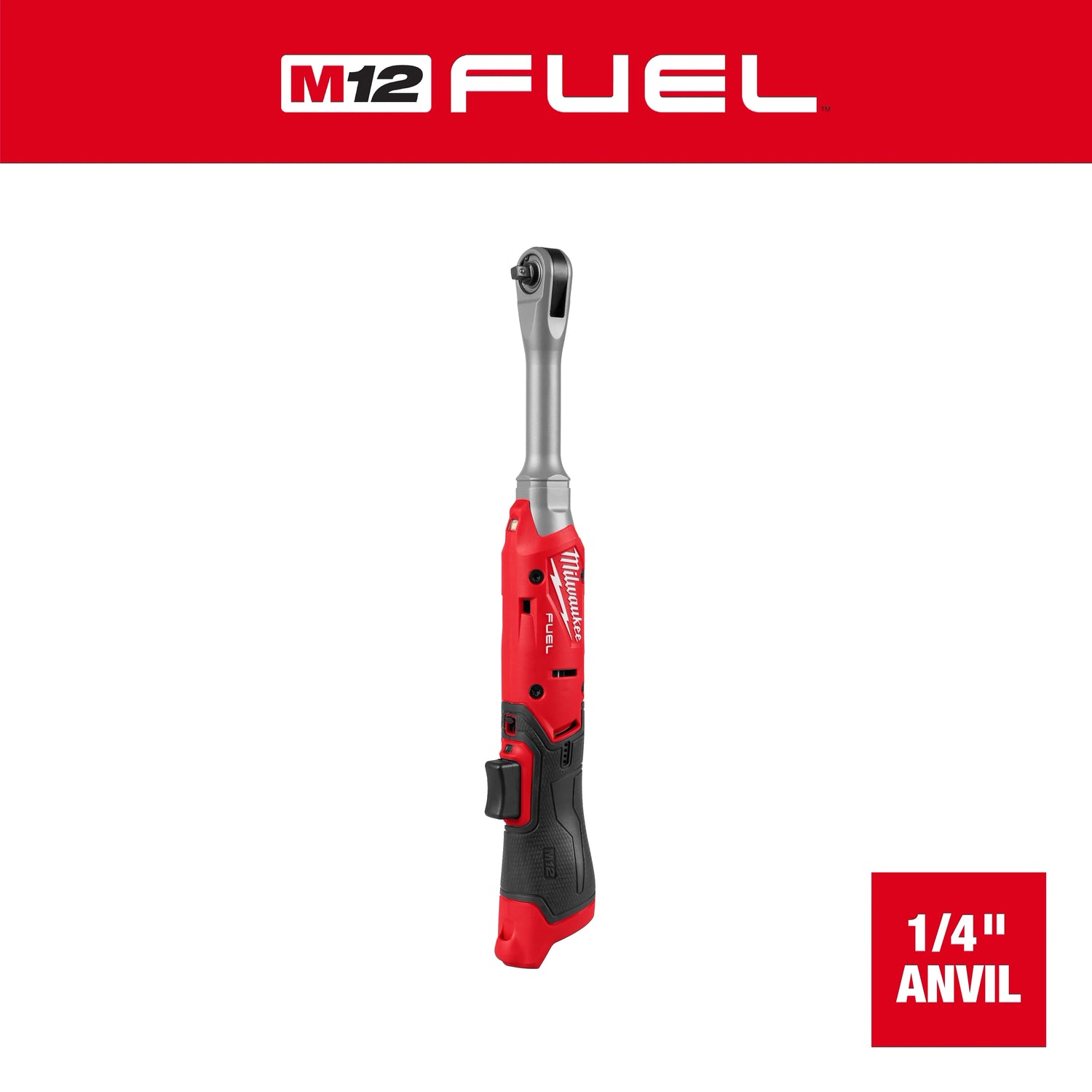

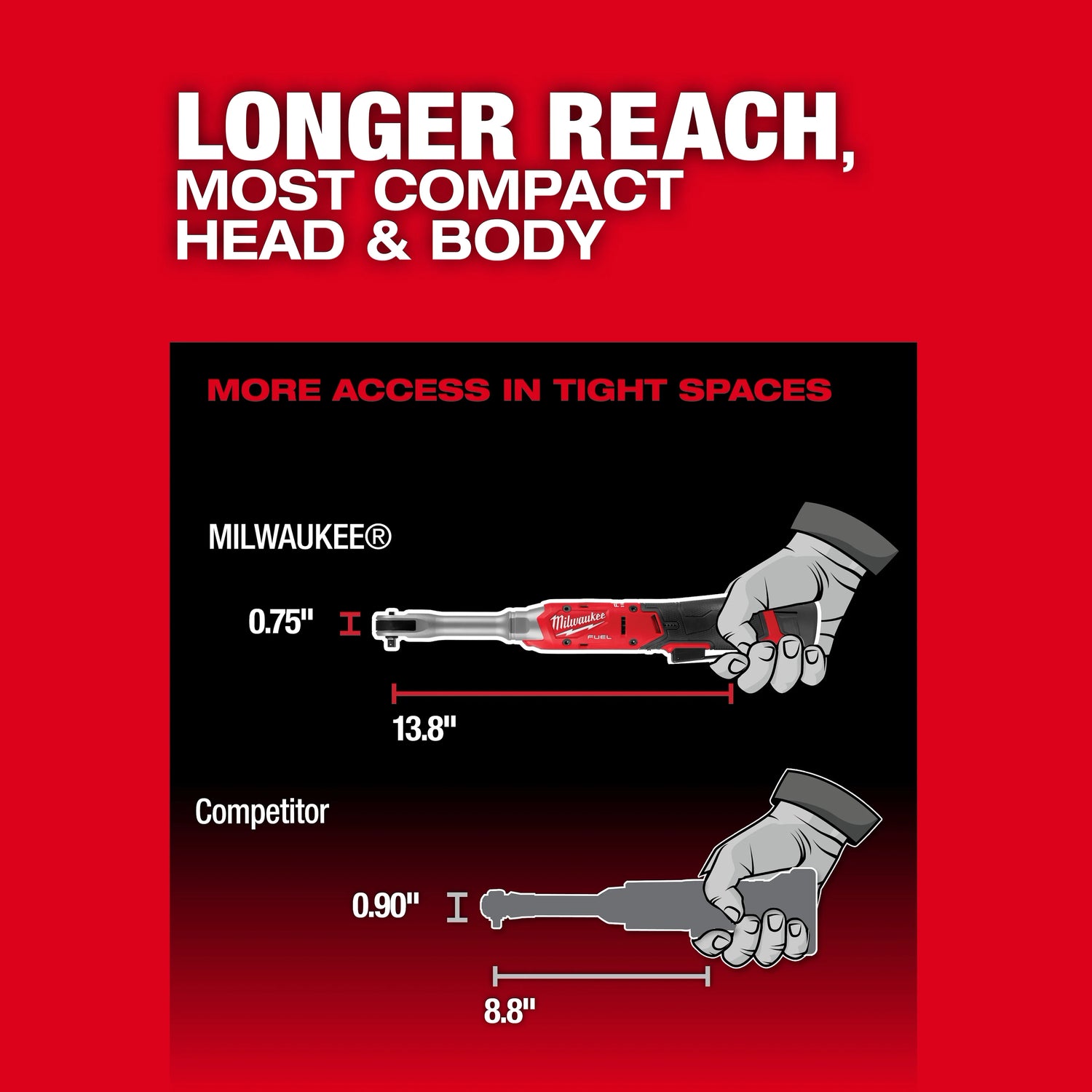

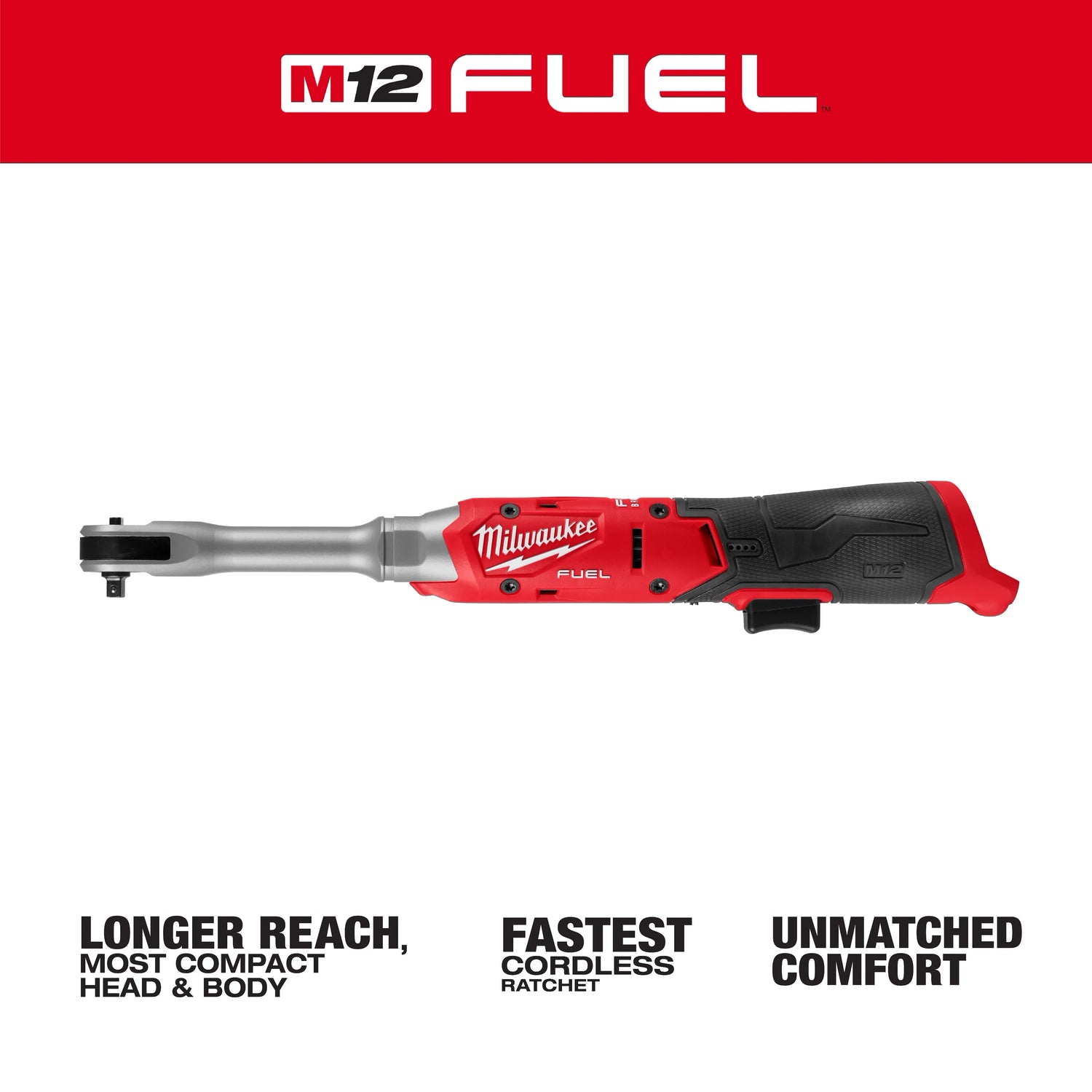

The Milwaukee 3058-20 M12 FUEL™ 1/4" Extended Reach Ratchet is a cordless 1/4"-drive ratchet designed to provide greater access into deep or tight applications while maintaining a compact head and body profile. The extended reach reduces knuckle contact and allows work in areas where a standard ratchet may not reach.

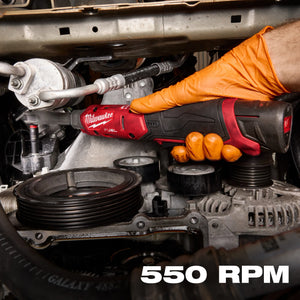

A POWERSTATE™ Brushless outer rotor motor drives the tool to 550 RPM and delivers up to 45 ft-lbs of torque for faster removal and installation of fasteners and improved breakaway capability. REDLINK PLUS™ intelligence and bi-directional firmware help protect the tool and battery from overload and provide consistent breakaway torque.

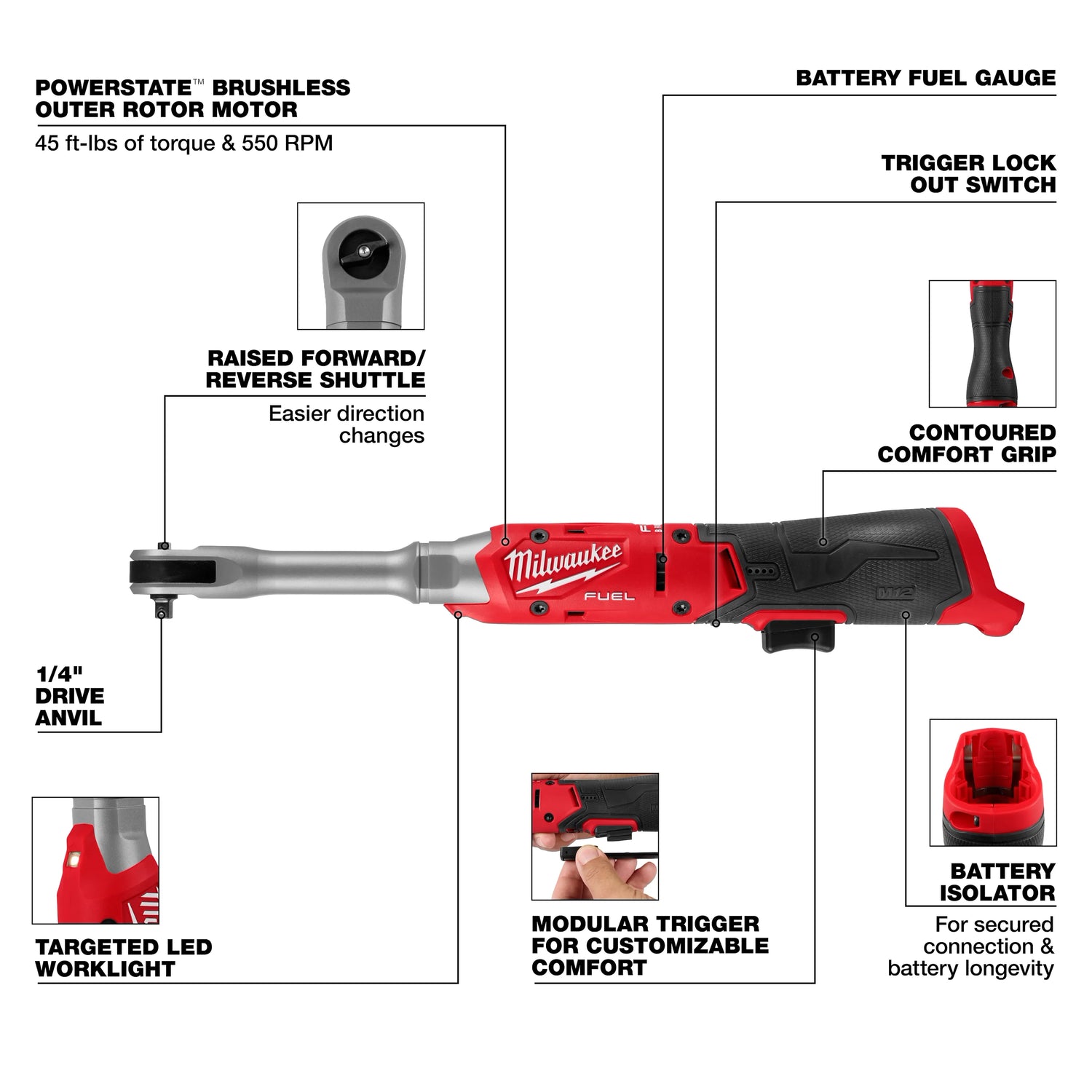

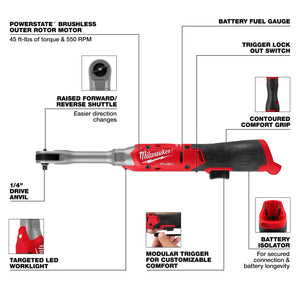

User-focused features include a contoured grip for reduced fatigue, a modular trigger cap with button and paddle options, a raised forward/reverse shuttle for easier direction changes, an integrated grease port for self-lubrication, a targeted LED work light, battery isolation, and a metal-reinforced housing for durability.

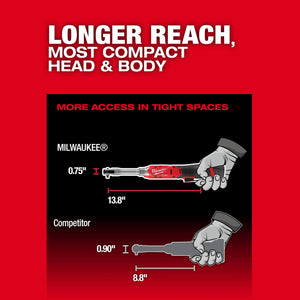

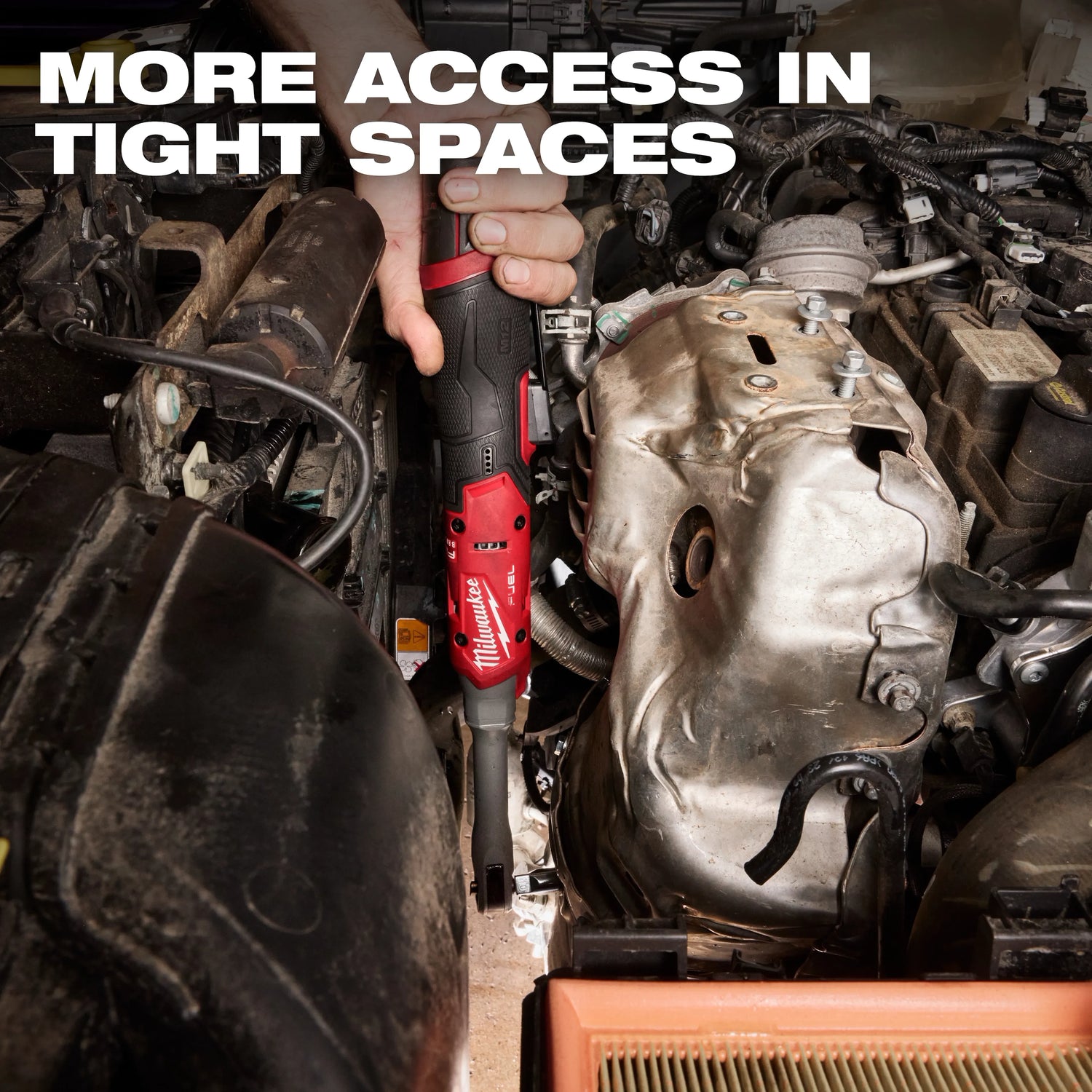

- Extended reach and compact profile – Longer reach with a most-compact head and body size to access deep or tight applications while maintaining a 1/4" head profile.

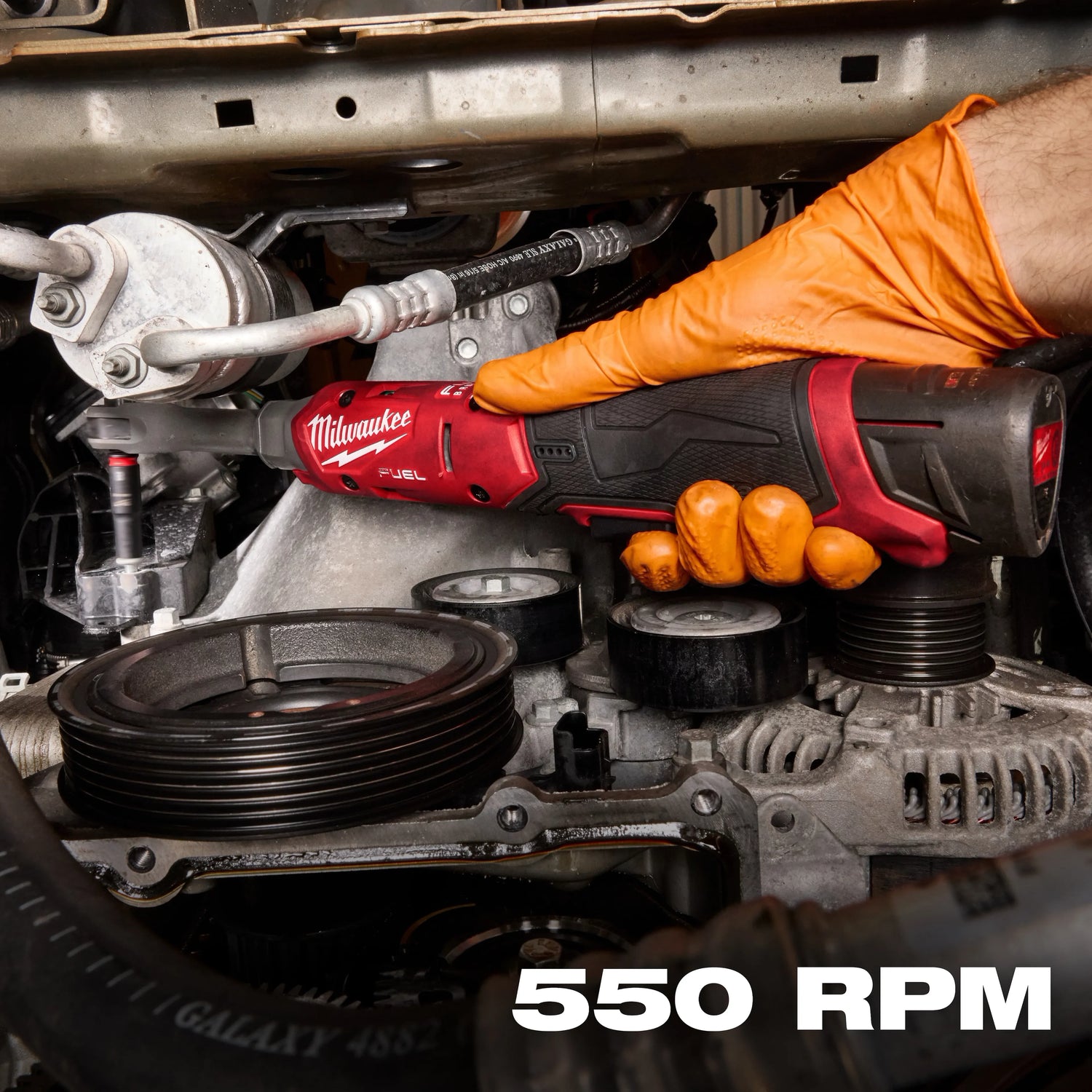

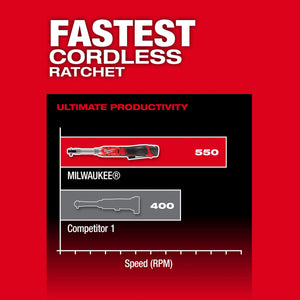

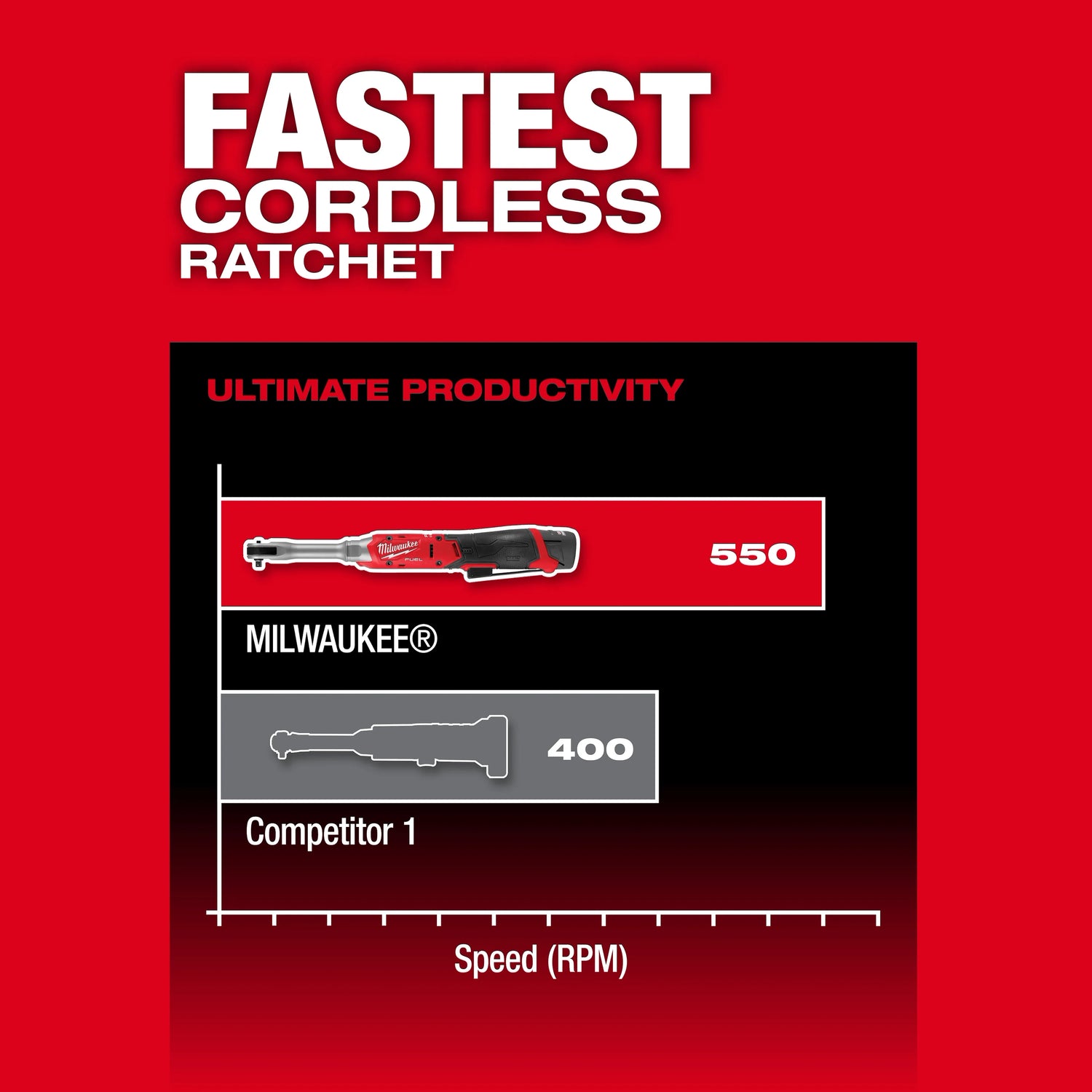

- High speed – 550 RPM for faster removal and installation of fasteners.
- Breakaway torque – Up to 45 ft-lbs of torque to tackle stubborn fasteners.
- POWERSTATE™ Brushless motor – Brushless outer rotor design for the performance needed in high-speed cordless ratchet applications.
- REDLINK PLUS™ intelligence – Protects the tool and battery from overload and overheating.
- Bi-directional firmware – Delivers consistent breakaway torque in both directions.

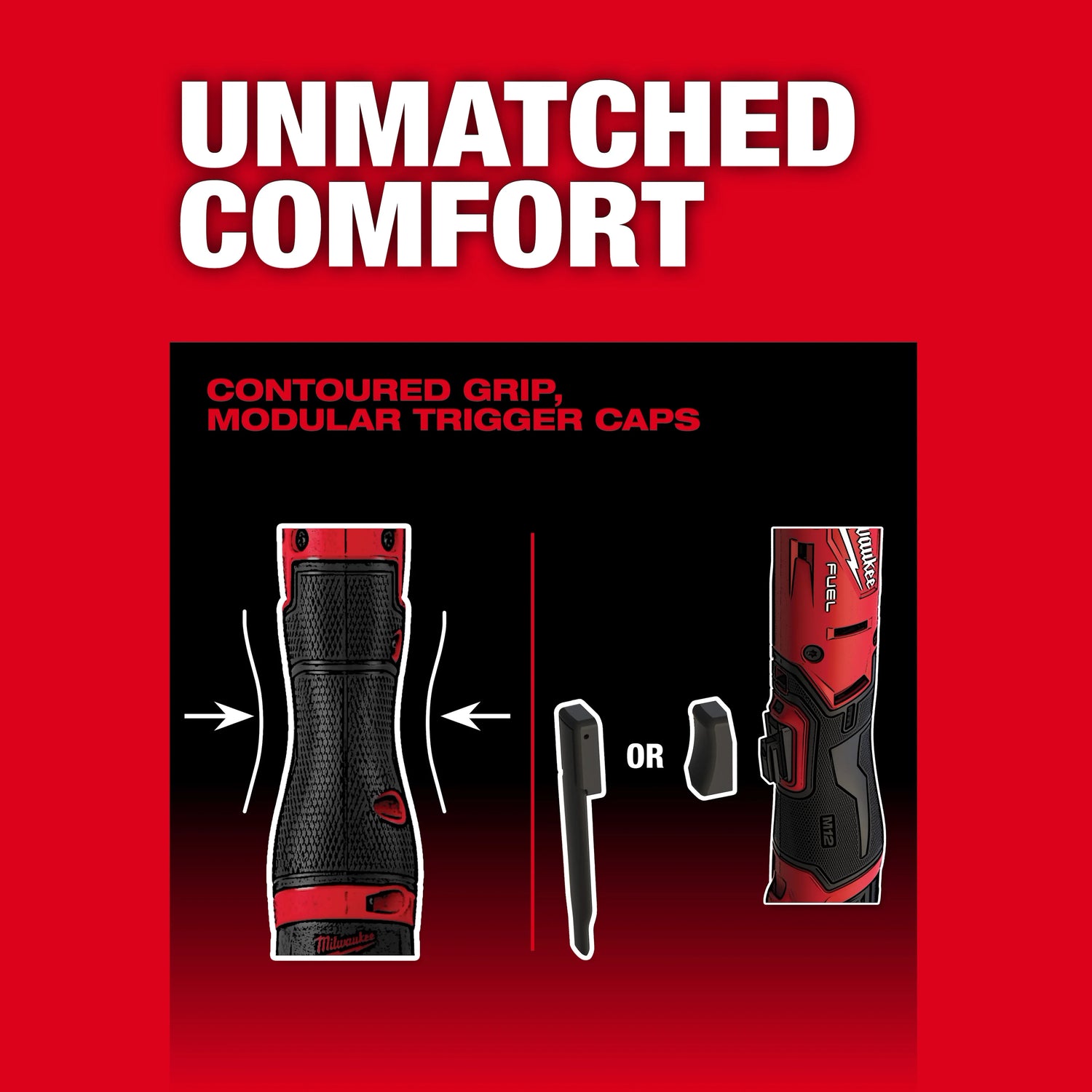

- Contoured grip – Reduces fatigue during extended periods of use.

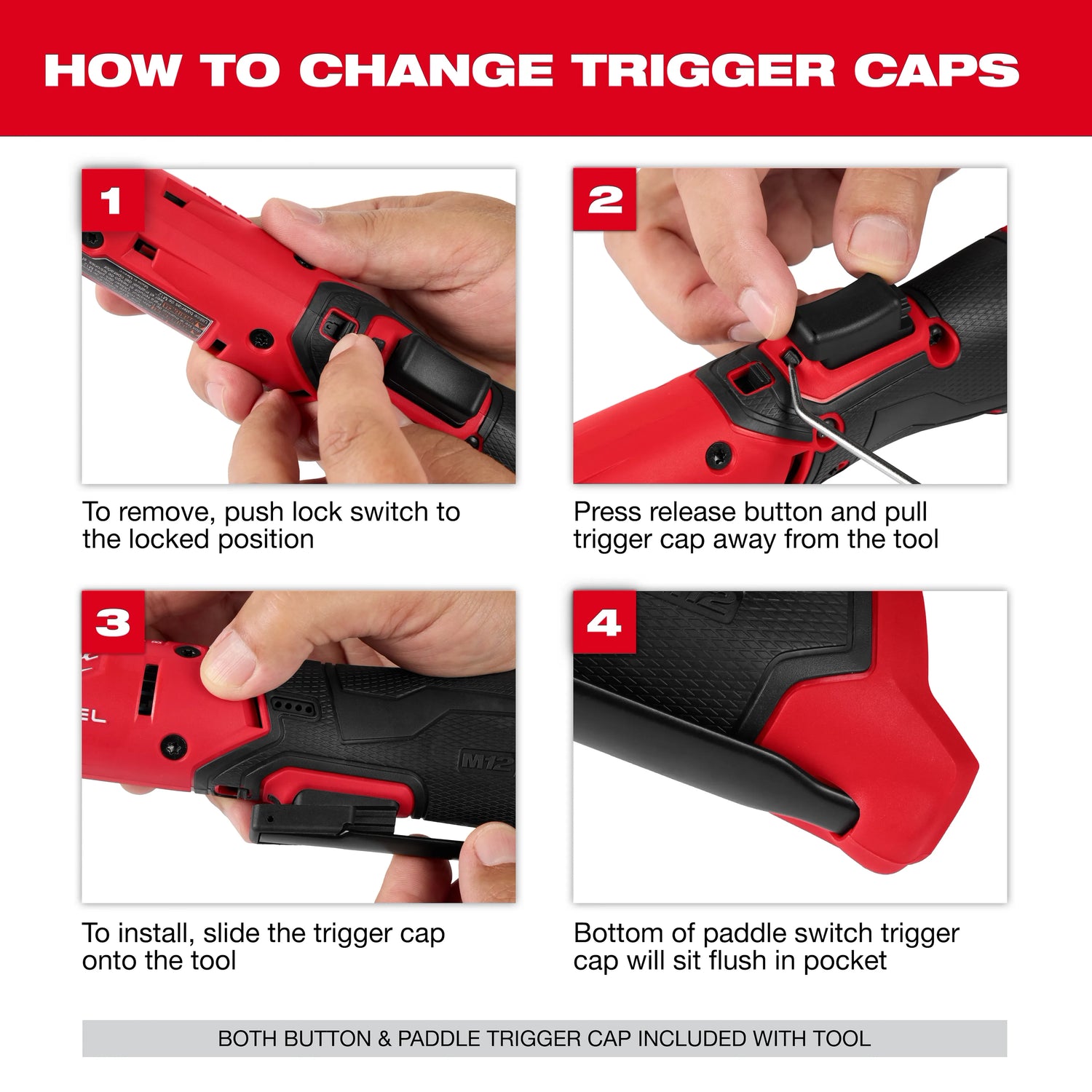

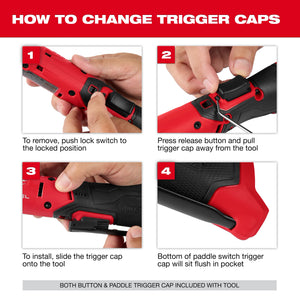

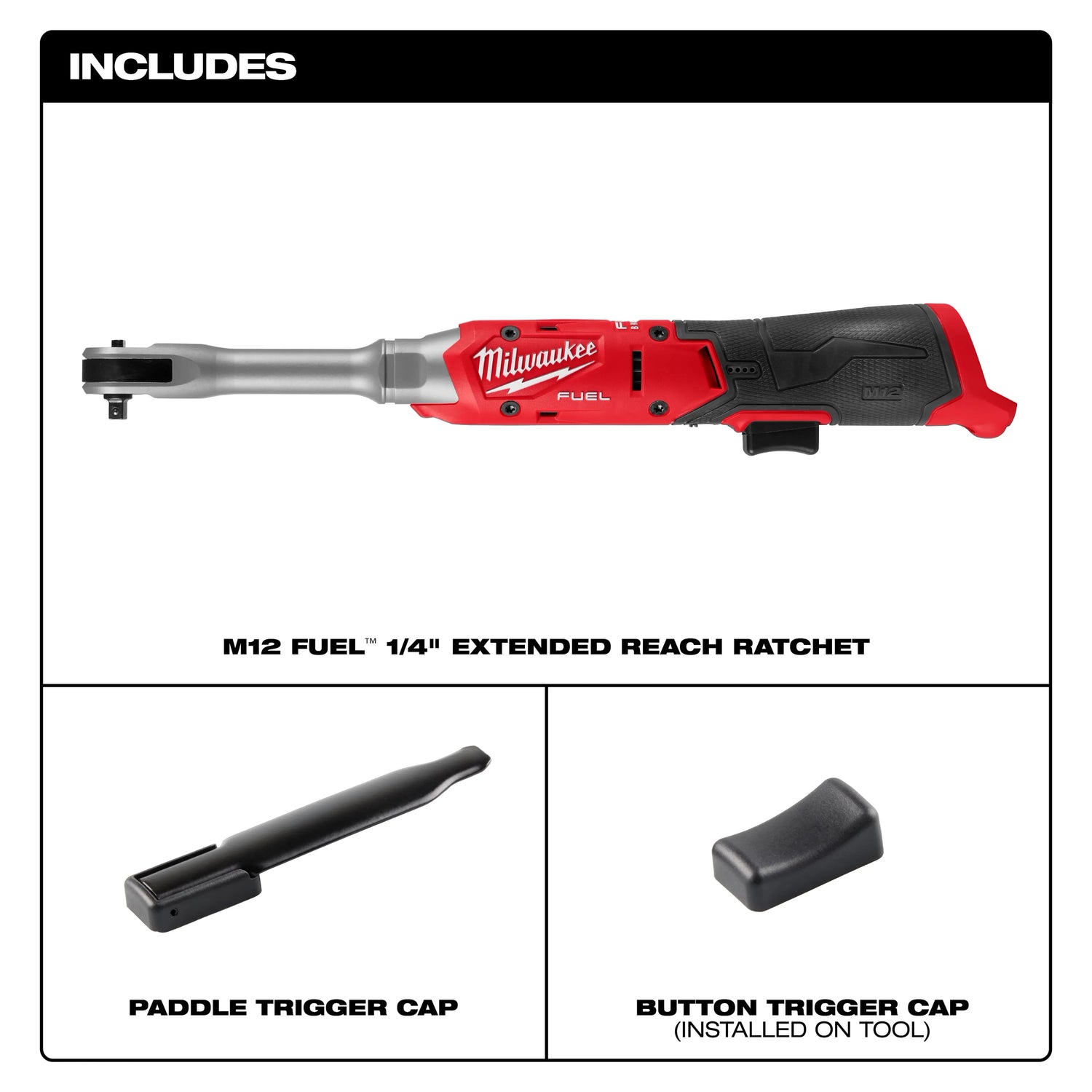

- Modular trigger cap – Includes button and paddle caps so users can choose their preferred trigger style.
- Raised forward/reverse shuttle – Makes direction changes quicker and easier on the job.
- Integrated grease port – Allows for self-lubrication to support ongoing tool maintenance.
- Targeted LED work light – Illuminates the work area for improved visibility in dim conditions.
- Durable construction – Metal-reinforced housing adds durability for demanding jobsite use.
Specifications
| Specifications and Details | |
|---|---|
| Battery System | M12™ |
| Anvil Size | 1/4 in |
| Anvil Type | Ball Detent |
| Height | 16.57 in |
| Length | 2.83 in |
| Width | 2.24 in |
| Battery Amp Hour | 2.5 Ah |
| Brand Model Compatibility | M12 |
| Brushless Motor | Yes |
| FUEL™ | Yes |
| Kit Type | Non-Kit |
| Motor Type | POWERSTATE™ Brushless |
| Weight | 2.18 lb |
| ONE-KEY™ Enabled | No |
| Warranty | 5 Year Tool |
| Weight Excluding Battery | 1.8 lb |
| Speed | 550 RPM |
| Maximum Torque | Up to 45 ft-lbs |
