| SKU:
4115-22

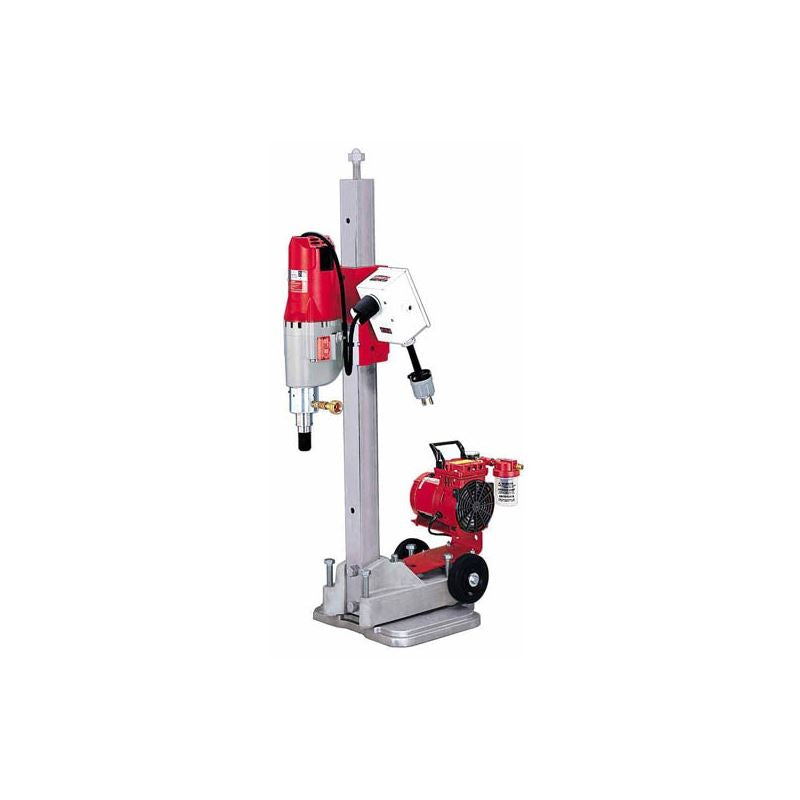

Milwaukee 4115-22 Diamond Coring Rig with Small Base Stand, Vac-U-Rig Kit, Meter Box and Diamond Coring Motor
$2,899.00 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Earn [points_amount] when you buy this item.
Milwaukee 4115-22 Diamond Coring Rig with Small Base Stand, Vac-U-Rig Kit, Meter Box and Diamond Coring Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
What's Included
- (1) Diamond Coring Small Base Stand (4115)
- (1) Diamond Coring Motor
- (1) Meter Box
- (1) Small Base Stand
- (1) Vac-U-Rig Kit
Overview
This contractor series small base stand features a cast aluminum base with 4 leveling screws for fast accurate leveling adjustment. The durable precision-ground 2-1/2 in. steel column is 43-1/2 in. high and has a universal motor adapter plate. The reversible feed handle helps the
operator use the unit from either side. Model 4115-22 comes with model 4096 coring motor, Vac-U-Rig kit as well as a meter box. The Vac-U-Rig assembly uses a vacuum pump to apply suction to a large pad mounted on the bottom of the rig. This aids in stability when coring holes.
Specifications
| Weight | 111.5 lbs |
|---|---|
| Tool Warranty | 5 Years |
| Amps | 20 |
| Spindle | 1-1/4"-7 |
| Max HP | 4.8 |
| Motor Protection | Clutch |
| Plug Type | L5-20P |
| Suggested Dia in Med Aggregate | 6"-10" / 2"-6" |
| Angle Drilling | No |
| Meter Box | Yes |
| Vac Base and Pump | Yes |
| Wheels | Yes |
| Height | 43-1/2" |
features:
Comes with 4096 diamond coring motor
cast aluminum base with four leveling screws for fast accurate leveling adjustment
durable precision-ground 2-1/2 in. steel column, 43-1/2 in. high.
rear mounted rack and pinion feed.
Specifications
| Power Source | Electric |
|---|---|
| Product Type | Core Drill |
| Amperage | 20 Amps |
