| SKU:
SDB3164

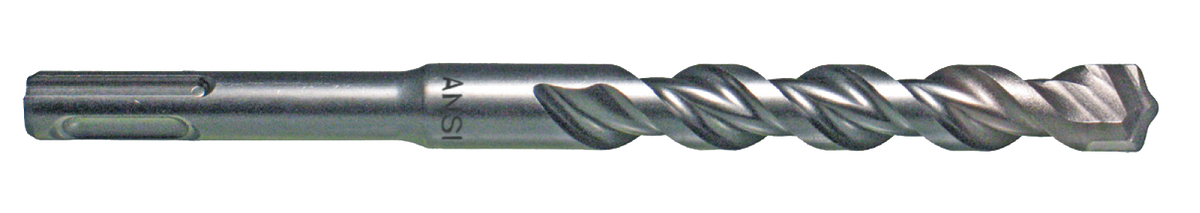

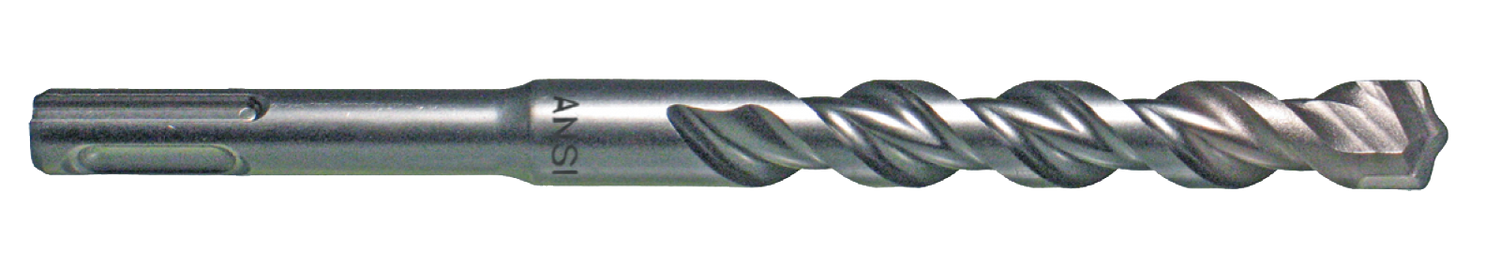

UCAN SDB3164 3/16" x 4-1/4" SDS-PLUS DRILL BIT - 25 PACK
UCAN SDB3164 3/16" x 4-1/4" SDS-PLUS DRILL BIT - 25 PACK is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
UCAN SDB3164 3/16" x 4-1/4" SDS-PLUS DRILL BIT - 25 PACK
UCAN SDB3164 SDS-PLUS hammer drill bits — 3/16" (5 mm) diameter, 4-1/4" overall length with 2-1/4" usable length — sold as a 25-pack. These bits are built for rotary hammer use with an SDS Plus connection.
The bits feature a dynamic, chisel-shaped carbide drill point that rapidly penetrates material and a patented multi-flute spiral that channels drilling dust out of the hole. The product is described as exhibiting excellent speed, performance and endurance.
Designed for drilling in concrete, stone, block, masonry and brickwork, the dimensions and usable length make the bits suitable for common shallow drilling tasks in those substrates.

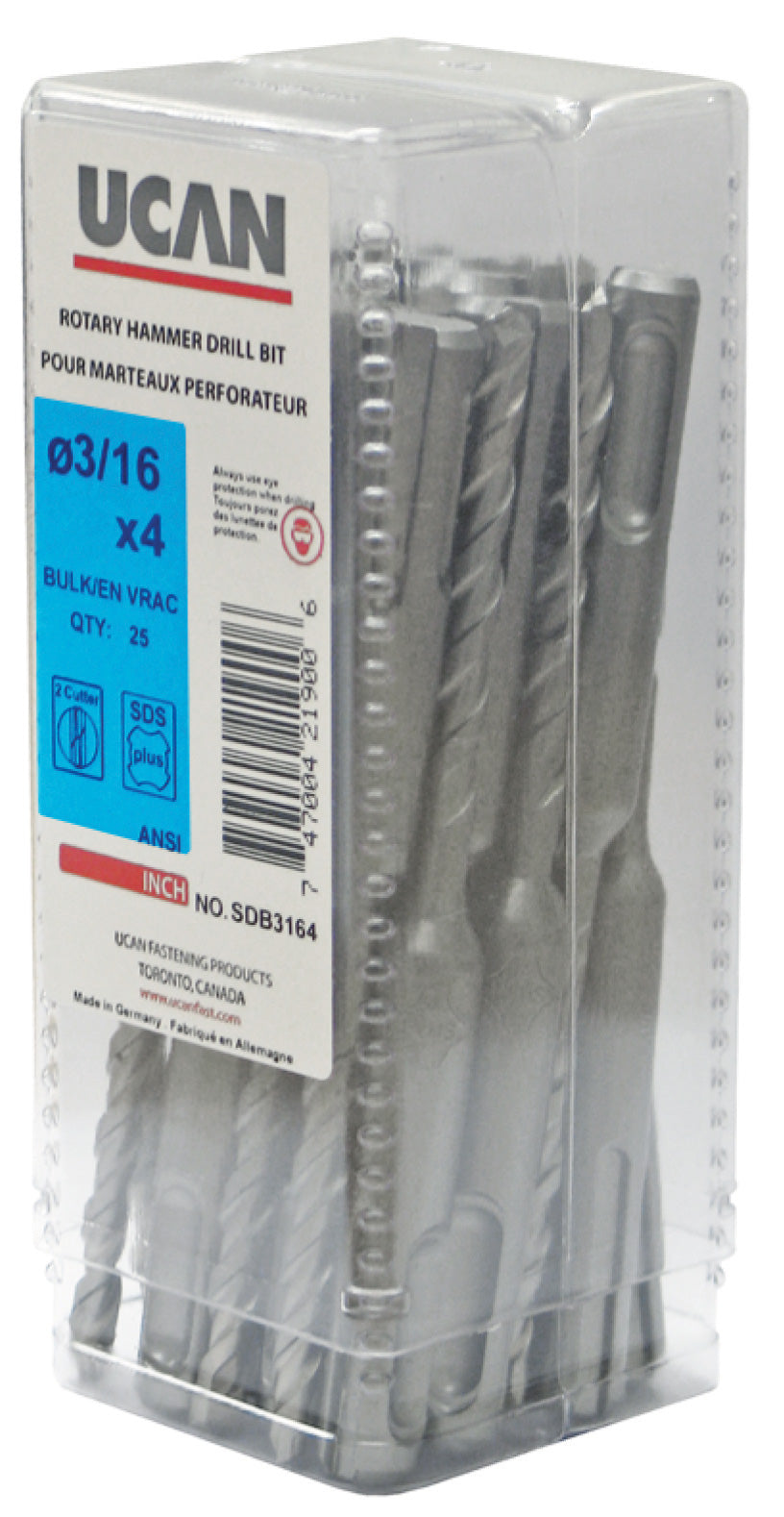

Packaged as 25 pieces, this set provides multiple replacement bits for jobsite use and repetitive drilling applications.
Key specifications
- Diameter (in): 3/16 ANSI
- Diameter (mm): 5
- Length (inches) - Overall: 4-1/4
- Pkg Qty: 25
- SDS Plus design – Engineered for SDS-PLUS hammer drill systems for quick bit changes and secure retention.
- 3/16" (5 mm) diameter – Consistent hole size for repeatable small-diameter drilling tasks.
- Chisel-shaped carbide drill point – Dynamic chisel tip rapidly penetrates material to speed initial bite and drilling progress.
- Patented multi-flute spiral – Channels drilling dust out of the hole to maintain drilling efficiency.
- Speed, performance and endurance – Product is described as exhibiting excellent speed, performance and endurance for repeated use.
- Overall and usable length – 4-1/4" overall length with 2-1/4" usable length indicates available drilling depth per bit.
- Pack quantity – Includes 25 pieces to keep a steady supply of replacement bits on the jobsite.
- Application materials – Designed specifically for concrete, stone, block, masonry and brickwork drilling.
Specifications
| Specifications and Details | |
|---|---|
| Diameter (in) | 3/16 ANSI |
| Diameter (mm) | 5 |
| Length (inches) - Overall | 4-1/4 |
| Length (inches) - Usable | 2-1/4 |
| Pkg Qty | 25 |
