| SKU:
05020178001

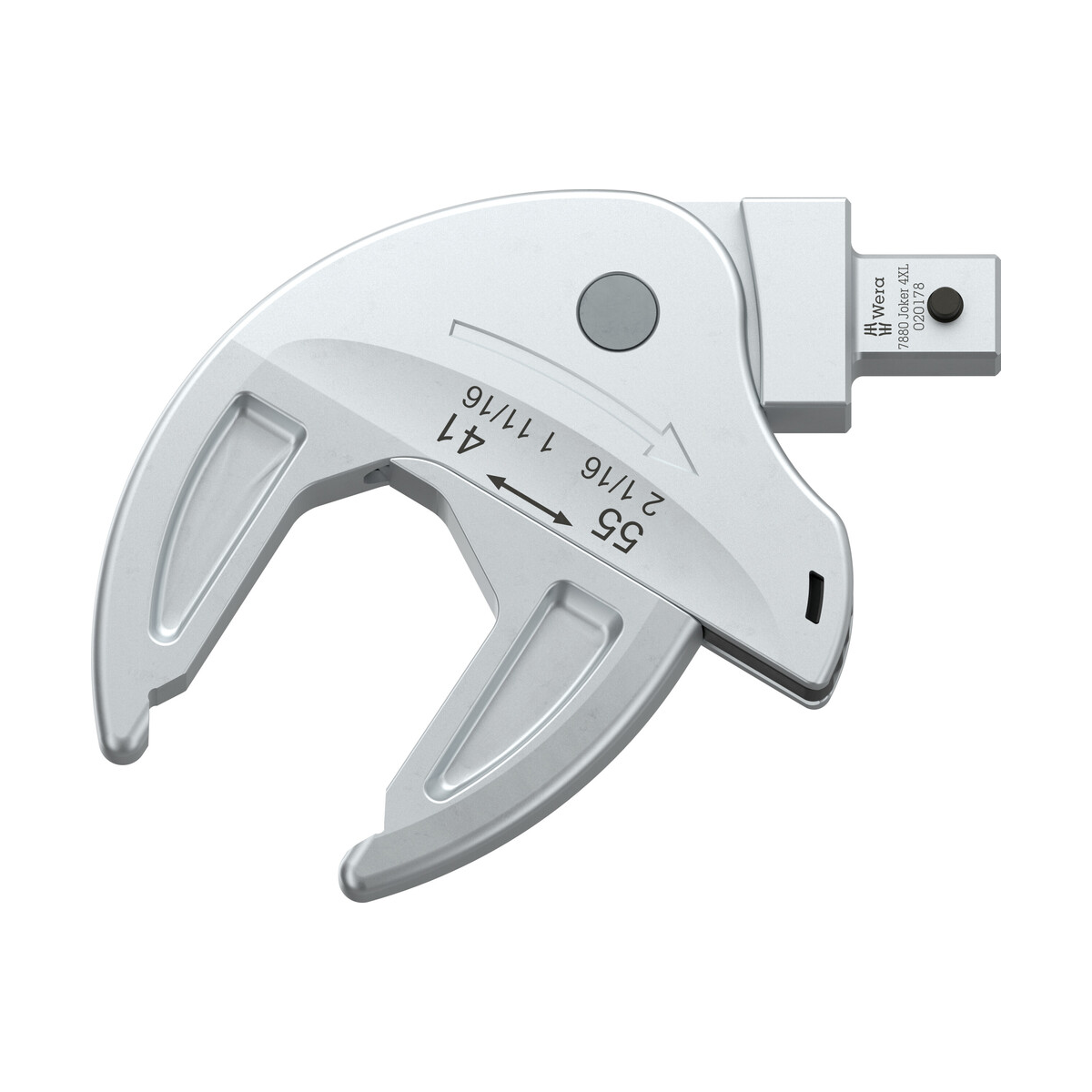

WERA 7880 Joker 4XL Self-Setting Insert Spanner for Wrench Sizes 41-55 mm, 14x18 mm
WERA 7880 Joker 4XL Self-Setting Insert Spanner for Wrench Sizes 41-55 mm, 14x18 mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
WERA 7880 Joker 4XL Self-Setting Insert Spanner for Wrench Sizes 41...
The Wera 7880 Joker 4XL Self-Setting Insert Spanner (05020178001) is designed for use with torque wrenches from Wera's Click-Torque X and XP series with a 14 × 18 mm mounting. Covering hexagonal screw heads and bolts from 41 to 55 mm, including intermediate sizes, the tool is suitable for the assembly and disassembly of large fittings in plumbing, heating and ventilation applications.
The Joker 4XL features automatically and continuously self-adjusting parallel jaws that adapt to the required fastener size when the tool is placed onto a hexagonal bolt or screw head. Its integrated lever mechanism securely clamps the fastener between the jaws, helping reduce slipping and damage. The smooth, parallel jaw surfaces distribute force across the fastener rather than concentrating it at the corners.
Mechanical ratchet functionality allows continuous screwdriving without repeatedly removing the spanner from the fastener. Corner-width rectangular prisms in the jaws provide a return angle of just 30°. The insert also features a pin lock for secure attachment and rapid tool changes, along with chrome-vanadium steel construction for high-load applications.
A laser-engraved, abrasion-resistant QR code provides access to Wera's Torque Advisor. By scanning the appropriate tool QR codes and entering the required torque, the online tool calculates a corrected torque setting for the torque wrench and insert combination without manual formulas.
What's Included
- 1 × Wera 7880 Joker 4XL Self-Setting Insert Spanner, 14 × 18 mm mounting, 41–55 mm / 1 11/16"–2 1/16" capacity, 151 mm length (05020178001)
- Self-Setting Parallel Jaws – Automatically and continuously adjust to hexagonal screw heads and bolts from 41 to 55 mm, including intermediate sizes.
- Metric and Imperial Compatibility – Covers fastener sizes of 41–55 mm and 1 11/16"–2 1/16".
- Mechanical Ratchet Function – Allows continuous screwdriving without removing the spanner from the fastener.
- 30° Return Angle – Corner-width rectangular prisms in the jaw allow a return angle of only 30°.
- Secure Self-Gripping Design – Integrated lever mechanism clamps the hexagonal screw head or bolt between the jaws.
- Smooth Parallel Jaws – Help prevent rounding of nuts and screw heads by reducing force transmission over fastener corners.
- 14 × 18 mm Insert Drive – Designed for compatible Wera Click-Torque X and XP series torque wrenches.
- Torque Advisor QR Code – Laser-engraved, abrasion-resistant QR code provides access to an online tool for calculating corrected torque settings.
- Pin Lock Connection – Allows secure tool attachment and rapid insert changes.
- Chrome-Vanadium Steel – Construction suitable for high loads.
Specifications
| Specification | Details |
|---|---|
| Brand | Wera |
| Part Number | 05020178001 |
| Article Number | 7880 Joker 4XL |
| Product Type | Self-Setting Insert Spanner |
| Mounting | 14 × 18 mm |
| Metric Wrench Size Range | 41–55 mm |
| Imperial Wrench Size Range | 1 11/16"–2 1/16" |
| Intermediate Sizes | Continuously Self-Setting |
| Compatible Torque Wrench Series | Click-Torque X and XP (14 × 18 mm Mounting) |
| Jaw Design | Parallel, Smooth, Self-Adjusting |
| Gripping Mechanism | Integrated Lever Mechanism |
| Ratchet Function | Mechanical |
| Return Angle | 30° |
| Tool Locking | Pin Lock |
| Material | Chrome-Vanadium Steel |
| Torque Advisor | Laser-Engraved, Abrasion-Resistant QR Code |
| Tool Length | 151 mm |
| Listed Size | 170 × 120 × 19 mm |
| Weight | 996 g |
| Country of Origin | CZ (Czech Republic) |
| EAN | 4013288237026 |
