| SKU:
05006634001
WERA Kraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Basic 1
WERA Kraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Basic 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
WERA Kraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Bas...

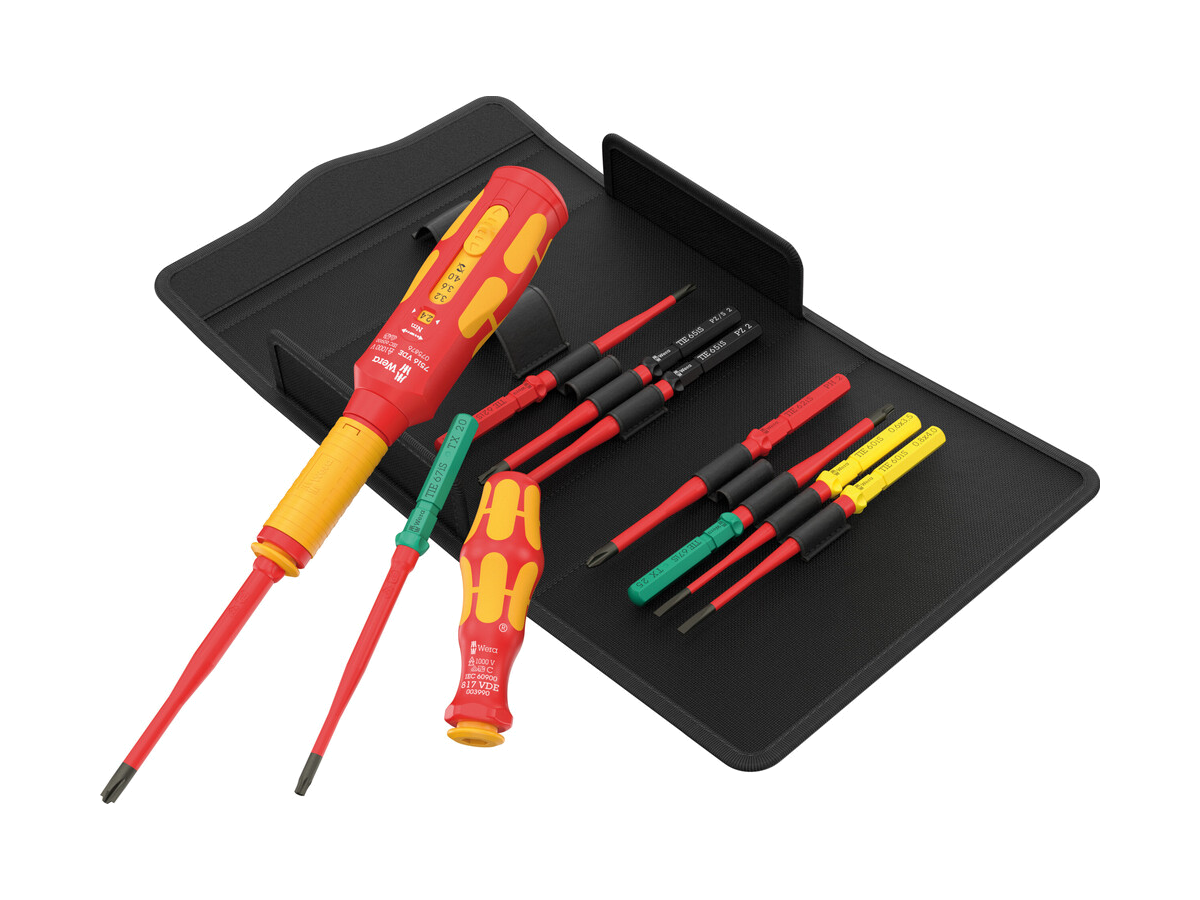

The Wera Kraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Basic 1 (05006634001) is an 11-piece tool set for switch cabinet couplings, featuring a 7516 VDE Safe-Torque Speed torque screwdriver, an 817 VDE blade-holding handle, and nine interchangeable VDE blades. The 7516 VDE torque screwdriver features five selectable tightening torque values of 2.4, 2.8, 3.2, 3.6, and 4.0 Nm, adjustable using a slide switch. Its slip-over torque mechanism prevents unintentional application of excessive torque, providing audible and tactile feedback when the selected torque is reached. A Torque Lock function allows tightening and loosening without torque limitation. The nine 157 mm VDE interchangeable blades feature Wera's Take it easy tool finder with colour coding by profile and laser-engraved size markings. Their reduced blade diameter, with integrated protective insulation, provides access to recessed screws and spring elements. Each Kraftform Kompakt VDE set is individually tested at 10,000 volts in accordance with IEC 60900 for working at the maximum permitted voltage of 1,000 volts. The set comes in a robust textile box for storage and transport.
Includes:
- 1 × 7516 VDE Safe-Torque Speed Torque Screwdriver – 05075876001
- 1 × 817 VDE Blade-Holding Handle – 05003990001
- 1 × PH2 VDE Blade, 157 mm – 05006513001
- 1 × PZ2 VDE Blade, 157 mm – 05006527001
- 1 × PH/S #1 VDE Blade, 157 mm – 05006516001
- 1 × PH/S #2 VDE Blade, 157 mm – 05006517001
- 1 × PZ/S #1 VDE Blade, 157 mm – 05006530001
- 1 × TX20 VDE Blade, 157 mm – 05006541001
- 1 × TX25 VDE Blade, 157 mm – 05006542001
- 1 × Slotted 0.6 × 3.5 mm VDE Blade, 157 mm – 05006506001
- 1 × Slotted 0.8 × 4.0 mm VDE Blade, 157 mm – 05006507001
- 1 × Textile Storage Box
- 1 × Hook-and-Loop Fastener Strip, 120 × 50 mm
- 11-Piece Tool Set – Includes one 7516 VDE Safe-Torque Speed torque screwdriver, one 817 VDE blade-holding handle, and nine VDE interchangeable blades.
- Five Selectable Torque Values – 2.4, 2.8, 3.2, 3.6, and 4.0 Nm, quickly adjustable using a slide switch.
- Slip-Over Torque Mechanism – Prevents unintentional application of excessive torque during clockwise and counterclockwise operation.
- Audible and Tactile Feedback – Signals when the selected tightening torque is reached.
- Torque Lock Function – Allows tightening and loosening without torque limitation.
- IEC 60900 Tested – Individually tested at 10,000 volts for work at the maximum permitted voltage of 1,000 volts.
- Interchangeable Blade System – Allows rapid exchange of blades for different applications.
- Take it easy Tool Finder – Colour coding by profile and laser-engraved size markings.
- Reduced Blade Diameter – Provides access to recessed screws and spring elements.
- Textile Storage Box – Provides organized storage and convenient transport.
Specifications
| Specification | Details |
|---|---|
| Brand | Wera |
| Part Number | 05006634001 |
| Product Name | Kraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Basic 1 |
| Number of Pieces | 11 |
| Torque Screwdriver | 7516 VDE Safe-Torque Speed |
| Selectable Torque Values | 2.4 / 2.8 / 3.2 / 3.6 / 4.0 Nm |
| Torque Accuracy | ±10% |
| Torque Lock | Yes |
| Torque Operation | Clockwise / Counterclockwise |
| VDE Standard | IEC 60900 |
| Individual Test Voltage | 10,000 V |
| Maximum Permitted Working Voltage | 1,000 V |
| Interchangeable Blade Length | 157 mm |
| Torque Screwdriver Length | 192 mm |
| Blade-Holding Handle Length | 98 mm |
| Size | 235 × 165 × 65 mm |
| Weight | 877 g |
| Country of Origin | CZ (Czech Republic) |
| EAN | 4013288238368 |
