WERA TOOLS  |  SKU: 05006635001  |  Barcode: 4013288238634

WERA Kraftform Kompakt VDE Safe-Torque Speed switch cabinet set Basic 2

$248.99 CAD
Shipping calculated at checkout.
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
DESCRIPTION:

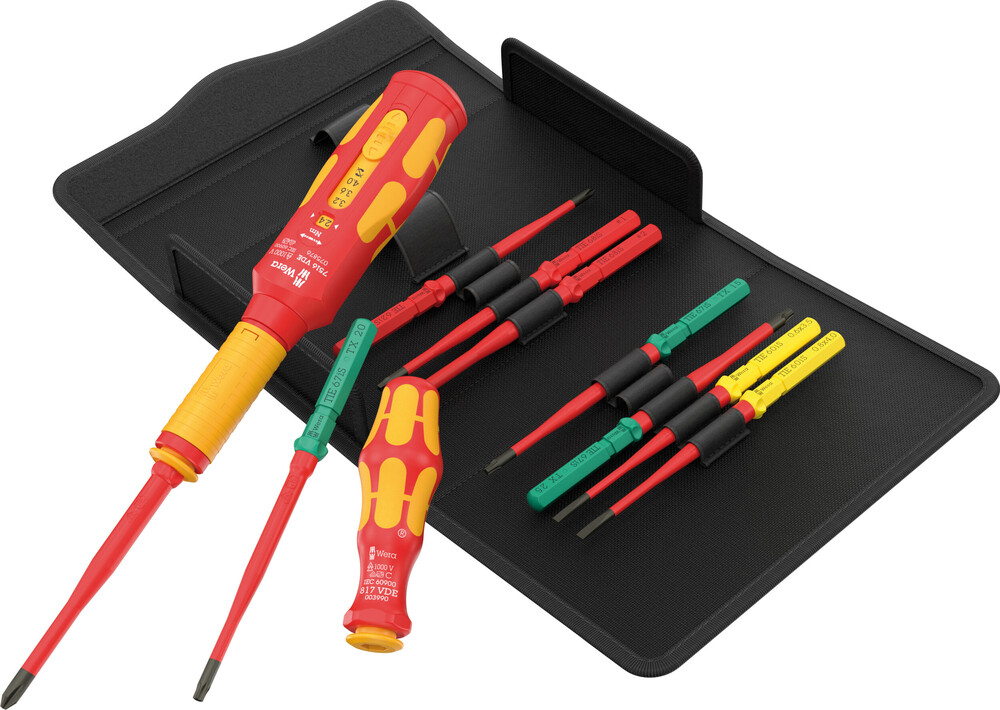

The Wera Kraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Basic 2 (05006635001) is an 11-piece tool set for switch cabinet couplings, including blades for square-head screws. The set contains one 7516 VDE Safe-Torque Speed torque screwdriver, one 817 VDE blade-holding handle, and nine VDE interchangeable blades.

The 7516 VDE torque screwdriver features five selectable tightening torque values of 2.4, 2.8, 3.2, 3.6, and 4.0 Nm, quickly adjustable using a slide switch. Its slip-over torque mechanism prevents unintentional application of excessive torque during clockwise and counterclockwise operation. An audible and tactile signal indicates when the selected torque is reached. The Torque Lock function provides a fixed position for tightening and loosening without torque limitation.

The nine 157 mm VDE interchangeable blades feature Wera's Take it easy tool finder, with colour coding by profile and laser-engraved size indications. Their reduced blade diameter (iS), with integrated protective insulation, allows access to recessed screws and spring elements. The screwdriver and blade-holding handle are designed solely for Wera VDE blades.

Each Kraftform Kompakt VDE set is individually tested at 10,000 volts in accordance with IEC 60900 for work at the maximum permitted voltage of 1,000 volts. The set is supplied in a robust textile box for storage and transport.

What's Included

  • 1 × 7516 VDE Safe-Torque Speed Torque Screwdriver – 05075876001
  • 1 × 817 VDE Blade-Holding Handle – 05003990001
  • 1 × PH1 VDE Blade, 157 mm – 05006512001
  • 1 × PH2 VDE Blade, 157 mm – 05006513001
  • 1 × Slotted 0.6 × 3.5 mm VDE Blade, 157 mm – 05006506001
  • 1 × Slotted 0.8 × 4.0 mm VDE Blade, 157 mm – 05006507001
  • 1 × TORX TX15 VDE Blade, 157 mm – 05006540001
  • 1 × TORX TX20 VDE Blade, 157 mm – 05006541001
  • 1 × TORX TX25 VDE Blade, 157 mm – 05006542001
  • 1 × Square-Head #1 VDE Blade, 157 mm – 05006545001
  • 1 × Square-Head #2 VDE Blade, 157 mm – 05006546001
  • 1 × Textile Storage Box
  • 1 × Hook-and-Loop Fastener Strip, 120 × 50 mm

FEATURES:
    • 11-Piece Switch Cabinet Tool Set – Includes the 7516 VDE torque screwdriver, 817 VDE blade-holding handle, and nine interchangeable VDE blades, including square-head profiles.
    • Five Torque Settings – Select 2.4, 2.8, 3.2, 3.6, or 4.0 Nm using the slide switch.
    • Safe-Torque Slip-Over Mechanism – Prevents unintentional application of excessive torque during clockwise and counterclockwise operation.
    • Audible and Tactile Signal – Indicates when the selected torque has been reached.
    • Torque Lock Function – Allows tightening and loosening without torque limitation.
    • VDE Insulated Tools – Individually tested at 10,000 volts in accordance with IEC 60900 for work up to 1,000 volts.
    • Take it easy Tool Finder – Colour-coded blade profiles with laser-engraved size indications.
    • Reduced-Diameter Blades – Slim insulated blade shafts provide access to recessed screws and spring elements.
    • Interchangeable Blade System – Enables rapid blade changes for different applications.
    • Textile Storage Box – Provides organized storage and convenient transport.

Specifications

SpecificationDetails
BrandWera
Part Number05006635001
Product NameKraftform Kompakt VDE Safe-Torque Speed Switch Cabinet Set Basic 2
Pieces11
Torque Screwdriver7516 VDE Safe-Torque Speed
Torque Settings2.4 / 2.8 / 3.2 / 3.6 / 4.0 Nm
Torque Accuracy±10%
Torque LockYes
Torque OperationClockwise / Counterclockwise
Blade-Holding Handle817 VDE Kraftform
Interchangeable Blades9
Blade Length157 mm
Torque Screwdriver Length192 mm
Blade-Holding Handle Length98 mm
Individual Test Voltage10,000 V
Maximum Permitted Working Voltage1,000 V
VDE StandardIEC 60900
Size235 × 165 × 65 mm
Weight860 g
Country of OriginCZ
EAN4013288238634
