WERA Kraftform Kompakt Zyklop Mini 2 set 1
WERA Kraftform Kompakt Zyklop Mini 2 set 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
WERA Kraftform Kompakt Zyklop Mini 2 set 1

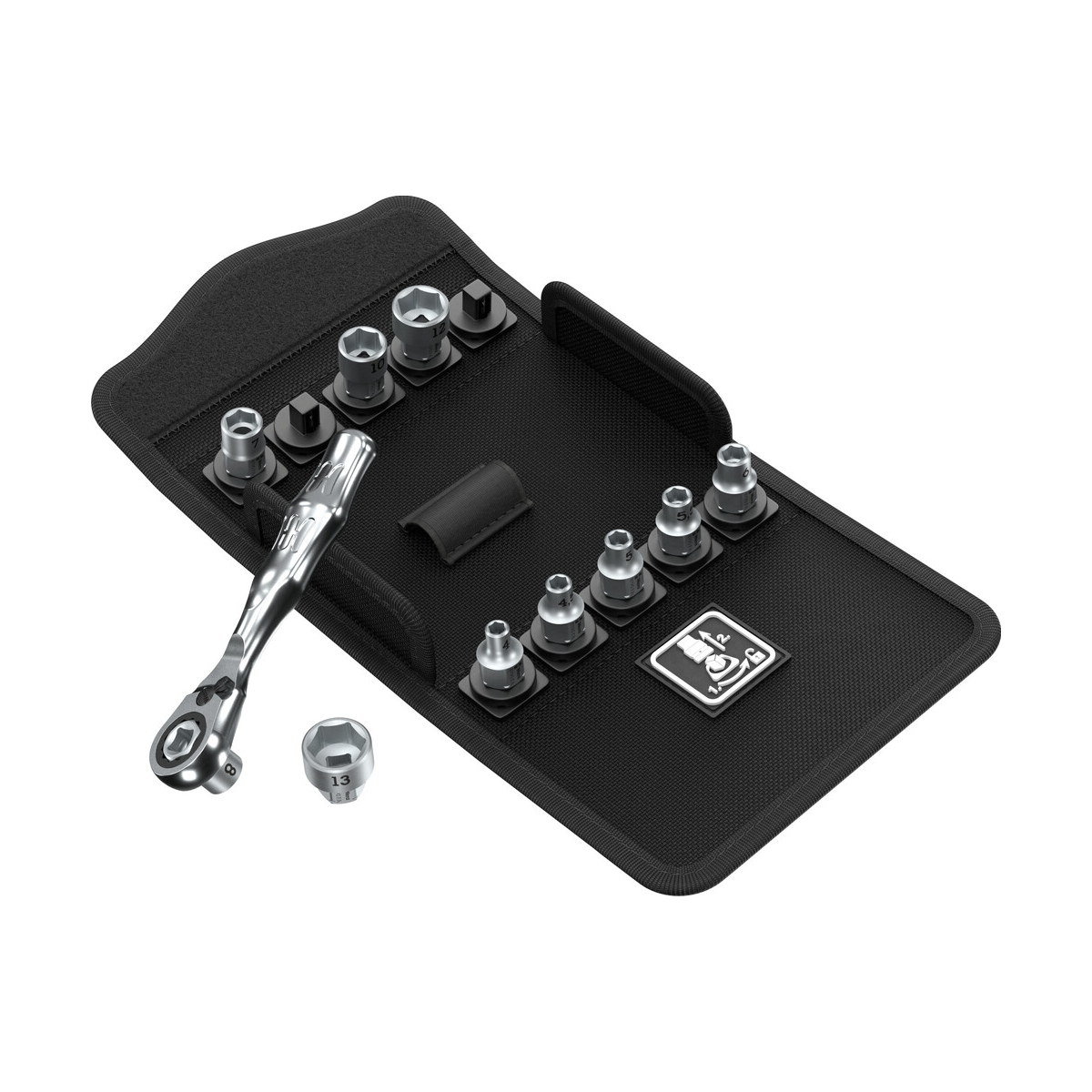

The Wera Kraftform Kompakt Zyklop Mini 2 Set 1 (05135021001) is an 11-piece ratchet and socket set featuring one Zyklop Mini 8005 ratchet and ten 8790 FA special sockets. Designed for screw connections in confined spaces, the compact ratchet allows direct mounting of the low-profile sockets, each measuring just 18 mm in height.
The Zyklop Mini 2 ratchet features a drop-forged solid steel design with a fine-toothed ratchet mechanism consisting of 60 teeth and a 6° return angle. The robust construction allows torque transfer of up to 65 Nm. A reversing lever enables switching between clockwise and counterclockwise rotation and can be operated with one hand.
The included 8790 FA special sockets feature a 1/4" and Hex 11 hexagon drive, ball stop groove and chrome-vanadium construction. The hollow design of both the 8005 ratchet head and the 8790 FA sockets allows threaded rods up to M6 to pass completely through the tool during screwdriving, enabling hexagon nuts to be tightened and loosened.
The set is supplied in a textile box with a twist-to-unlock system for secure socket storage and easy removal. The ten included sockets cover sizes from 4 mm to 13 mm.
What's Included
- 1 × 8005 Zyklop Mini 2 Ratchet, 107 mm (05003660001)
- 1 × 8790 FA Socket, 4 mm × 18 mm (05003665001)
- 1 × 8790 FA Socket, 4.5 mm × 18 mm (05003666001)
- 1 × 8790 FA Socket, 5 mm × 18 mm (05003667001)
- 1 × 8790 FA Socket, 5.5 mm × 18 mm (05003668001)
- 1 × 8790 FA Socket, 6 mm × 18 mm (05003669001)
- 1 × 8790 FA Socket, 7 mm × 18 mm (05003670001)
- 1 × 8790 FA Socket, 8 mm × 18 mm (05003675001)
- 1 × 8790 FA Socket, 10 mm × 18 mm (05003690001)
- 1 × 8790 FA Socket, 12 mm × 18 mm (05003684001)
- 1 × 8790 FA Socket, 13 mm × 18 mm (05003685001)
- 1 × Textile Storage Box with Twist-to-Unlock System
- 1 × Hook-and-Loop Fastener Strip, 120 × 50 mm
- 11-Piece Ratchet & Socket Set – Includes one Zyklop Mini 8005 ratchet and ten 8790 FA special sockets.
- 60-Tooth Ratchet Mechanism – Fine-toothed mechanism provides a small 6° return angle for working in confined spaces.
- Drop-Forged Solid Steel Construction – Robust ratchet design allows torque transfer of up to 65 Nm.
- Low-Profile Sockets – 8790 FA special sockets measure just 18 mm in height for screw connections where space is limited.
- Reversible Ratchet – Reversing lever allows switching between clockwise and counterclockwise operation with one hand.
- Hollow Ratchet & Socket Design – Allows threaded rods up to M6 to pass completely through the tool.
- Chrome-Vanadium Sockets – Includes ten 8790 FA special sockets with 1/4" and Hex 11 hexagon drive and ball stop groove.
- Socket Size Range – Includes 4, 4.5, 5, 5.5, 6, 7, 8, 10, 12 and 13 mm sockets.
- Twist-to-Unlock Storage – Textile box provides secure socket storage and easy removal.
Specifications
| Specification | Details |
|---|---|
| Brand | Wera |
| Part Number | 05135021001 |
| Product Name | Kraftform Kompakt Zyklop Mini 2 Set 1 |
| Number of Pieces | 11 |
| Ratchet Model | 8005 Zyklop Mini 2 |
| Ratchet Length | 107 mm |
| Ratchet Construction | Drop-Forged Solid Steel |
| Ratchet Teeth | 60 |
| Return Angle | 6° |
| Torque Transfer | Up to 65 Nm |
| Rotation | Clockwise / Counterclockwise |
| Reversing Mechanism | Reversing Lever |
| Socket Model | 8790 FA Zyklop |
| Number of Sockets | 10 |
| Socket Sizes | 4 / 4.5 / 5 / 5.5 / 6 / 7 / 8 / 10 / 12 / 13 mm |
| Socket Height | 18 mm |
| Socket Drive | 1/4" and Hex 11 Hexagon Drive |
| Socket Material | Chrome-Vanadium |
| Socket Retention | Ball Stop Groove |
| Threaded Rod Clearance | Up to M6 |
| Storage | Textile Box with Twist-to-Unlock System |
| Size | 140 × 95 × 50 mm |
| Weight | 752 g |
| Country of Origin | TW (Taiwan) |
| EAN | 4013288238375 |
